Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2019-11-09 22:48:52.8 |
| Date & Time (Local) | 1398/8/19 02:18:52.8 |

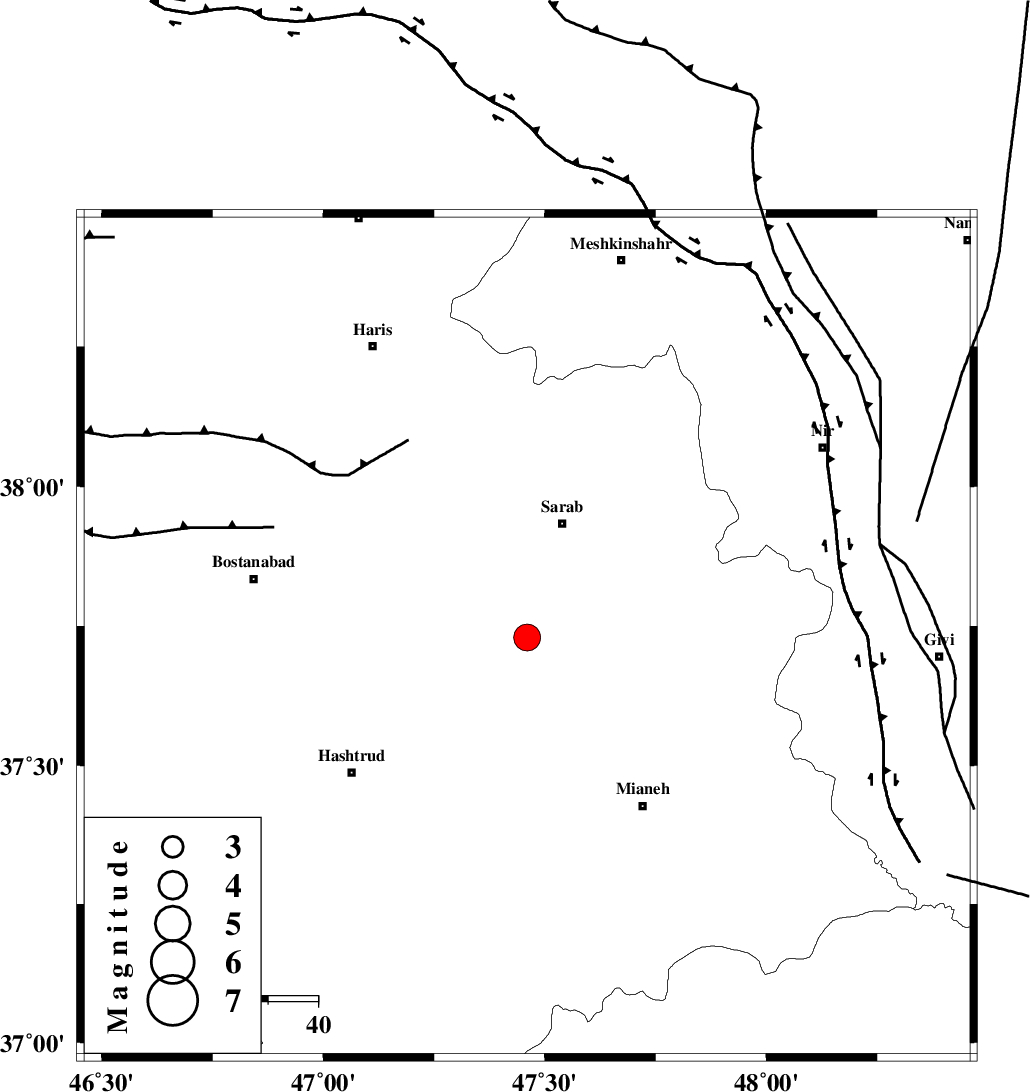

| Location | Lat:37.73 Lon: 47.46 |
| Region | Azarbaijan Sharghi Province, 24 km South of Sarab |
Nearest Cities |
|
| 13 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 14 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 16 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 18 km South of Abarghan, Azarbaijan Sharghi Province | |
| 18 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 76 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148006 | IIEES SC | GRMI | Z | 1100 | 1 | 2019-11-09 22:49:36 | 2019-11-10 12:19:00 | n |
| 148007 | IIEES SC | AZR | Z | 3200 | 1 | 2019-11-09 22:49:40 | 2019-11-10 12:19:00 | n |
| 148008 | IIEES SC | ZNJK | Z | 4.9 | 1 | 2019-11-09 22:49:52 | 2019-11-10 12:19:00 | n |
| 148009 | IIEES SC | MAHB | Z | 610 | 1 | 2019-11-09 22:49:52 | 2019-11-10 12:19:00 | n |
| 148010 | IIEES SC | SRSL | Z | 300 | 1 | 2019-11-09 22:50:09 | 2019-11-10 12:19:00 | n |
| 148011 | IIEES SC | SNGE | Z | 41 | 1 | 2019-11-09 22:49:57 | 2019-11-10 12:19:00 | n |
| 148012 | IIEES SC | QABG | Z | 44 | 1 | 2019-11-09 22:50:22 | 2019-11-10 12:19:00 | n |
| 148013 | IIEES SC | THKV | Z | 150 | 1 | 2019-11-09 22:50:39 | 2019-11-10 12:19:00 | n |
| 148014 | IIEES SC | ASAO | Z | 41 | 1 | 2019-11-09 22:51:03 | 2019-11-10 12:19:00 | n |
| 148015 | IIEES SC | GHVR | Z | 66 | 1 | 2019-11-09 22:51:26 | 2019-11-10 12:19:00 | n |
| 148016 | IIEES SC | KHMZ | Z | 20 | 1 | 2019-11-09 22:51:26 | 2019-11-10 12:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-09 22:49:13 | 0 | y | 122 | 18 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-09 22:49:14 | 0 | y | 133 | 268 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-09 22:49:17 | -1.4 | y | 155 | 137 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-09 22:49:23 | -0.3 | y | 189 | 236 | |||
| IIEES SC | SRSL | N | IP | I | 2019-11-09 22:49:31 | 0.2 | y | 244 | 227 | |||
| IIEES SC | SNGE | N | IP | I | 2019-11-09 22:49:37 | 0.7 | y | 289 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-09 22:49:36 | -0.6 | y | 289 | 140 | |||
| IIEES SC | THKV | N | IP | I | 2019-11-09 22:49:46 | 0.5 | y | 366 | 123 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-09 22:49:52 | -0.2 | y | 422 | 147 | |||
| IIEES SC | GHVR | N | IP | I | 2019-11-09 22:50:02 | 0.1 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-09 22:50:03 | 1.2 | y | 500 | 153 | |||
