Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-10 06:15:26.6 |
| Date & Time (Local) | 1398/8/19 09:45:26.6 |
| Location | Lat:37.72 Lon: 47.5 |
| Region | Azarbaijan Sharghi Province, 24 km South of Sarab |
Nearest Cities |
|
| 13 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 16 km North West of Eshlaq, Azarbaijan Sharghi Province | |
| 17 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 20 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

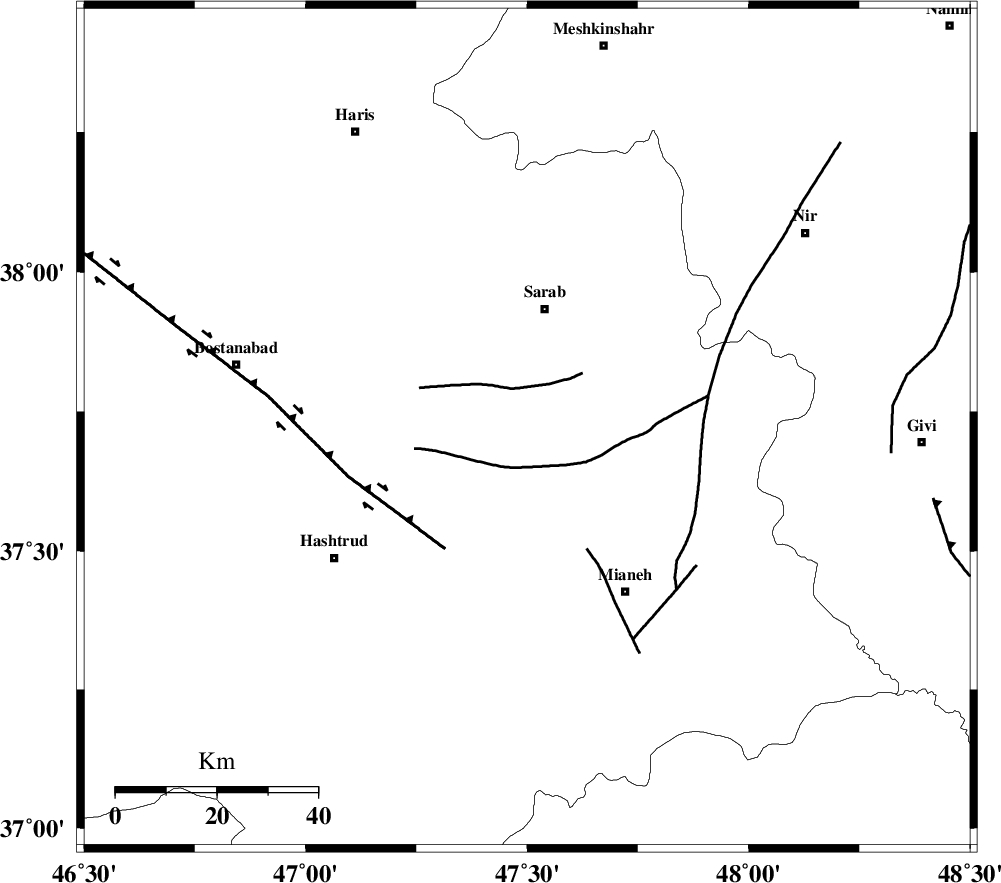

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 29 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 72 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148071 | IIEES SC | GRMI | Z | 430 | 1 | 2019-11-10 06:16:10 | 2019-11-11 09:40:00 | n |
| 148072 | IIEES SC | AZR | Z | 1400 | 1 | 2019-11-10 06:16:16 | 2019-11-11 09:40:00 | n |
| 148073 | IIEES SC | ZNJK | Z | 4.1 | 1 | 2019-11-10 06:16:02 | 2019-11-11 09:40:00 | n |
| 148074 | IIEES SC | MAHB | Z | 280 | 1 | 2019-11-10 06:16:25 | 2019-11-11 09:40:00 | n |
| 148075 | IIEES SC | SRSL | Z | 140 | 1 | 2019-11-10 06:16:40 | 2019-11-11 09:40:00 | n |
| 148076 | IIEES SC | QABG | Z | 19 | 1 | 2019-11-10 06:16:56 | 2019-11-11 09:40:00 | n |
| 148077 | IIEES SC | SNGE | Z | 15 | 1 | 2019-11-10 06:17:14 | 2019-11-11 09:40:00 | n |
| 148078 | IIEES SC | THKV | Z | 58 | 1 | 2019-11-10 06:17:15 | 2019-11-11 09:40:00 | n |
| 148079 | IIEES SC | ASAO | Z | 200 | 1 | 2019-11-10 06:18:23 | 2019-11-11 09:40:00 | n |
| 148080 | IIEES SC | KHMZ | Z | 97 | 1 | 2019-11-10 06:18:12 | 2019-11-11 09:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-10 06:15:47 | 0.1 | y | 122 | 16 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-10 06:15:48 | -0.2 | y | 133 | 268 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-10 06:15:51 | -0.9 | y | 155 | 138 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-10 06:15:57 | -0.5 | y | 189 | 237 | |||
| IIEES SC | SRSL | N | IP | I | 2019-11-10 06:16:06 | 0.8 | y | 244 | 228 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-10 06:16:10 | -0.2 | y | 289 | 140 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-10 06:16:11 | 0.5 | y | 289 | 183 | |||
| IIEES SC | THKV | N | IP | I | 2019-11-10 06:16:17 | -2.2 | y | 366 | 124 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-10 06:16:26 | 0.2 | y | 422 | 147 | |||
| IIEES SC | KHMZ | N | IP | I | 2019-11-10 06:16:37 | 1.6 | y | 489 | 153 | |||
