Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2019-11-10 13:53:53.2 |
| Date & Time (Local) | 1398/8/19 17:23:53.2 |

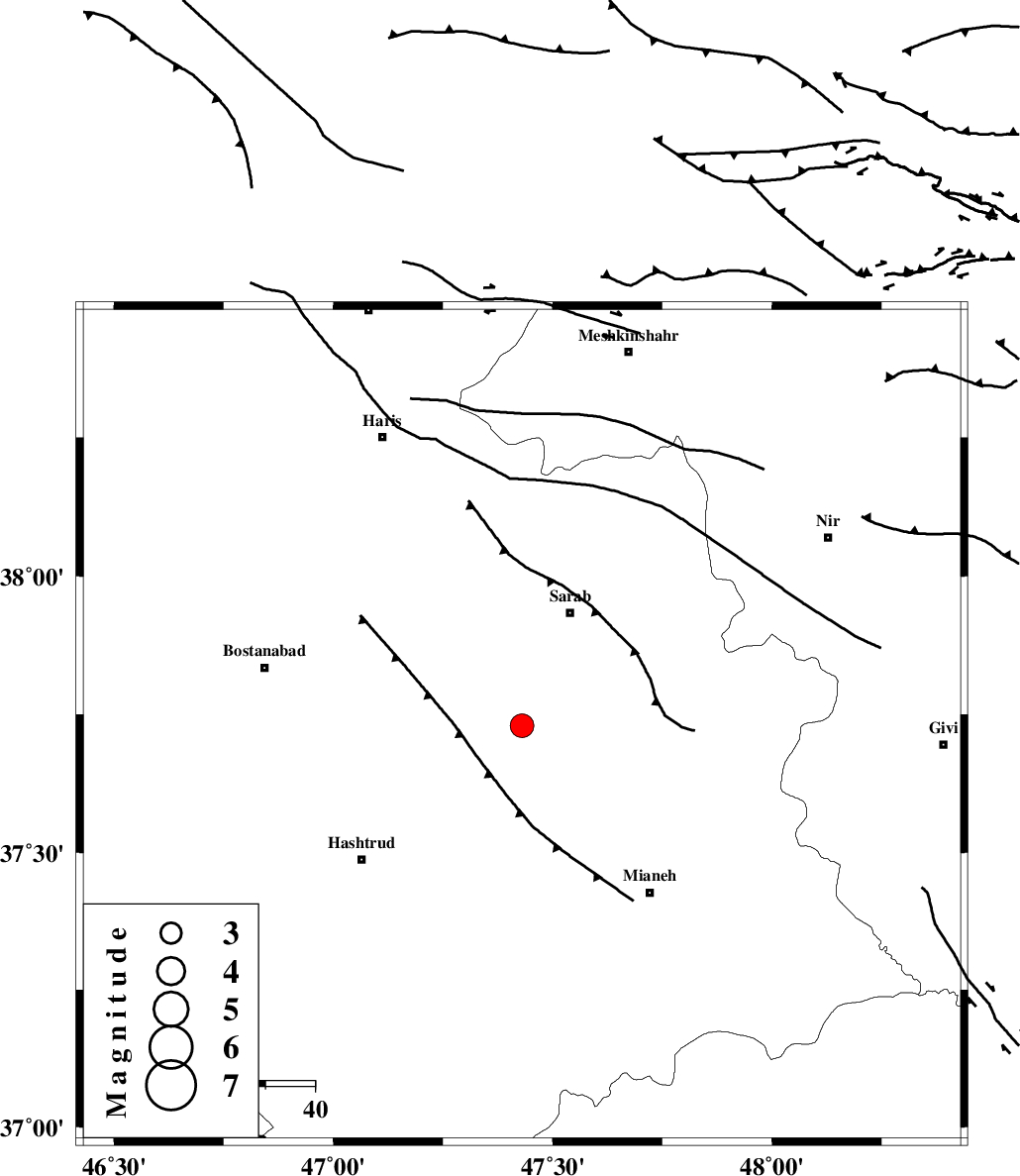

| Location | Lat:37.73 Lon: 47.43 |
| Region | Azarbaijan Sharghi Province, 25 km South-West of Sarab |
Nearest Cities |
|
| 14 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 15 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 16 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 16 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| 17 km South of Abarghan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 27 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 79 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148081 | IIEES SC | GRMI | Z | 260 | 1 | 2019-11-10 13:54:37 | 2019-11-11 09:05:00 | n |
| 148082 | IIEES SC | AZR | Z | 1300 | 1 | 2019-11-10 13:54:43 | 2019-11-11 09:05:00 | n |
| 148083 | IIEES SC | MAHB | Z | 160 | 1 | 2019-11-10 13:54:50 | 2019-11-11 09:05:00 | n |
| 148084 | IIEES SC | SRSL | Z | 83 | 1 | 2019-11-10 13:55:05 | 2019-11-11 09:05:00 | n |
| 148085 | IIEES SC | SNGE | Z | 13 | 1 | 2019-11-10 13:55:51 | 2019-11-11 09:05:00 | n |
| 148086 | IIEES SC | THKV | Z | 27 | 1 | 2019-11-10 13:55:39 | 2019-11-11 09:05:00 | n |
| 148087 | IIEES SC | ASAO | Z | 12 | 1 | 2019-11-10 13:56:03 | 2019-11-11 09:05:00 | n |
| 148088 | IIEES SC | GHVR | Z | 28 | 1 | 2019-11-10 13:56:32 | 2019-11-11 09:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-10 13:54:14 | 0 | y | 122 | 19 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-10 13:54:14 | -0.2 | y | 122 | 267 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-10 13:54:23 | -0.3 | y | 189 | 235 | |||
| IIEES SC | SRSL | N | IP | I | 2019-11-10 13:54:32 | 0.9 | y | 244 | 227 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-10 13:54:38 | 0.6 | y | 289 | 181 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-10 13:54:37 | -0.8 | y | 300 | 139 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-10 13:54:47 | 0.5 | y | 366 | 123 | |||
| IIEES SC | ASAO | N | IP | I | 2019-11-10 13:54:53 | -0.3 | y | 422 | 146 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-10 13:55:02 | -0.3 | y | 500 | 136 | |||
