Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2019-11-12 23:52:12.1 |
| Date & Time (Local) | 1398/8/22 03:22:12.1 |

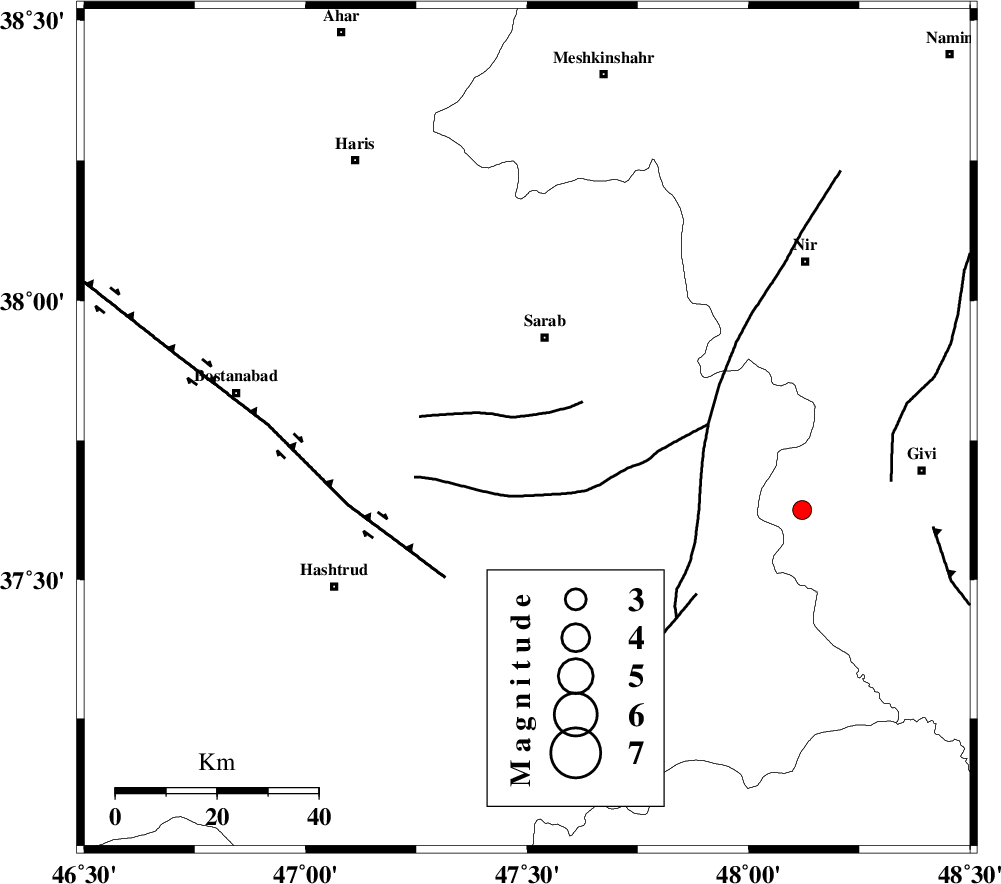

| Location | Lat:37.77 Lon: 47.5 |
| Region | Azarbaijan Sharghi Province, 19 km South of Sarab |
Nearest Cities |
|
| 8 km of Asbforushan, Azarbaijan Sharghi Province | |
| 16 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 19 km South of Sarab, Azarbaijan Sharghi Province | |
| 19 km West of Pataveh, Azarbaijan Sharghi Province | |
| 19 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 34 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 73 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148232 | IIEES SC | GRMI | Z | 80 | 1 | 2019-11-12 23:52:54 | 2019-11-13 08:23:00 | n |
| 148233 | IIEES SC | AZR | Z | 490 | 1 | 2019-11-12 23:53:01 | 2019-11-13 08:23:00 | n |
| 148234 | IIEES SC | ZNJK | Z | 3.7 | 1 | 2019-11-12 23:53:21 | 2019-11-13 08:23:00 | n |
| 148235 | IIEES SC | MAHB | Z | 49 | 1 | 2019-11-12 23:53:10 | 2019-11-13 08:23:00 | n |
| 148236 | IIEES SC | SRSL | Z | 20 | 1 | 2019-11-12 23:53:30 | 2019-11-13 08:23:00 | n |
| 148237 | IIEES SC | SNGE | Z | 34 | 1 | 2019-11-12 23:54:16 | 2019-11-13 08:23:00 | n |
| 148238 | IIEES SC | THKV | Z | 9.1 | 1 | 2019-11-12 23:54:10 | 2019-11-13 08:23:00 | n |
| 148239 | IIEES SC | ASAO | Z | 3.8 | 1 | 2019-11-12 23:53:48 | 2019-11-13 08:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-12 23:52:32 | 0.1 | y | 122 | 17 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-12 23:52:34 | -0.5 | y | 133 | 265 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-12 23:52:38 | -0.6 | y | 166 | 139 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-12 23:52:43 | 0.1 | y | 200 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-12 23:52:51 | 0.3 | y | 255 | 227 | |||
| IIEES SC | QABG | N | IP | I | 2019-11-12 23:52:56 | -0.3 | y | 300 | 141 | |||
| IIEES SC | SNGE | N | IP | I | 2019-11-12 23:52:57 | 0.7 | y | 300 | 183 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-12 23:53:05 | -0.1 | y | 366 | 124 | |||
| IIEES SC | ASAO | N | IP | I | 2019-11-12 23:53:14 | 1.7 | y | 422 | 148 | |||
