Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-15 09:42:00.5 |
| Date & Time (Local) | 1398/8/24 13:12:00.5 |

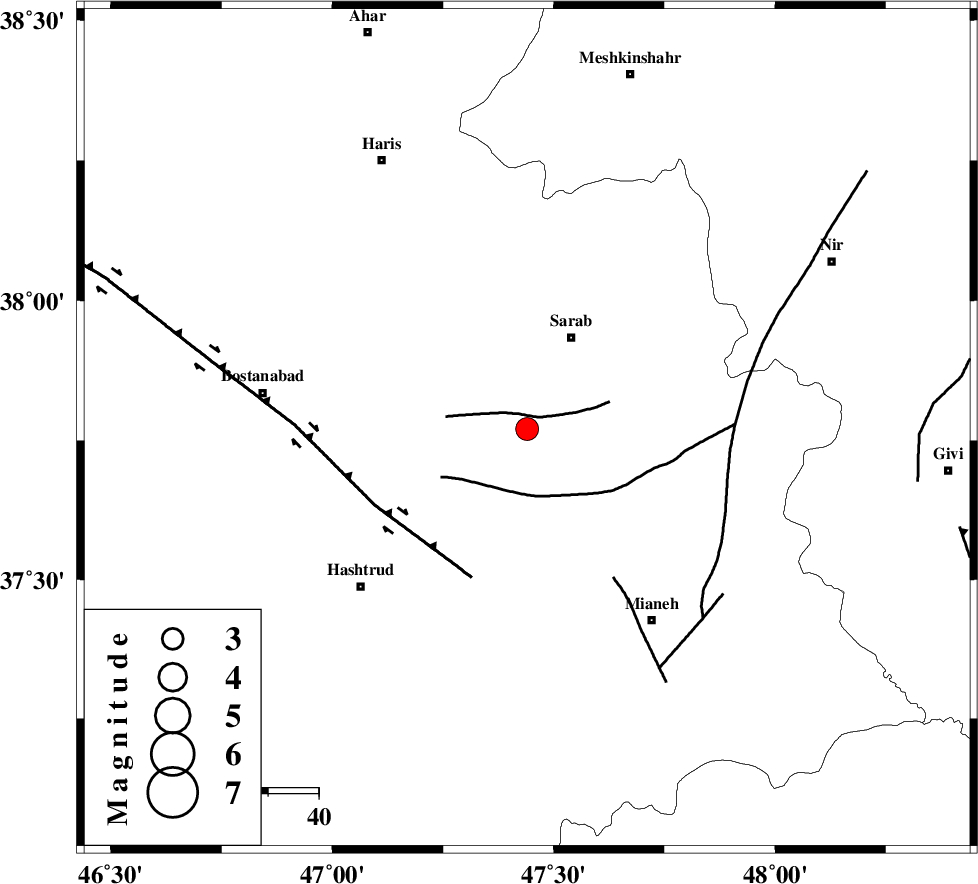

| Location | Lat:37.77 Lon: 47.44 |
| Region | Azarbaijan Sharghi Province, 20 km South-West of Sarab |
Nearest Cities |
|
| 11 km of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km South of Abarghan, Azarbaijan Sharghi Province | |
| 19 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 20 km South West of Sarab, Azarbaijan Sharghi Province | |
| 20 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 32 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 78 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148336 | IIEES SC | AZR | Z | 1000 | 1 | 2019-11-15 09:42:46 | 2019-11-16 09:32:00 | n |
| 148337 | IIEES SC | MAHB | Z | 220 | 1 | 2019-11-15 09:42:56 | 2019-11-16 09:32:00 | n |
| 148338 | IIEES SC | SRSL | Z | 82 | 1 | 2019-11-15 09:43:18 | 2019-11-16 09:32:00 | n |
| 148339 | IIEES SC | SNGE | Z | 35 | 1 | 2019-11-15 09:42:44 | 2019-11-16 09:32:00 | n |
| 148340 | IIEES SC | QABG | Z | 15 | 1 | 2019-11-15 09:43:29 | 2019-11-16 09:32:00 | n |
| 148341 | IIEES SC | THKV | Z | 48 | 1 | 2019-11-15 09:43:48 | 2019-11-16 09:32:00 | n |
| 148342 | IIEES SC | CHTH | Z | 14 | 1 | 2019-11-15 09:43:11 | 2019-11-16 09:32:00 | n |
| 148343 | IIEES SC | ASAO | Z | 13 | 1 | 2019-11-15 09:44:11 | 2019-11-16 09:32:00 | n |
| 148344 | IIEES SC | GHVR | Z | 33 | 1 | 2019-11-15 09:44:25 | 2019-11-16 09:32:00 | n |
| 148345 | IIEES SC | KHMZ | Z | 6.4 | 1 | 2019-11-15 09:44:37 | 2019-11-16 09:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | Z | IP | I | 2019-11-15 09:42:21 | 0 | y | 133 | 265 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-15 09:42:31 | 0.1 | y | 189 | 234 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-15 09:42:39 | 0.1 | y | 244 | 226 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-15 09:42:45 | -0.1 | y | 300 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-15 09:42:44 | -0.6 | y | 300 | 140 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-15 09:42:53 | -0.2 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-15 09:42:56 | 0.3 | y | 389 | 122 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-15 09:43:00 | -1.2 | y | 422 | 147 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-15 09:43:11 | 1.4 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-15 09:43:11 | 1 | y | 500 | 153 | |||
