Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2019-11-16 11:07:54.6 |
| Date & Time (Local) | 1398/8/25 14:37:54.6 |
| Location | Lat:37.78 Lon: 47.46 |
| Region | Azarbaijan Sharghi Province, 19 km South of Sarab |
Nearest Cities |
|
| 9 km of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km of Abarghan, Azarbaijan Sharghi Province | |
| 19 km South of Sarab, Azarbaijan Sharghi Province | |
| 20 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 21 km West of Pataveh, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |

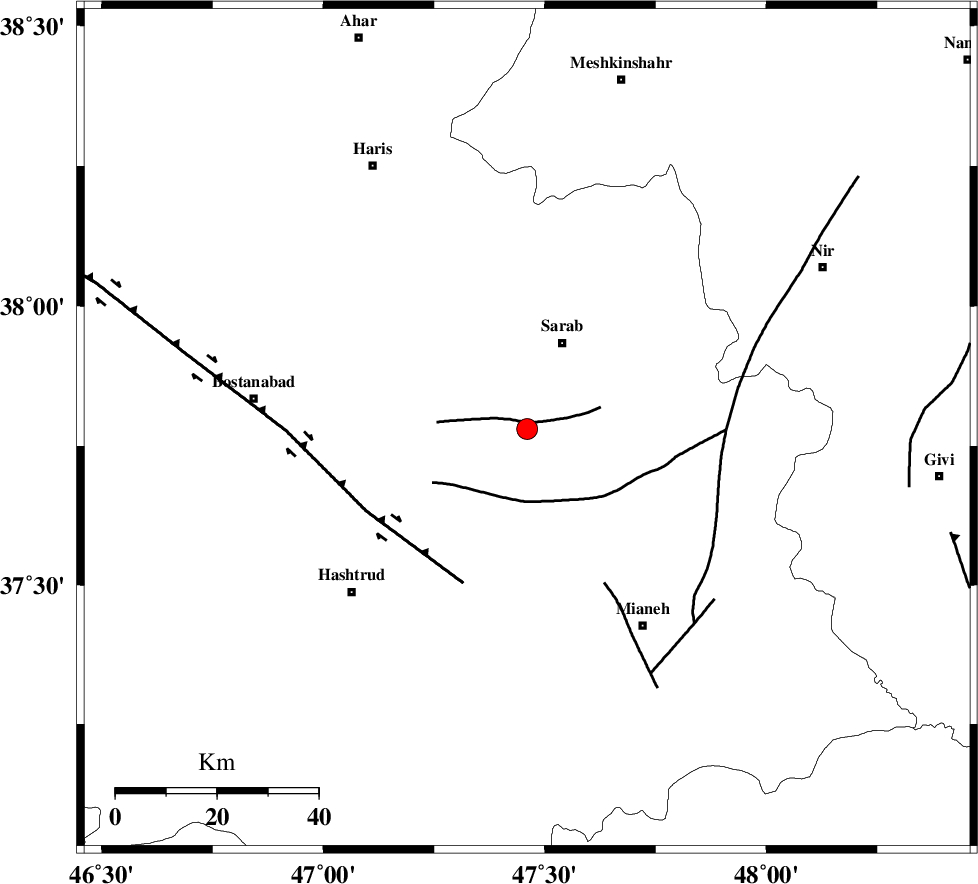

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 2 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 33 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 76 km | |
| Number of Phases | 8 |
| RMS | 0.8 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 24 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148425 | IIEES SC | GRMI | Z | 130 | 1 | 2019-11-16 11:08:37 | 2019-11-17 08:01:00 | n |
| 148426 | IIEES SC | AZR | Z | 570 | 1 | 2019-11-16 11:08:40 | 2019-11-17 08:01:00 | n |
| 148427 | IIEES SC | ZNJK | Z | 4.6 | 1 | 2019-11-16 11:08:18 | 2019-11-17 08:01:00 | n |
| 148428 | IIEES SC | MAHB | Z | 61 | 1 | 2019-11-16 11:08:55 | 2019-11-17 08:01:00 | n |
| 148429 | IIEES SC | SRSL | Z | 71 | 1 | 2019-11-16 11:08:42 | 2019-11-17 08:01:00 | n |
| 148430 | IIEES SC | SNGE | Z | 22 | 1 | 2019-11-16 11:09:21 | 2019-11-17 08:01:00 | n |
| 148431 | IIEES SC | ASAO | Z | 7.7 | 1 | 2019-11-16 11:10:00 | 2019-11-17 08:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-16 11:08:15 | 0.2 | y | 122 | 18 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-16 11:08:16 | -0.8 | y | 133 | 265 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-16 11:08:20 | -1.2 | y | 166 | 138 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-16 11:08:27 | 0.9 | y | 189 | 234 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-16 11:08:35 | 1.2 | y | 255 | 226 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-16 11:08:39 | -0.1 | y | 300 | 140 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-16 11:08:41 | 1.7 | y | 300 | 182 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-16 11:08:55 | -0.8 | y | 422 | 147 | |||
