Event Specification
Magnitude |
4.4 |
| Date & Time (UTC) | 2019-11-18 00:38:39.0 |
| Date & Time (Local) | 1398/8/27 04:08:39.0 |

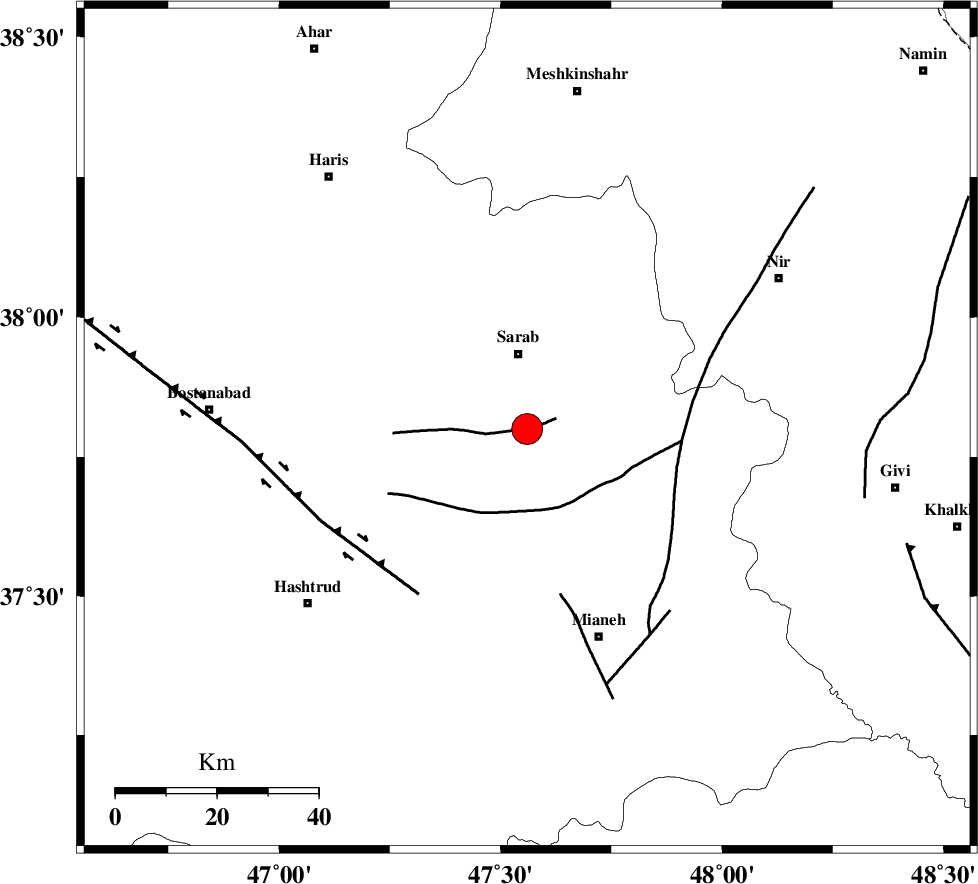

| Location | Lat:37.8 Lon: 47.56 |
| Region | Azarbaijan Sharghi Province, 15 km South of Sarab |
Nearest Cities |
|
| 5 km of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km West of Pataveh, Azarbaijan Sharghi Province | |
| 15 km South of Sarab, Azarbaijan Sharghi Province | |
| 18 km East of Abarghan, Azarbaijan Sharghi Province | |
| 22 km North of Eshlaq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 39 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 67 km | |
| Number of Phases | 20 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148454 | IIEES SC | AZR | Z | 9600 | 1 | 2019-11-18 00:39:29 | 2019-11-18 08:17:00 | n |
| 148455 | IIEES SC | ZNJK | Z | 3.9 | 1 | 2019-11-18 00:40:16 | 2019-11-18 08:17:00 | n |
| 148456 | IIEES SC | MAHB | Z | 3100 | 1 | 2019-11-18 00:39:36 | 2019-11-18 08:17:00 | n |
| 148457 | IIEES SC | SRSL | Z | 1200 | 1 | 2019-11-18 00:39:56 | 2019-11-18 08:17:00 | n |
| 148458 | IIEES SC | SNGE | Z | 400 | 1 | 2019-11-18 00:40:05 | 2019-11-18 08:17:00 | n |
| 148459 | IIEES SC | THKV | Z | 1100 | 1 | 2019-11-18 00:40:25 | 2019-11-18 08:17:00 | n |
| 148460 | IIEES SC | CHTH | Z | 1.7 | 1 | 2019-11-18 00:41:03 | 2019-11-18 08:17:00 | n |
| 148461 | IIEES SC | ASAO | Z | 200 | 1 | 2019-11-18 00:40:47 | 2019-11-18 08:17:00 | n |
| 148462 | IIEES SC | DAMV | Z | 4.9 | 1 | 2019-11-18 00:41:56 | 2019-11-18 08:17:00 | n |
| 148463 | IIEES SC | GHVR | Z | 560 | 1 | 2019-11-18 00:41:06 | 2019-11-18 08:17:00 | n |
| 148464 | IIEES SC | KHMZ | Z | 97 | 1 | 2019-11-18 00:41:10 | 2019-11-18 08:17:00 | n |
| 148465 | IIEES SC | GTMR | Z | 48 | 1 | 2019-11-18 00:42:00 | 2019-11-18 08:17:00 | n |
| 148466 | IIEES SC | GTMR | Z | 45 | 0.57 | 2019-11-18 00:40:17 | 2019-11-18 08:17:00 | n |
| 148467 | IIEES SC | MRVT | Z | 76 | 1 | 2019-11-18 00:40:58 | 2019-11-18 08:17:00 | n |
| 148468 | IIEES SC | SHRO | Z | 2.3 | 1 | 2019-11-18 00:41:15 | 2019-11-18 08:17:00 | n |
| 148469 | IIEES SC | SHRO | Z | 13 | 0.71 | 2019-11-18 00:40:34 | 2019-11-18 08:17:00 | n |
| 148470 | IIEES SC | YZKH | Z | 19 | 1 | 2019-11-18 00:42:59 | 2019-11-18 08:17:00 | n |
| 148471 | IIEES SC | YZKH | Z | 22 | 0.49 | 2019-11-18 00:40:44 | 2019-11-18 08:17:00 | n |
| 148472 | IIEES SC | TABS | Z | 9.3 | 0.69 | 2019-11-18 00:41:18 | 2019-11-18 08:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-18 00:38:59 | 0.9 | n | 4 | 111 | 15 | ||
| IIEES SC | AZR | Z | IP | I | 2019-11-18 00:39:02 | -0.1 | y | 144 | 264 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-18 00:39:04 | -1 | y | 155 | 141 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-18 00:39:10 | -0.7 | y | 200 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-18 00:39:19 | 0.8 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-18 00:39:22 | -0.6 | y | 300 | 142 | |||
| IIEES SC | SNGE | N | IP | I | 2019-11-18 00:39:24 | 0.2 | y | 300 | 184 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-18 00:39:31 | -0.1 | y | 366 | 125 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-18 00:39:34 | 0.5 | y | 378 | 123 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-18 00:39:39 | -0.2 | y | 422 | 148 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-18 00:39:45 | 0.7 | y | 467 | 121 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-18 00:39:48 | -0.1 | y | 500 | 138 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-18 00:39:50 | 0.9 | y | 500 | 154 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-11-18 00:40:02 | 0 | y | 611 | 167 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-11-18 00:40:18 | -1.3 | y | 756 | 91 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-11-18 00:40:24 | 0.6 | y | 778 | 105 | |||
| IIEES SC | YZKH | N | IP | I | 2019-11-18 00:40:35 | -0.3 | y | 878 | 133 | |||
| IIEES SC | TABS | Z | IP | I | 2019-11-18 00:40:49 | 0.5 | y | 978 | 118 | |||
| IIEES SC | MRVT | Z | IVmB_BB | 2019-11-18 00:40:20 | y | 1 | 756 | 91 | ||||
| IIEES SC | YZKH | Z | IVmB_BB | 2019-11-18 00:40:44 | y | 1 | 878 | 133 | ||||
