Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2019-11-19 04:56:11.4 |
| Date & Time (Local) | 1398/8/28 08:26:11.4 |

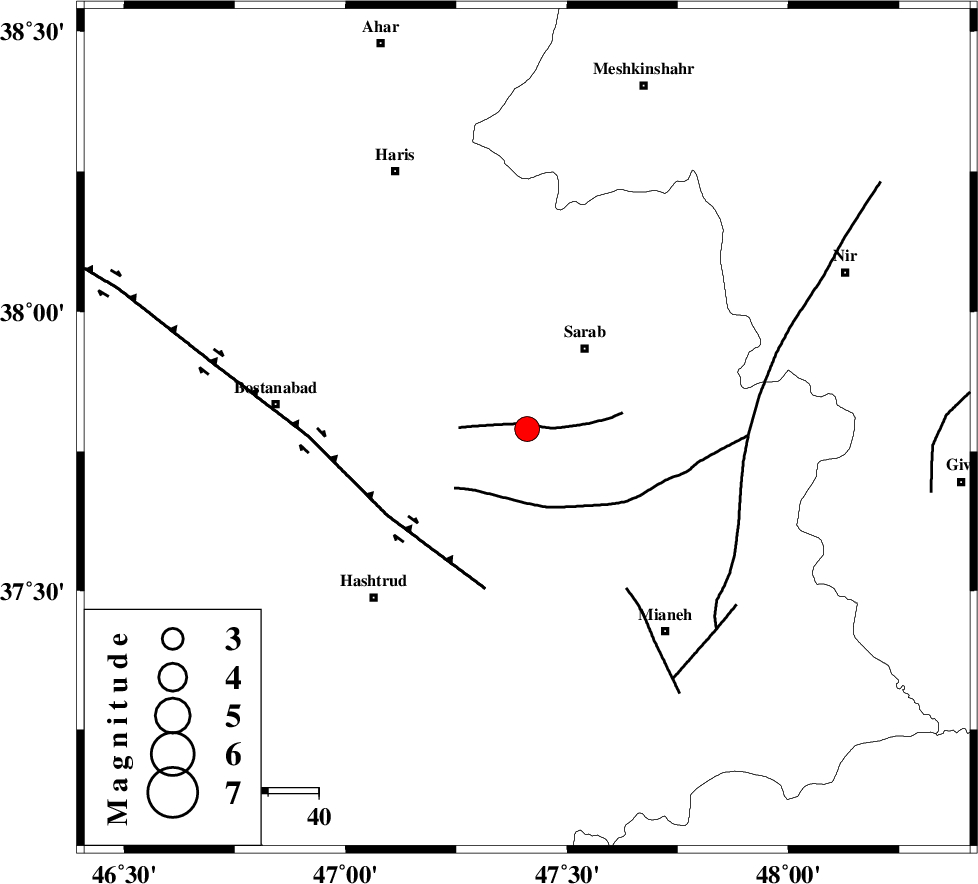

| Location | Lat:37.79 Lon: 47.41 |
| Region | Azarbaijan Sharghi Province, 20 km South-West of Sarab |
Nearest Cities |
|
| 10 km of Abarghan, Azarbaijan Sharghi Province | |
| 12 km West of Asbforushan, Azarbaijan Sharghi Province | |
| 20 km South West of Sarab, Azarbaijan Sharghi Province | |
| 21 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 21 km North of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 33 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 81 km | |
| Number of Phases | 12 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 11 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148540 | IIEES SC | GRMI | Z | 580 | 1 | 2019-11-19 04:56:54 | 2019-11-19 08:47:00 | n |
| 148541 | IIEES SC | ZNJK | Z | 3.8 | 1 | 2019-11-19 04:57:17 | 2019-11-19 08:47:00 | n |
| 148542 | IIEES SC | MAHB | Z | 540 | 1 | 2019-11-19 04:57:12 | 2019-11-19 08:47:00 | n |
| 148543 | IIEES SC | SRSL | Z | 250 | 1 | 2019-11-19 04:57:29 | 2019-11-19 08:47:00 | n |
| 148544 | IIEES SC | SNGE | Z | 55 | 1 | 2019-11-19 04:57:39 | 2019-11-19 08:47:00 | n |
| 148545 | IIEES SC | THKV | Z | 58 | 1 | 2019-11-19 04:58:11 | 2019-11-19 08:47:00 | n |
| 148546 | IIEES SC | ASAO | Z | 20 | 1 | 2019-11-19 04:58:02 | 2019-11-19 08:47:00 | n |
| 148547 | IIEES SC | DAMV | Z | 4.4 | 1 | 2019-11-19 04:58:27 | 2019-11-19 08:47:00 | n |
| 148548 | IIEES SC | GHVR | Z | 52 | 1 | 2019-11-19 04:58:50 | 2019-11-19 08:47:00 | n |
| 148549 | IIEES SC | KHMZ | Z | 13 | 1 | 2019-11-19 04:58:53 | 2019-11-19 08:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-19 04:56:31 | -0.1 | y | 122 | 21 | |||
| IIEES SC | ZNJK | N | IP | I | 2019-11-19 04:56:37 | -1.8 | y | 166 | 138 | |||
| IIEES SC | MAHB | N | IP | I | 2019-11-19 04:56:41 | -0.3 | y | 189 | 233 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-19 04:56:50 | 0.6 | y | 244 | 225 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-19 04:56:56 | 0.2 | y | 300 | 181 | |||
| IIEES SC | QABG | N | IP | I | 2019-11-19 04:56:55 | -1.1 | y | 300 | 140 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-19 04:57:05 | -0.2 | y | 378 | 124 | |||
| IIEES SC | CHTH | N | IP | I | 2019-11-19 04:57:07 | -0.6 | n | 4 | 389 | 122 | ||
| IIEES SC | ASAO | Z | IP | I | 2019-11-19 04:57:11 | -0.8 | y | 433 | 147 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-19 04:57:19 | 1.5 | y | 478 | 120 | |||
| IIEES SC | GHVR | N | IP | I | 2019-11-19 04:57:21 | -0.5 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-19 04:57:22 | 0.7 | y | 500 | 153 | |||
