Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-11-19 13:45:09.3 |
| Date & Time (Local) | 1398/8/28 17:15:09.3 |

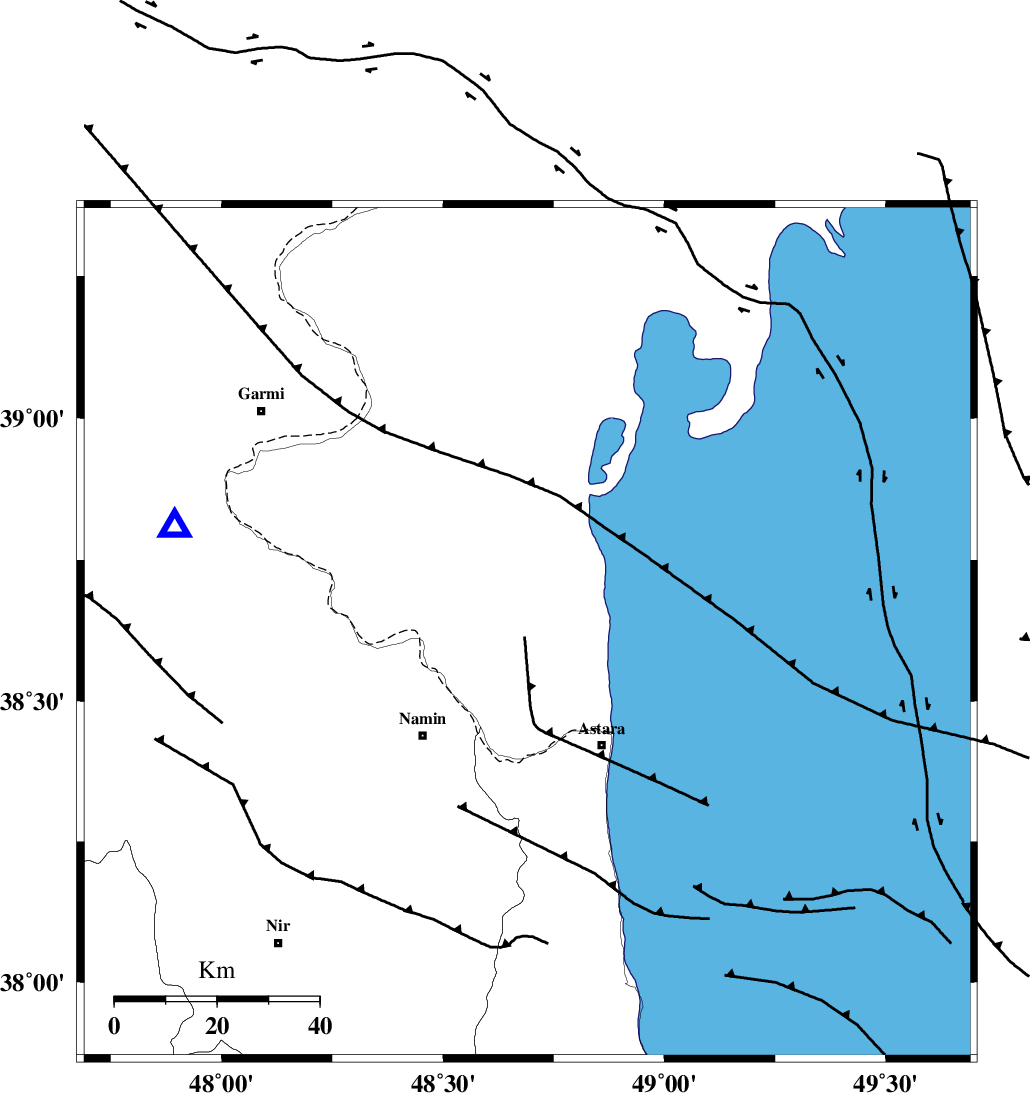

| Location | Lat:38.62 Lon: 48.69 |
| Region | Azerbaijan, 26 km North-West of Astara |
Nearest Cities |
|
| 24 km North East of Anbaran, Ardebil Province | |
| 26 km North West of Astara, Gilan Province | |
| 27 km North of Kiladeh, Gilan Province | |
| 29 km North East of Namin, Ardebil Province | |
| 29 km North East of Khaneh zeinian, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 9 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 46 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 60 km | |
| Number of Phases | 8 |
| RMS | 0.6 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 881 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148577 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2019-11-19 13:46:40 | 2019-11-20 09:42:00 | n |
| 148578 | IIEES SC | AZR | Z | 700 | 1 | 2019-11-19 13:46:32 | 2019-11-20 09:42:00 | n |
| 148579 | IIEES SC | MAHB | Z | 52 | 1 | 2019-11-19 13:46:51 | 2019-11-20 09:42:00 | n |
| 148580 | IIEES SC | THKV | Z | 43 | 1 | 2019-11-19 13:46:43 | 2019-11-20 09:42:00 | n |
| 148581 | IIEES SC | SRSL | Z | 65 | 1 | 2019-11-19 13:47:03 | 2019-11-20 09:42:00 | n |
| 148582 | IIEES SC | SNGE | Z | 17 | 1 | 2019-11-19 13:47:17 | 2019-11-20 09:42:00 | n |
| 148583 | IIEES SC | DAMV | Z | 4 | 1 | 2019-11-19 13:46:59 | 2019-11-20 09:42:00 | n |
| 148584 | IIEES SC | ASAO | Z | 7.9 | 1 | 2019-11-19 13:47:58 | 2019-11-20 09:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2019-11-19 13:45:43 | -0.6 | y | 211 | 180 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-19 13:45:48 | -0.7 | y | 255 | 246 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-19 13:45:59 | 1 | y | 333 | 232 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-19 13:46:01 | 0.1 | y | 355 | 147 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-19 13:46:05 | -0.1 | y | 389 | 227 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-19 13:46:09 | 0.9 | y | 411 | 197 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-19 13:46:12 | 0.2 | y | 444 | 139 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-19 13:46:14 | -0.6 | y | 467 | 165 | |||
