Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2019-11-22 19:24:50.3 |
| Date & Time (Local) | 1398/9/1 22:54:50.3 |

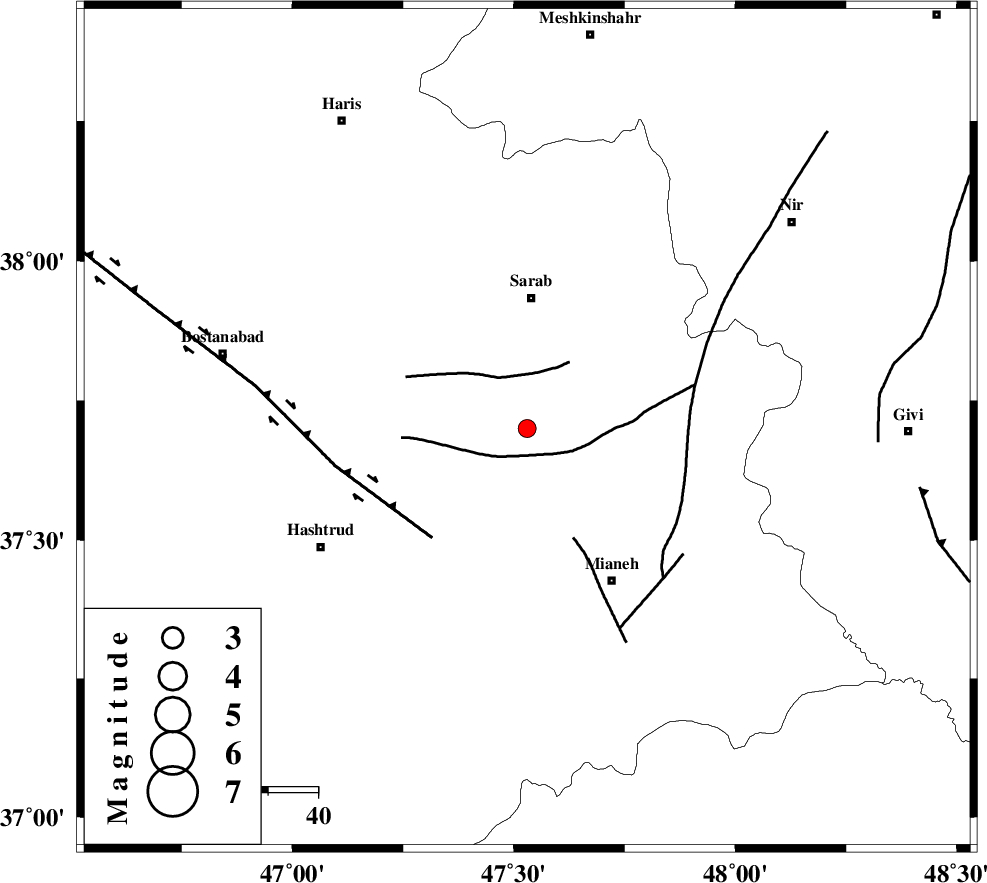

| Location | Lat:37.7 Lon: 47.53 |
| Region | Azarbaijan Sharghi Province, 26 km South of Sarab |
Nearest Cities |
|
| 12 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 13 km North of Eshlaq, Azarbaijan Sharghi Province | |
| 15 km South of Asbforushan, Azarbaijan Sharghi Province | |
| 17 km North East of Torkamanchay, Azarbaijan Sharghi Province | |
| 21 km North East of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 29 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 70 km | |
| Number of Phases | 6 |
| RMS | 0.8 |
| Number of Stations | 6 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 29 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148738 | IIEES SC | GRMI | Z | 77 | 1 | 2019-11-22 19:25:33 | 2019-11-23 11:08:00 | n |
| 148739 | IIEES SC | ZNJK | Z | 3.9 | 1 | 2019-11-22 19:25:26 | 2019-11-23 11:08:00 | n |
| 148740 | IIEES SC | SRSL | Z | 28 | 1 | 2019-11-22 19:26:07 | 2019-11-23 11:08:00 | n |
| 148741 | IIEES SC | SNGE | Z | 27 | 1 | 2019-11-22 19:27:18 | 2019-11-23 11:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2019-11-22 19:25:27 | 0.3 | y | 122 | 15 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-11-22 19:25:11 | -0.5 | y | 122 | 15 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-22 19:25:15 | -0.5 | y | 155 | 138 | |||
| IIEES SC | SRSL | E | IS | I | 2019-11-22 19:25:57 | -1.1 | y | 244 | 229 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-22 19:25:29 | 0.8 | y | 244 | 229 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-22 19:25:35 | 1.2 | y | 289 | 183 | |||
