Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2019-11-26 00:59:58.2 |
| Date & Time (Local) | 1398/9/5 04:29:58.2 |

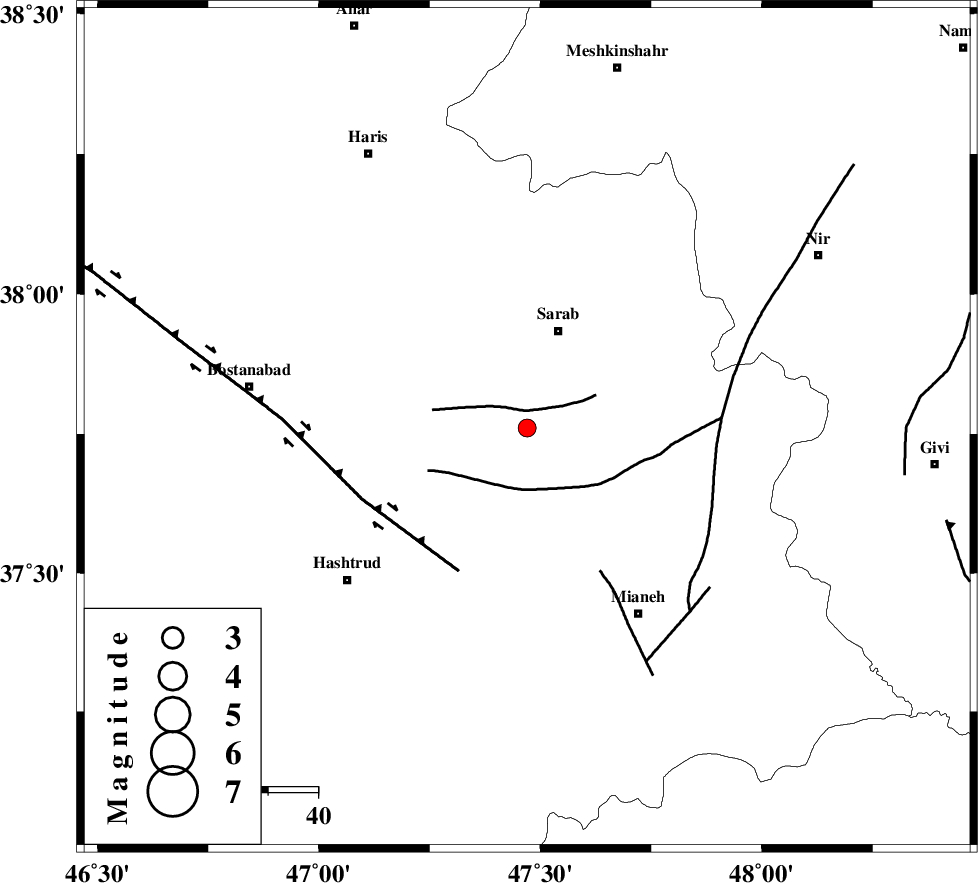

| Location | Lat:37.76 Lon: 47.47 |
| Region | Azarbaijan Sharghi Province, 20 km South of Sarab |
Nearest Cities |
|
| 10 km of Asbforushan, Azarbaijan Sharghi Province | |
| 15 km South of Abarghan, Azarbaijan Sharghi Province | |
| 17 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 20 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| 20 km South of Sarab, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 32 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 75 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 148942 | IIEES SC | GRMI | Z | 74 | 1 | 2019-11-26 01:00:37 | 2019-11-26 10:53:00 | n |
| 148943 | IIEES SC | AZR | Z | 220 | 1 | 2019-11-26 01:00:40 | 2019-11-26 10:53:00 | n |
| 148944 | IIEES SC | ZNJK | Z | 3.5 | 1 | 2019-11-26 01:01:22 | 2019-11-26 10:53:00 | n |
| 148945 | IIEES SC | MAHB | Z | 34 | 1 | 2019-11-26 01:00:55 | 2019-11-26 10:53:00 | n |
| 148946 | IIEES SC | SRSL | Z | 11 | 1 | 2019-11-26 01:01:17 | 2019-11-26 10:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-11-26 01:00:18 | 0 | y | 122 | 18 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-26 01:00:20 | 0 | y | 133 | 266 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-26 01:00:25 | -0.1 | y | 166 | 138 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-26 01:00:29 | -0.4 | y | 189 | 235 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-26 01:00:38 | 1 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-26 01:00:43 | 0.1 | y | 300 | 140 | |||
