Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2019-12-02 13:45:08.8 |
| Date & Time (Local) | 1398/9/11 17:15:08.8 |
| Location | Lat:37.75 Lon: 47.39 |
| Region | Azarbaijan Sharghi Province, 24 km South-West of Sarab |
Nearest Cities |
|
| 14 km South of Abarghan, Azarbaijan Sharghi Province | |
| 16 km West of Asbforushan, Azarbaijan Sharghi Province | |
| 17 km North of Qaribdust, Azarbaijan Sharghi Province | |
| 18 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 18 km North of Torkamanchay, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

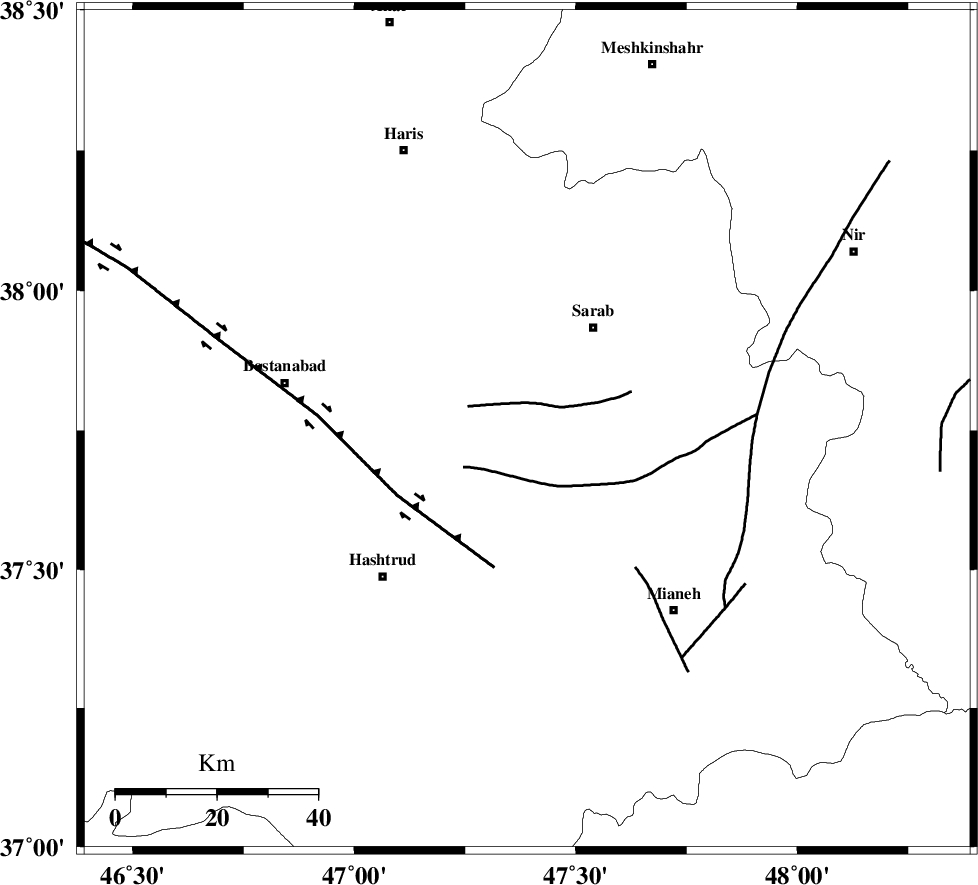

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 82 km | |
| Number of Phases | 4 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >0 km |
| Error in Longitude | 0 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149220 | IIEES SC | AZR | Z | 270 | 1 | 2019-12-02 13:45:55 | 2019-12-03 08:24:00 | n |
| 149221 | IIEES SC | GRMI | Z | 110 | 1 | 2019-12-02 13:45:49 | 2019-12-03 08:24:00 | n |
| 149222 | IIEES SC | ZNJK | Z | 3.3 | 1 | 2019-12-02 13:46:06 | 2019-12-03 08:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | N | IS | I | 2019-12-02 13:45:44 | -0.5 | y | 122 | 266 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-02 13:45:30 | 0.7 | y | 122 | 266 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-02 13:45:29 | 0 | y | 122 | 20 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-02 13:45:35 | 0 | y | 166 | 136 | |||
