Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2019-12-02 22:59:25.3 |
| Date & Time (Local) | 1398/9/12 02:29:25.3 |

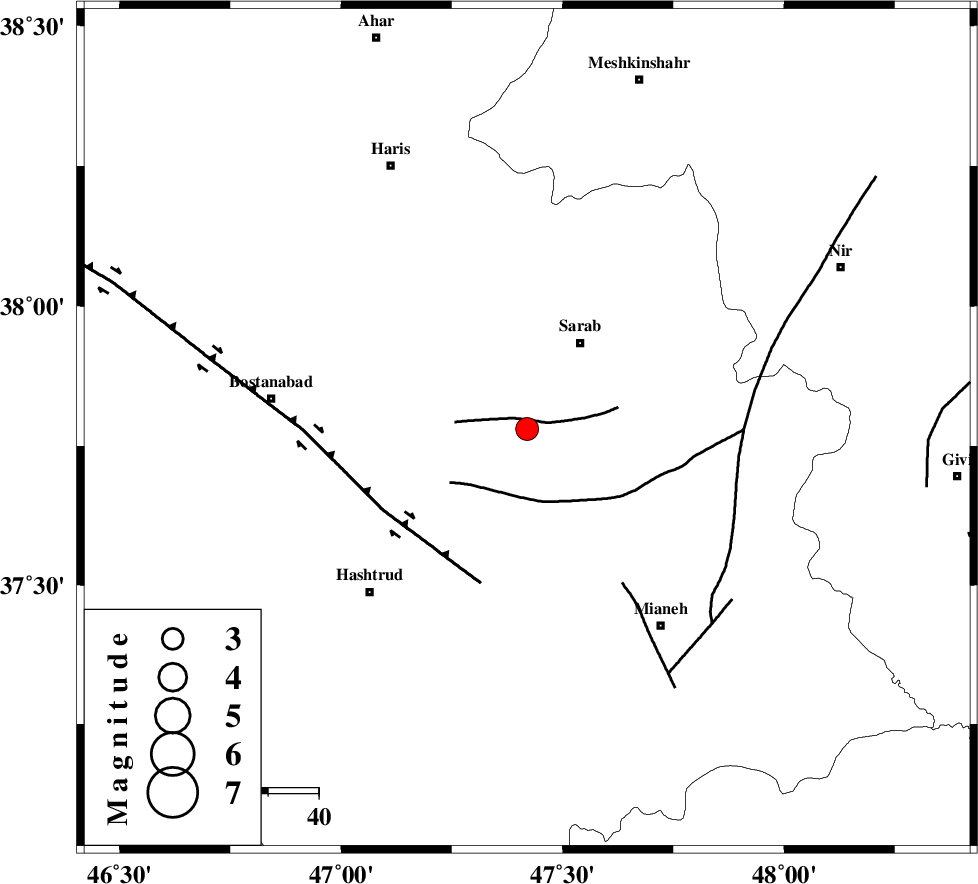

| Location | Lat:37.78 Lon: 47.42 |
| Region | Azarbaijan Sharghi Province, 20 km South-West of Sarab |
Nearest Cities |
|
| 11 km of Abarghan, Azarbaijan Sharghi Province | |
| 12 km West of Asbforushan, Azarbaijan Sharghi Province | |
| 20 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 20 km South West of Sarab, Azarbaijan Sharghi Province | |
| 21 km North of Qaribdust, Azarbaijan Sharghi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 32 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 80 km | |
| Number of Phases | 13 |
| RMS | 0.7 |
| Number of Stations | 12 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 19 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149230 | IIEES SC | AZR | Z | 1700 | 1 | 2019-12-02 23:00:18 | 2019-12-03 08:11:00 | n |
| 149231 | IIEES SC | MAHB | Z | 290 | 1 | 2019-12-02 23:00:22 | 2019-12-03 08:11:00 | n |
| 149232 | IIEES SC | GIDE | Z | 800 | 1 | 2019-12-02 23:00:37 | 2019-12-03 08:11:00 | n |
| 149233 | IIEES SC | SRSL | Z | 120 | 1 | 2019-12-02 23:00:40 | 2019-12-03 08:11:00 | n |
| 149234 | IIEES SC | SNGE | Z | 10 | 1 | 2019-12-02 23:02:03 | 2019-12-03 08:11:00 | n |
| 149235 | IIEES SC | THKV | Z | 110 | 1 | 2019-12-02 23:01:18 | 2019-12-03 08:11:00 | n |
| 149236 | IIEES SC | CHTH | Z | 1.9 | 1 | 2019-12-02 23:01:27 | 2019-12-03 08:11:00 | n |
| 149237 | IIEES SC | ASAO | Z | 22 | 1 | 2019-12-02 23:01:37 | 2019-12-03 08:11:00 | n |
| 149238 | IIEES SC | DAMV | Z | 4 | 1 | 2019-12-02 23:01:02 | 2019-12-03 08:11:00 | n |
| 149239 | IIEES SC | GHVR | Z | 200 | 1 | 2019-12-02 23:02:13 | 2019-12-03 08:11:00 | n |
| 149240 | IIEES SC | KHMZ | Z | 11 | 1 | 2019-12-02 23:01:56 | 2019-12-03 08:11:00 | n |
| 149241 | IIEES SC | MRVT | Z | 12 | 1 | 2019-12-02 23:01:47 | 2019-12-03 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-12-02 22:59:45 | -0.3 | n | 4 | 122 | 20 | ||
| IIEES SC | AZR | Z | IP | I | 2019-12-02 22:59:47 | 0.3 | y | 122 | 265 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-12-02 22:59:55 | -0.8 | y | 189 | 234 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-02 23:00:02 | -1.1 | y | 244 | 113 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-02 23:00:04 | 0.3 | y | 244 | 226 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-02 23:00:10 | 0.5 | y | 300 | 181 | |||
| IIEES SC | THKV | Z | IP | I | 2019-12-02 23:00:19 | 0 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-12-02 23:00:22 | 0.2 | y | 389 | 122 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-02 23:00:26 | -0.6 | y | 433 | 147 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-12-02 23:00:33 | 1.7 | y | 467 | 120 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-12-02 23:00:35 | -0.6 | y | 500 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-02 23:00:36 | 0.9 | y | 500 | 153 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-12-02 23:01:06 | -2.1 | y | 767 | 91 | |||
