Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2019-12-03 17:01:41.6 |
| Date & Time (Local) | 1398/9/12 20:31:41.6 |

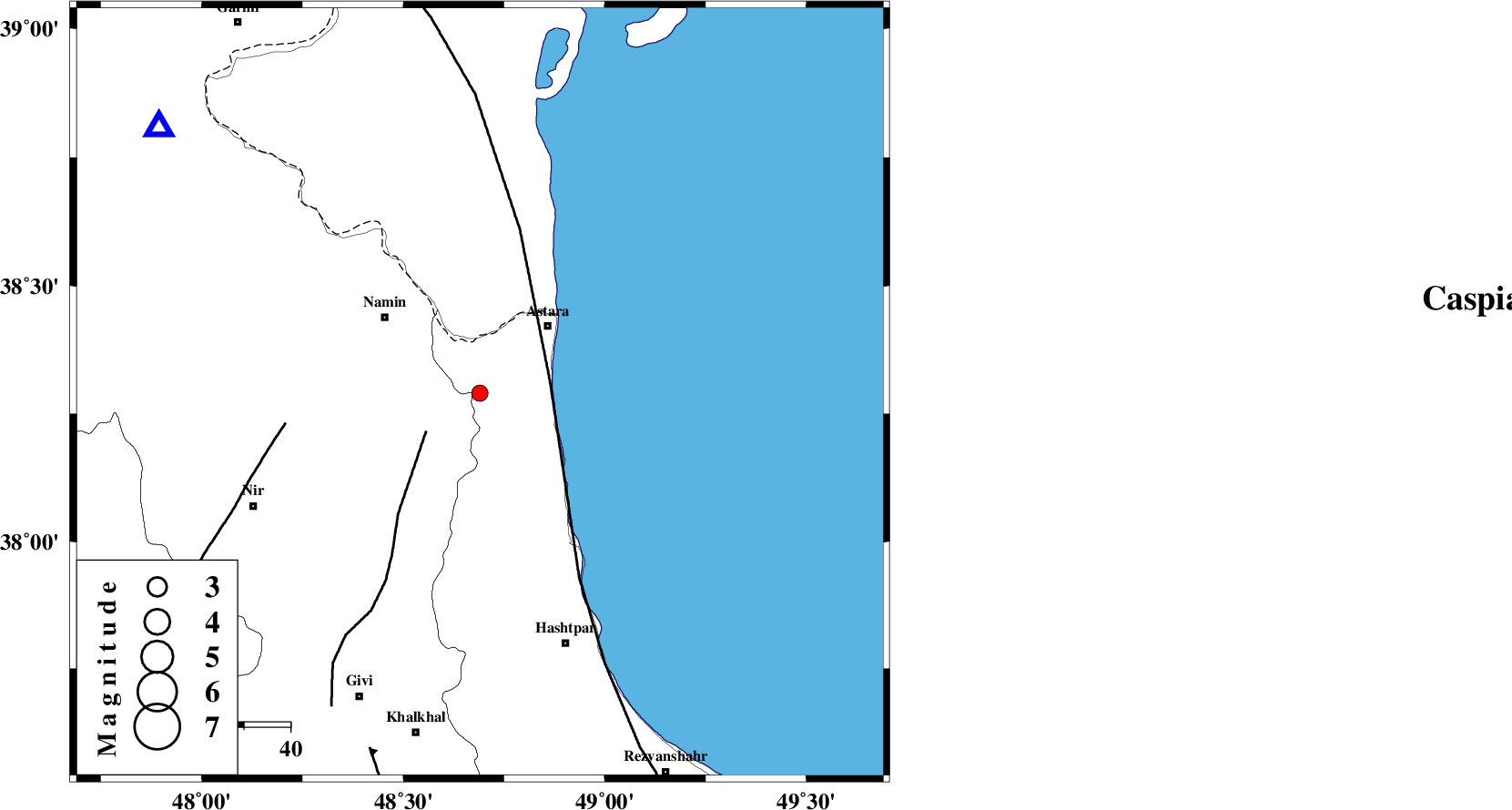

| Location | Lat:38.29 Lon: 48.69 |
| Region | Gilan Province, 21 km South-West of Astara |
Nearest Cities |
|
| 11 km of Kiladeh, Gilan Province | |
| 11 km East of Baibiglu, Ardebil Province | |
| 15 km West of Londovil, Gilan Province | |
| 17 km East of Nanehkaran, Ardebil Province | |
| 21 km South West of Astara, Gilan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 14 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 15 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 43 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149286 | IIEES SC | GRMI | Z | 430 | 1 | 2019-12-03 17:02:10 | 2019-12-04 10:42:00 | n |
| 149287 | IIEES SC | ZNJK | Z | 3.9 | 1 | 2019-12-03 17:02:48 | 2019-12-04 10:42:00 | n |
| 149288 | IIEES SC | AZR | Z | 100 | 1 | 2019-12-03 17:03:14 | 2019-12-04 10:42:00 | n |
| 149289 | IIEES SC | QABG | Z | 2 | 1 | 2019-12-03 17:03:03 | 2019-12-04 10:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2019-12-03 17:02:08 | 0.3 | y | 88 | 310 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-03 17:01:56 | -0.2 | y | 88 | 310 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-03 17:02:11 | 0.1 | y | 177 | 180 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-03 17:02:19 | -0.2 | y | 244 | 254 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-03 17:02:26 | 0 | y | 300 | 164 | |||
