Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2019-12-08 18:46:03.2 |
| Date & Time (Local) | 1398/9/17 22:16:03.2 |
| Location | Lat:37.75 Lon: 47.62 |
| Region | Azarbaijan Sharghi Province, 22 km South of Sarab |
Nearest Cities |
|
| 12 km of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km South of Pataveh, Azarbaijan Sharghi Province | |
| 16 km North of Eshlaq, Azarbaijan Sharghi Province | |
| 21 km North West of Tark, Azarbaijan Sharghi Province | |
| 21 km North East of Somee-ye olia, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

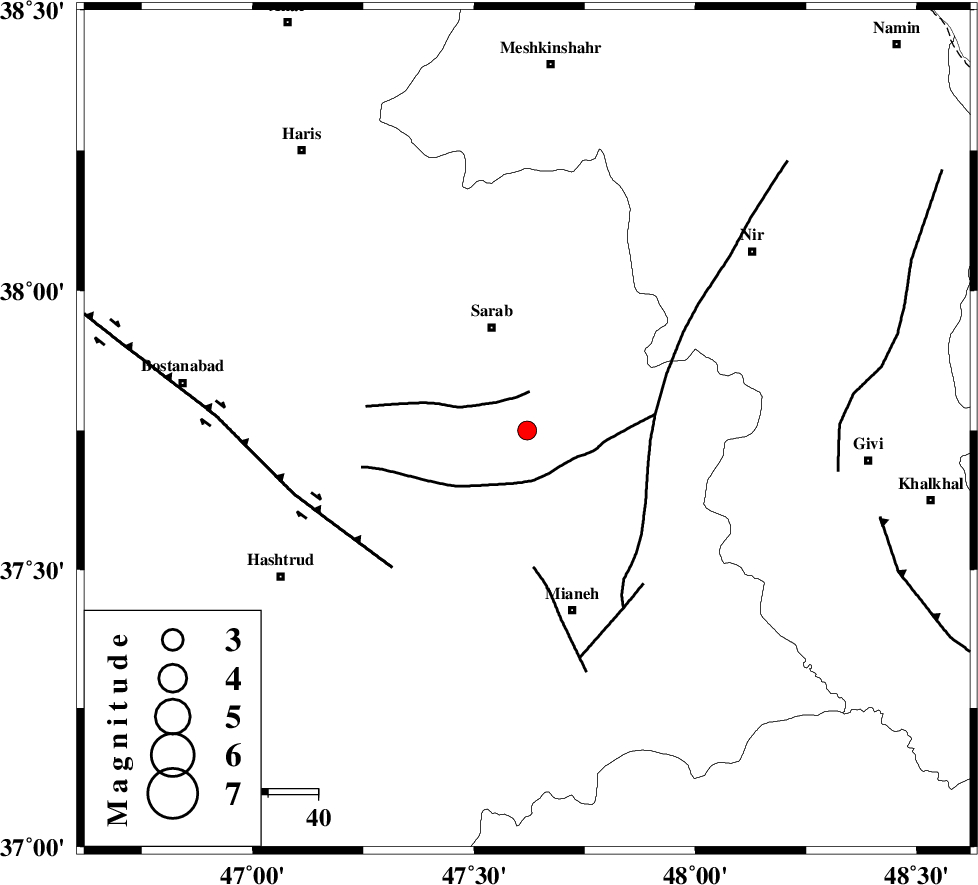

Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 38 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 62 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149435 | IIEES SC | GRMI | Z | 34 | 1 | 2019-12-08 18:46:44 | 2019-12-09 03:06:00 | n |
| 149436 | IIEES SC | AZR | Z | 120 | 1 | 2019-12-08 18:46:54 | 2019-12-09 03:06:00 | n |
| 149437 | IIEES SC | ZNJK | Z | 3.6 | 1 | 2019-12-08 18:47:42 | 2019-12-09 03:06:00 | n |
| 149438 | IIEES SC | GIDE | Z | 48 | 1 | 2019-12-08 18:47:28 | 2019-12-09 03:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2019-12-08 18:46:38 | -0.1 | y | 122 | 12 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-08 18:46:23 | 0 | y | 122 | 12 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-08 18:46:27 | 0 | y | 144 | 267 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-08 18:46:28 | 0.2 | y | 155 | 142 | |||
| IIEES SC | ZNJK | Z | IS | I | 2019-12-08 18:46:46 | -0.5 | y | 155 | 142 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-08 18:46:39 | 0.5 | y | 222 | 114 | |||
