Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2019-12-18 21:39:51.4 |
| Date & Time (Local) | 1398/9/28 01:09:51.4 |

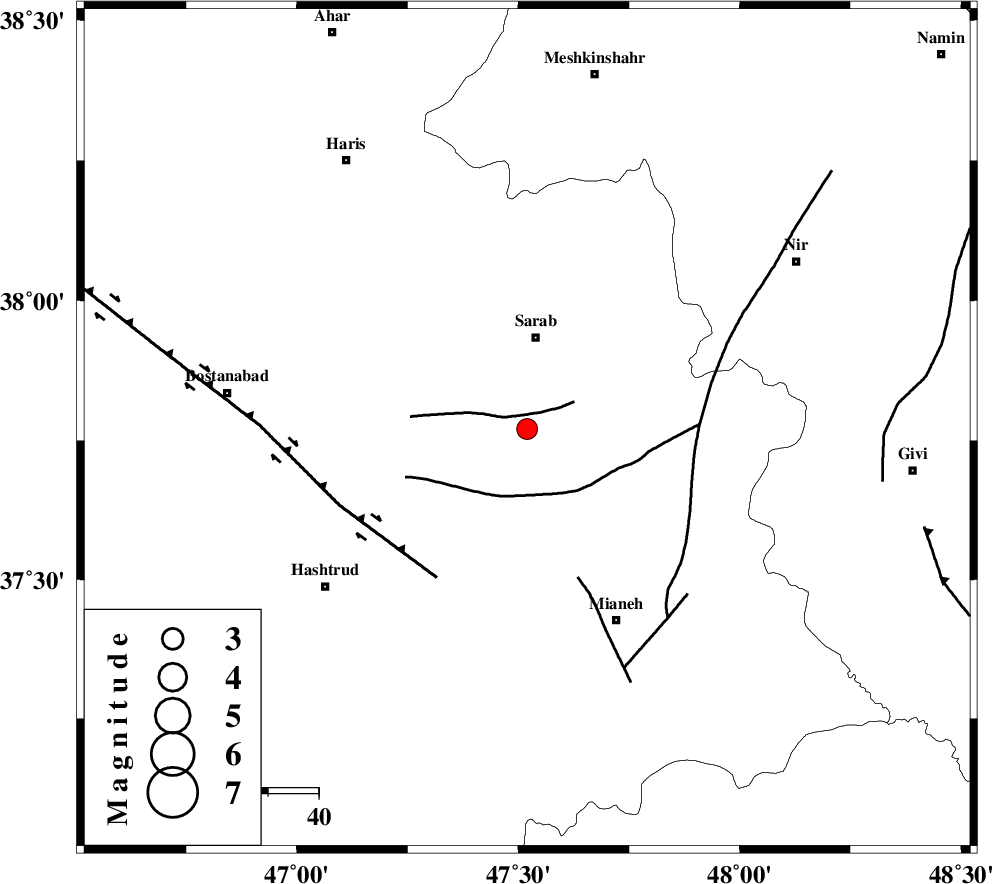

| Location | Lat:37.77 Lon: 47.52 |
| Region | Azarbaijan Sharghi Province, 18 km South of Sarab |
Nearest Cities |
|
| 8 km of Asbforushan, Azarbaijan Sharghi Province | |
| 17 km South East of Abarghan, Azarbaijan Sharghi Province | |
| 17 km West of Pataveh, Azarbaijan Sharghi Province | |
| 18 km South of Sarab, Azarbaijan Sharghi Province | |
| 19 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 35 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 71 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149780 | IIEES SC | GRMI | Z | 130 | 1 | 2019-12-18 21:40:30 | 2019-12-21 02:07:00 | n |
| 149781 | IIEES SC | AZR | Z | 510 | 1 | 2019-12-18 21:40:42 | 2019-12-21 02:07:00 | n |
| 149782 | IIEES SC | ZNJK | Z | 4.5 | 1 | 2019-12-18 21:41:30 | 2019-12-21 02:07:00 | n |
| 149783 | IIEES SC | MAHB | Z | 98 | 1 | 2019-12-18 21:40:53 | 2019-12-21 02:07:00 | n |
| 149784 | IIEES SC | GIDE | Z | 160 | 1 | 2019-12-18 21:41:00 | 2019-12-21 02:07:00 | n |
| 149785 | IIEES SC | SRSL | Z | 44 | 1 | 2019-12-18 21:41:08 | 2019-12-21 02:07:00 | n |
| 149786 | IIEES SC | SNGE | Z | 5.9 | 1 | 2019-12-18 21:41:13 | 2019-12-21 02:07:00 | n |
| 149787 | IIEES SC | THKV | Z | 16 | 1 | 2019-12-18 21:42:03 | 2019-12-21 02:07:00 | n |
| 149788 | IIEES SC | CHTH | Z | 2 | 1 | 2019-12-18 21:42:51 | 2019-12-21 02:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-12-18 21:40:11 | 0 | y | 122 | 16 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-18 21:40:14 | 0 | y | 133 | 266 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-18 21:40:15 | -1.8 | y | 155 | 140 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-12-18 21:40:22 | -0.8 | y | 200 | 235 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-18 21:40:27 | -0.1 | y | 233 | 114 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-18 21:40:31 | 1 | y | 255 | 227 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-18 21:40:35 | -0.6 | y | 289 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-18 21:40:36 | 0.3 | y | 300 | 183 | |||
| IIEES SC | MAKU | Z | IP | I | 2019-12-18 21:40:37 | 0.1 | y | 300 | 305 | |||
| IIEES SC | THKV | Z | IP | I | 2019-12-18 21:40:47 | 3.2 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-12-18 21:40:48 | 1.6 | y | 378 | 123 | |||
