Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2019-12-30 17:37:46.9 |
| Date & Time (Local) | 1398/10/9 21:07:46.9 |

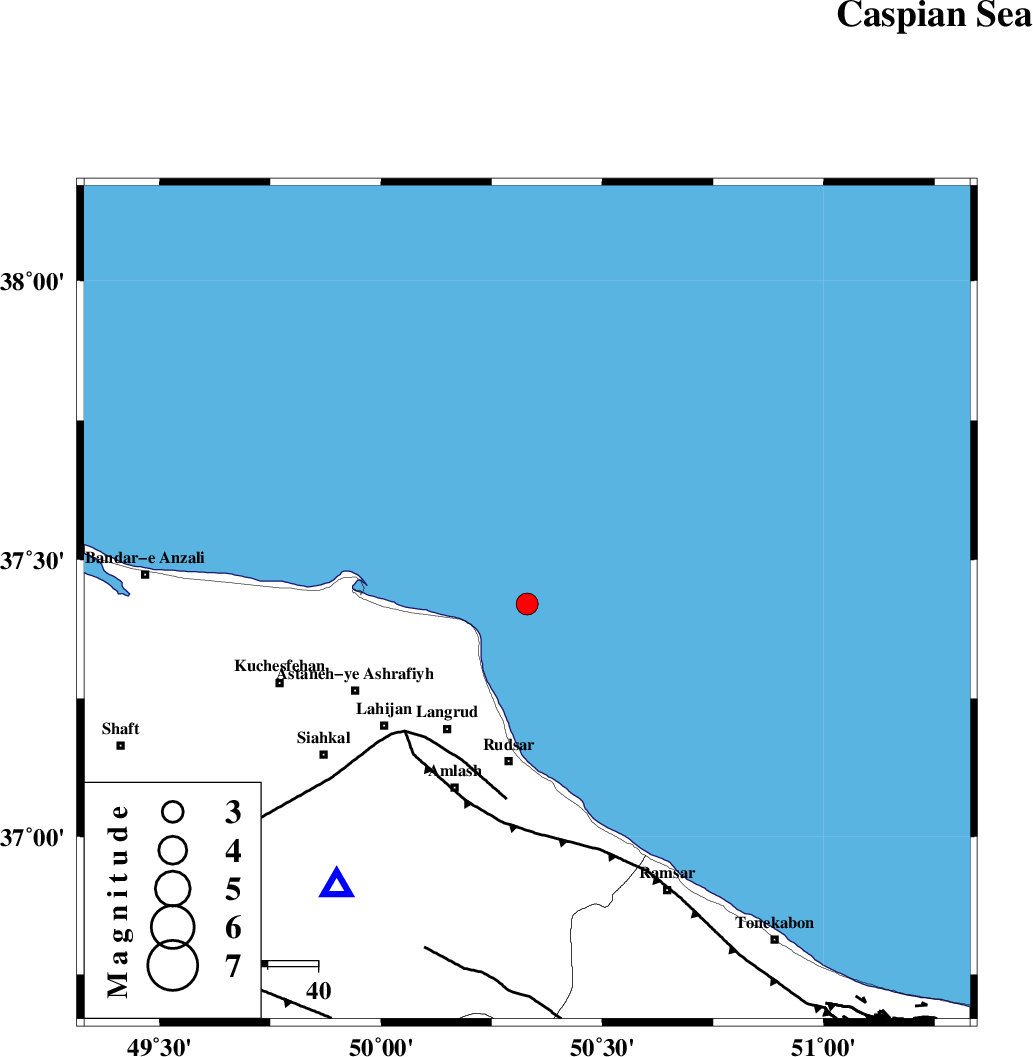

| Location | Lat:37.42 Lon: 50.33 |
| Region | Caspian Sea, 32 km North of Rudsar |
Nearest Cities |
|
| 17 km North East of Latlil, Gilan Province | |
| 20 km North East of Chali-ye paeen, Gilan Province | |
| 24 km North East of Dehgah, Gilan Province | |
| 29 km North East of Dehshal, Gilan Province | |
| 29 km North of Kohnehgorab, Gilan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 33 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 35 km | |
| BONAN_F (Length: 74 km) , Distance to epicenter: 72 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150240 | IIEES SC | GIDE | Z | 950 | 1 | 2019-12-30 17:38:07 | 2019-12-31 03:41:00 | n |
| 150241 | IIEES SC | ZNJK | Z | 3.4 | 1 | 2019-12-30 17:39:10 | 2019-12-31 03:41:00 | n |
| 150242 | IIEES SC | THKV | Z | 250 | 1 | 2019-12-30 17:38:38 | 2019-12-31 03:41:00 | n |
| 150243 | IIEES SC | CHTH | Z | 53 | 1 | 2019-12-30 17:38:38 | 2019-12-31 03:41:00 | n |
| 150244 | IIEES SC | QABG | Z | 23 | 1 | 2019-12-30 17:38:43 | 2019-12-31 03:41:00 | n |
| 150245 | IIEES SC | DAMV | Z | 4.6 | 1 | 2019-12-30 17:39:08 | 2019-12-31 03:41:00 | n |
| 150246 | IIEES SC | GRMI | Z | 10 | 1 | 2019-12-30 17:38:45 | 2019-12-31 03:41:00 | n |
| 150247 | IIEES SC | ASAO | Z | 18 | 1 | 2019-12-30 17:39:17 | 2019-12-31 03:41:00 | n |
| 150248 | IIEES SC | GLO | Z | 33 | 1 | 2019-12-30 17:39:47 | 2019-12-31 03:41:00 | n |
| 150249 | IIEES SC | GHVR | Z | 210 | 1 | 2019-12-30 17:39:08 | 2019-12-31 03:41:00 | n |
| 150250 | IIEES SC | SNGE | Z | 6.9 | 1 | 2019-12-30 17:39:19 | 2019-12-31 03:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GIDE | Z | IP | I | 2019-12-30 17:37:58 | -0.2 | y | 66 | 214 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-30 17:38:15 | 0.4 | y | 166 | 240 | |||
| IIEES SC | THKV | Z | IP | I | 2019-12-30 17:38:16 | 0.5 | y | 177 | 164 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-12-30 17:38:15 | -1.9 | y | 177 | 157 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-30 17:38:18 | -1.4 | y | 200 | 199 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-12-30 17:38:25 | -0.6 | y | 244 | 144 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-30 17:38:27 | -0.1 | y | 266 | 306 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-30 17:38:35 | 0.4 | y | 322 | 185 | |||
| IIEES SC | GLO | Z | IP | I | 2019-12-30 17:38:36 | 0 | y | 333 | 108 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-12-30 17:38:37 | 0.9 | y | 333 | 166 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-30 17:38:41 | 0.2 | y | 378 | 226 | |||
