Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2020-01-01 03:01:18.5 |
| Date & Time (Local) | 1398/10/11 06:31:18.5 |

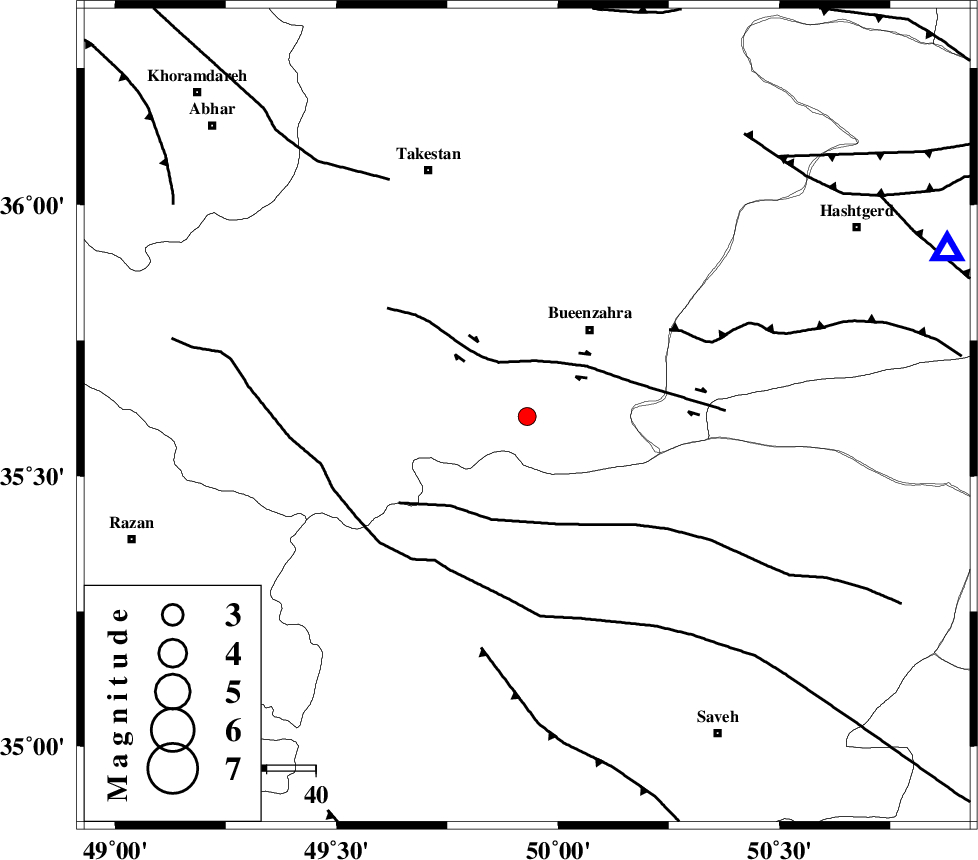

| Location | Lat:35.61 Lon: 49.93 |
| Region | Ghazvin Province, 22 km South-West of Buinzara |
Nearest Cities |
|
| 17 km South of Sagezabad, Ghazvin Province | |
| 22 km South West of Buinzara, Ghazvin Province | |
| 25 km North East of Duzaj, Markazi Province | |
| 26 km South East of Danesfahan, Ghazvin Province | |
| 31 km North of Razegian, Markazi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| IPAK_F (Length: 80 km) , Distance to epicenter: 12 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 22 km | |
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 34 km | |
| Number of Phases | 10 |
| RMS | 1 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150288 | IIEES SC | QABG | Z | 140 | 1 | 2020-01-01 03:01:28 | 2020-01-01 08:29:00 | n |
| 150289 | IIEES SC | THKV | Z | 27 | 1 | 2020-01-01 03:01:55 | 2020-01-01 08:29:00 | n |
| 150290 | IIEES SC | CHTH | Z | 21 | 1 | 2020-01-01 03:01:56 | 2020-01-01 08:29:00 | n |
| 150291 | IIEES SC | ASAO | Z | 32 | 1 | 2020-01-01 03:01:53 | 2020-01-01 08:29:00 | n |
| 150292 | IIEES SC | ZNJK | Z | 4.2 | 1 | 2020-01-01 03:02:15 | 2020-01-01 08:29:00 | n |
| 150293 | IIEES SC | GHVR | Z | 240 | 1 | 2020-01-01 03:02:31 | 2020-01-01 08:29:00 | n |
| 150294 | IIEES SC | DAMV | Z | 4 | 1 | 2020-01-01 03:01:56 | 2020-01-01 08:29:00 | n |
| 150295 | IIEES SC | KHMZ | Z | 9.6 | 1 | 2020-01-01 03:02:19 | 2020-01-01 08:29:00 | n |
| 150296 | IIEES SC | SNGE | Z | 6.3 | 1 | 2020-01-01 03:02:37 | 2020-01-01 08:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | QABG | Z | IP | I | 2020-01-01 03:01:23 | -1.9 | y | 33 | 289 | |||
| IIEES SC | THKV | Z | IP | I | 2020-01-01 03:01:35 | 0.9 | y | 88 | 68 | |||
| IIEES SC | CHTH | N | IS | I | 2020-01-01 03:01:51 | -0.4 | y | 111 | 73 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-01-01 03:01:36 | -0.9 | y | 111 | 73 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-01 03:01:38 | -0.7 | y | 122 | 176 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-01-01 03:01:45 | 0.2 | y | 166 | 316 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-01-01 03:01:47 | 0 | y | 177 | 136 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-01 03:01:49 | 0.8 | y | 189 | 89 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-01 03:01:51 | -0.6 | y | 211 | 179 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-01-01 03:01:58 | 1.1 | y | 244 | 256 | |||
