Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2020-01-08 01:58:14.7 |
| Date & Time (Local) | 1398/10/18 05:28:14.7 |

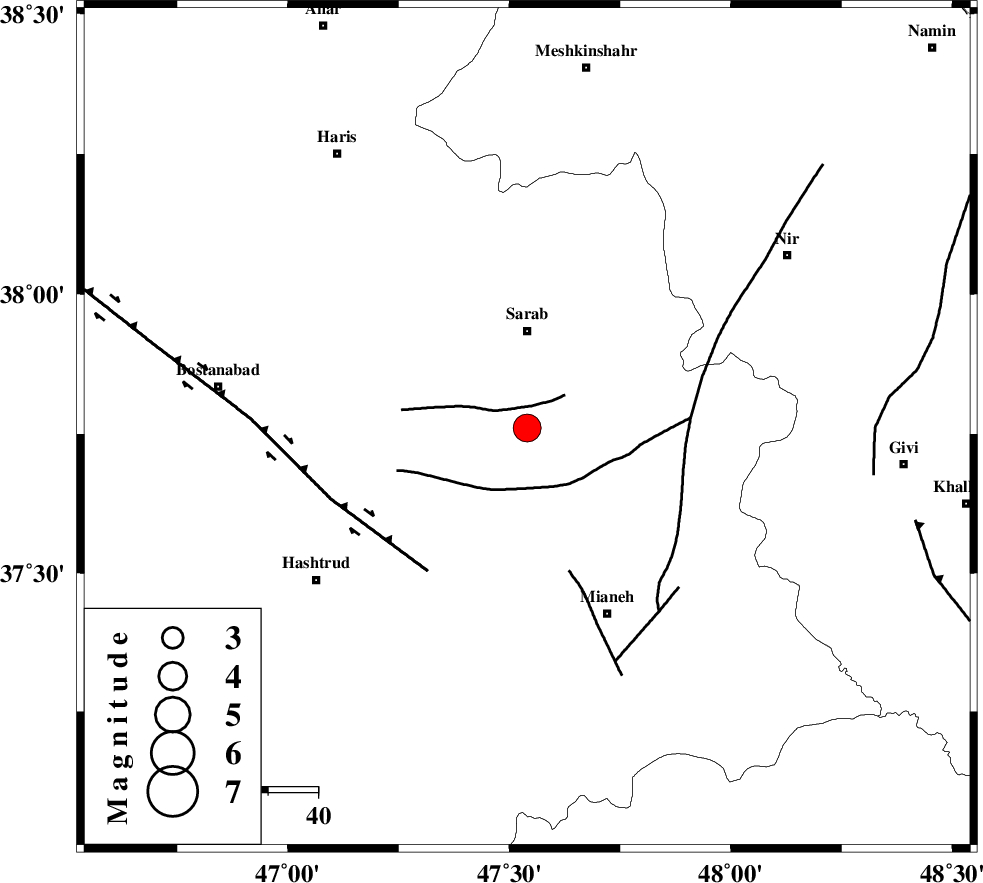

| Location | Lat:37.76 Lon: 47.54 |
| Region | Azarbaijan Sharghi Province, 19 km South of Sarab |
Nearest Cities |
|
| 9 km of Asbforushan, Azarbaijan Sharghi Province | |
| 17 km West of Pataveh, Azarbaijan Sharghi Province | |
| 18 km North of Eshlaq, Azarbaijan Sharghi Province | |
| 19 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 19 km South East of Abarghan, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 9 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 35 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 69 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150781 | IIEES SC | AZR | Z | 2900 | 1 | 2020-01-08 01:59:07 | 2020-01-08 10:03:00 | n |
| 150782 | IIEES SC | ZNJK | Z | 3.3 | 1 | 2020-01-08 01:59:16 | 2020-01-08 10:03:00 | n |
| 150783 | IIEES SC | MAHB | Z | 560 | 1 | 2020-01-08 01:59:15 | 2020-01-08 10:03:00 | n |
| 150784 | IIEES SC | SNGE | Z | 6.1 | 1 | 2020-01-08 01:59:09 | 2020-01-08 10:03:00 | n |
| 150785 | IIEES SC | THKV | Z | 290 | 1 | 2020-01-08 02:00:35 | 2020-01-08 10:03:00 | n |
| 150786 | IIEES SC | CHTH | Z | 160 | 1 | 2020-01-08 02:00:02 | 2020-01-08 10:03:00 | n |
| 150787 | IIEES SC | ASAO | Z | 63 | 1 | 2020-01-08 02:00:21 | 2020-01-08 10:03:00 | n |
| 150788 | IIEES SC | DAMV | Z | 4.4 | 1 | 2020-01-08 02:00:28 | 2020-01-08 10:03:00 | n |
| 150789 | IIEES SC | ILBA | Z | 10 | 1 | 2020-01-08 02:01:01 | 2020-01-08 10:03:00 | n |
| 150790 | IIEES SC | GHVR | Z | 330 | 1 | 2020-01-08 02:00:09 | 2020-01-08 10:03:00 | n |
| 150791 | IIEES SC | KHMZ | Z | 25 | 1 | 2020-01-08 02:00:49 | 2020-01-08 10:03:00 | n |
| 150792 | IIEES SC | GLO | Z | 120 | 1 | 2020-01-08 02:01:13 | 2020-01-08 10:03:00 | n |
| 150793 | IIEES SC | GLO | Z | 55 | 0.75 | 2020-01-08 01:59:39 | 2020-01-08 10:03:00 | n |
| 150794 | IIEES SC | GTMR | Z | 14 | 1 | 2020-01-08 02:00:44 | 2020-01-08 10:03:00 | n |
| 150795 | IIEES SC | GTMR | Z | 14 | 0.67 | 2020-01-08 01:59:53 | 2020-01-08 10:03:00 | n |
| 150796 | IIEES SC | NASN | Z | 9.8 | 1 | 2020-01-08 02:02:04 | 2020-01-08 10:03:00 | n |
| 150797 | IIEES SC | NASN | Z | 6.5 | 0.68 | 2020-01-08 01:59:58 | 2020-01-08 10:03:00 | n |
| 150798 | IIEES SC | MRVT | Z | 15 | 1 | 2020-01-08 02:01:17 | 2020-01-08 10:03:00 | n |
| 150799 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-01-08 02:01:02 | 2020-01-08 10:03:00 | n |
| 150800 | IIEES SC | SHRO | Z | 6.1 | 0.67 | 2020-01-08 02:00:14 | 2020-01-08 10:03:00 | n |
| 150801 | IIEES SC | YZKH | Z | 6.3 | 1 | 2020-01-08 02:01:26 | 2020-01-08 10:03:00 | n |
| 150802 | IIEES SC | YZKH | Z | 7.3 | 0.56 | 2020-01-08 02:00:15 | 2020-01-08 10:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AZR | Z | IP | I | 2020-01-08 01:58:38 | 0.2 | y | 133 | 266 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-01-08 01:58:40 | -0.7 | y | 155 | 140 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-01-08 01:58:46 | -0.5 | y | 200 | 236 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-01-08 01:59:00 | 0.5 | y | 300 | 183 | |||
| IIEES SC | THKV | Z | IP | I | 2020-01-08 01:59:07 | -0.3 | y | 366 | 124 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-01-08 01:59:08 | -1.7 | y | 378 | 123 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-08 01:59:15 | -0.1 | y | 422 | 148 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-08 01:59:21 | 0.7 | y | 455 | 121 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-01-08 01:59:21 | 0.1 | y | 478 | 195 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-01-08 01:59:24 | -0.2 | y | 489 | 137 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-08 01:59:25 | 0.9 | y | 500 | 154 | |||
| IIEES SC | GLO | Z | IP | I | 2020-01-08 01:59:34 | 0 | y | 578 | 104 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-01-08 01:59:37 | 0.1 | y | 600 | 166 | |||
| IIEES SC | NASN | Z | IP | I | 2020-01-08 01:59:54 | 0.6 | y | 733 | 139 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-01-08 01:59:55 | -1.4 | y | 756 | 91 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-01-08 02:00:00 | 0.5 | y | 778 | 104 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-01-08 02:00:11 | -0.4 | y | 878 | 133 | |||
| IIEES SC | GLO | Z | IVmB_BB | 2020-01-08 01:59:39 | y | 1 | 578 | 104 | ||||
