Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2020-01-07 13:22:00.4 |
| Date & Time (Local) | 1398/10/17 16:52:00.4 |

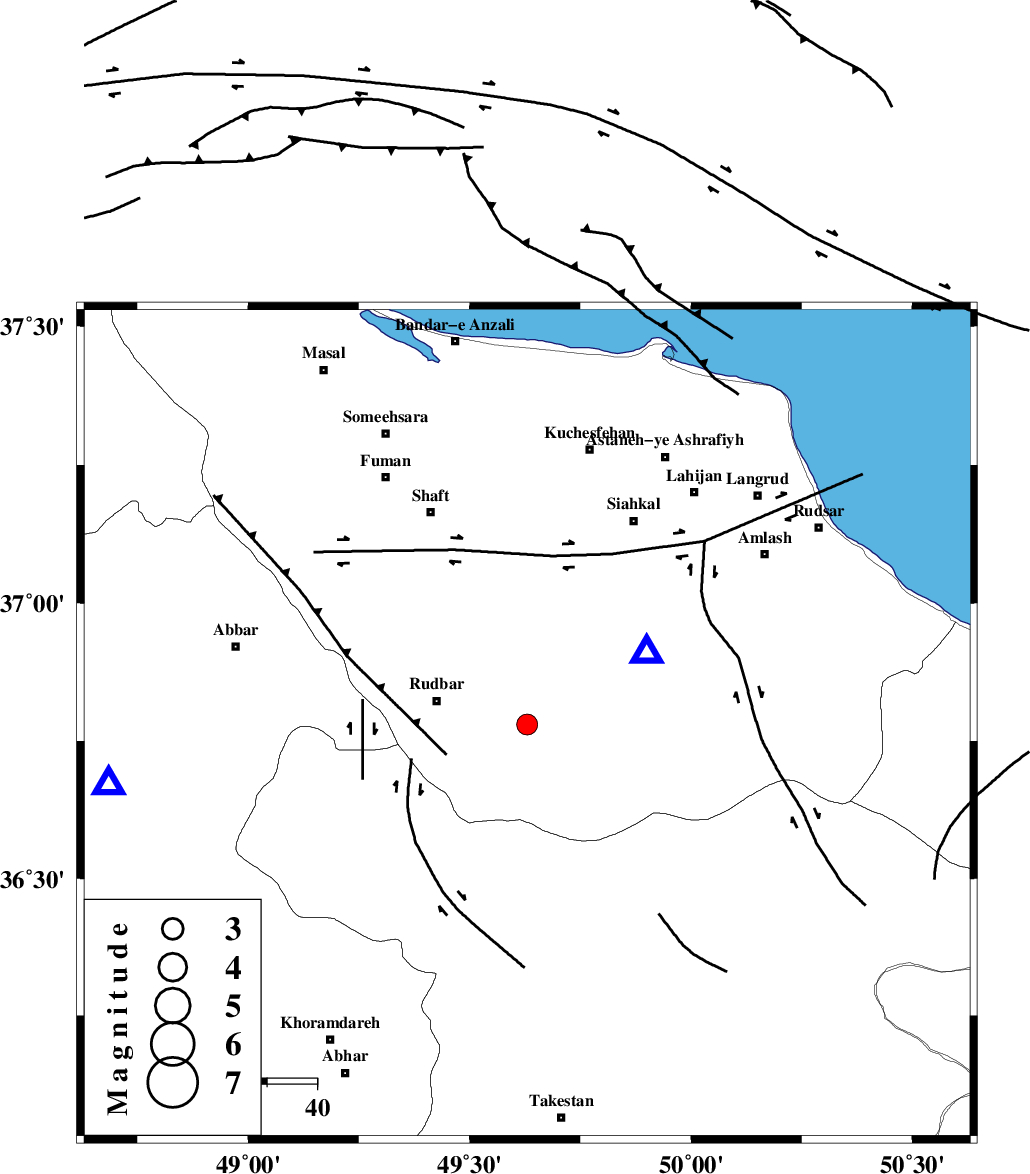

| Location | Lat:36.78 Lon: 49.63 |
| Region | Gilan Province, 19 km -East of Rudbar |
Nearest Cities |
|
| 10 km of Dashtvil, Gilan Province | |
| 16 km North West of Jirhandeh, Gilan Province | |
| 17 km East of Rostamabad, Gilan Province | |
| 19 km East of Rudbar, Gilan Province | |
| 21 km North East of Loshan, Gilan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 2 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 23 km | |
| ALAMUTRUD_F (Length: 140 km) , Distance to epicenter: 24 km | |
| Number of Phases | 14 |
| RMS | 1.2 |
| Number of Stations | 14 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150833 | IIEES SC | GIDE | Z | 3500 | 1 | 2020-01-07 13:22:11 | 2020-01-08 11:11:00 | n |
| 150834 | IIEES SC | ZNJK | Z | 3 | 1 | 2020-01-07 13:22:38 | 2020-01-08 11:11:00 | n |
| 150835 | IIEES SC | THKV | Z | 150 | 1 | 2020-01-07 13:22:44 | 2020-01-08 11:11:00 | n |
| 150836 | IIEES SC | CHTH | Z | 71 | 1 | 2020-01-07 13:22:47 | 2020-01-08 11:11:00 | n |
| 150837 | IIEES SC | DAMV | Z | 3.7 | 1 | 2020-01-07 13:22:44 | 2020-01-08 11:11:00 | n |
| 150838 | IIEES SC | ASAO | Z | 18 | 1 | 2020-01-07 13:23:15 | 2020-01-08 11:11:00 | n |
| 150839 | IIEES SC | GRMI | Z | 33 | 1 | 2020-01-07 13:23:20 | 2020-01-08 11:11:00 | n |
| 150840 | IIEES SC | SNGE | Z | 6.1 | 1 | 2020-01-07 13:24:13 | 2020-01-08 11:11:00 | n |
| 150841 | IIEES SC | GHVR | Z | 290 | 1 | 2020-01-07 13:23:18 | 2020-01-08 11:11:00 | n |
| 150842 | IIEES SC | AZR | Z | 150 | 1 | 2020-01-07 13:23:43 | 2020-01-08 11:11:00 | n |
| 150843 | IIEES SC | GLO | Z | 75 | 1 | 2020-01-07 13:24:02 | 2020-01-08 11:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GIDE | Z | IP | I | 2020-01-07 13:22:06 | 0.1 | y | 33 | 58 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-01-07 13:22:14 | -0.8 | y | 88 | 262 | |||
| IIEES SC | QABG | E | IS | I | 2020-01-07 13:22:33 | -2.3 | y | 122 | 182 | |||
| IIEES SC | QABG | Z | IP | I | 2020-01-07 13:22:19 | -1.2 | y | 122 | 182 | |||
| IIEES SC | THKV | N | IS | I | 2020-01-07 13:22:42 | -1.4 | y | 144 | 131 | |||
| IIEES SC | THKV | Z | IP | I | 2020-01-07 13:22:24 | -0.1 | y | 144 | 131 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-01-07 13:22:25 | -2.2 | y | 166 | 126 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-07 13:22:39 | 0 | y | 244 | 121 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-07 13:22:41 | 1.1 | y | 255 | 172 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-01-07 13:22:41 | -0.8 | y | 266 | 326 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-01-07 13:22:46 | 2.6 | y | 278 | 228 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-01-07 13:22:46 | 0.8 | y | 289 | 150 | |||
| IIEES SC | AZR | Z | IP | I | 2020-01-07 13:22:50 | 0 | y | 333 | 287 | |||
| IIEES SC | GLO | Z | IP | I | 2020-01-07 13:22:56 | 1.1 | y | 378 | 95 | |||
