Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2020-04-26 18:30:57.2 |
| Date & Time (Local) | 1399/2/7 23:00:57.2 |

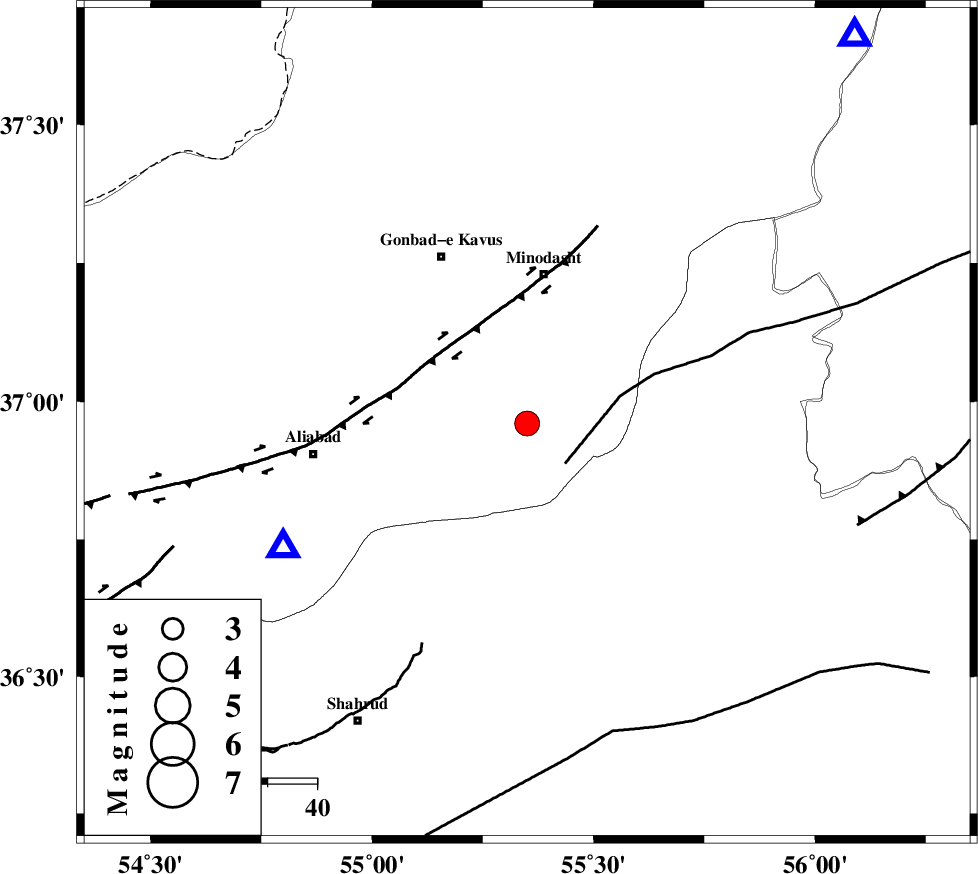

| Location | Lat:36.96 Lon: 55.35 |
| Region | Golestan Province, 19 km -East of Ramian |
Nearest Cities |
|
| 7 km North of Farsian, Golestan Province | |
| 16 km West of Qale-ye qafeh, Golestan Province | |
| 17 km South East of Khanduz, Golestan Province | |
| 19 km East of Ramian, Golestan Province | |
| 21 km South East of Azadshahr, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 11 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 24 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 35 km | |
| Number of Phases | 17 |
| RMS | 2.1 |
| Number of Stations | 16 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153291 | IIEES SC | MRVT | Z | 1200 | 1 | 2020-04-26 18:31:32 | 2020-04-27 10:05:00 | n |
| 153292 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-04-26 18:32:10 | 2020-04-27 10:05:00 | n |
| 153293 | IIEES SC | BJRD | Z | 190 | 1 | 2020-04-26 18:32:02 | 2020-04-27 10:05:00 | n |
| 153294 | IIEES SC | ANJ | Z | 190 | 1 | 2020-04-26 18:32:25 | 2020-04-27 10:05:00 | n |
| 153295 | IIEES SC | SBZV | Z | 230 | 1 | 2020-04-26 18:32:06 | 2020-04-27 10:05:00 | n |
| 153296 | IIEES SC | AKL | Z | 75 | 1 | 2020-04-26 18:32:36 | 2020-04-27 10:05:00 | n |
| 153297 | IIEES SC | DAMV | Z | 130 | 1 | 2020-04-26 18:32:41 | 2020-04-27 10:05:00 | n |
| 153298 | IIEES SC | CHTH | Z | 28 | 1 | 2020-04-26 18:33:20 | 2020-04-27 10:05:00 | n |
| 153299 | IIEES SC | TABS | Z | 2.7 | 1 | 2020-04-26 18:33:19 | 2020-04-27 10:05:00 | n |
| 153300 | IIEES SC | THKV | Z | 98 | 1 | 2020-04-26 18:33:05 | 2020-04-27 10:05:00 | n |
| 153301 | IIEES SC | GHVR | Z | 1200 | 1 | 2020-04-26 18:33:54 | 2020-04-27 10:05:00 | n |
| 153302 | IIEES SC | TBJM | Z | 30 | 1 | 2020-04-26 18:33:48 | 2020-04-27 10:05:00 | n |
| 153303 | IIEES SC | YZKH | Z | 23 | 1 | 2020-04-26 18:33:46 | 2020-04-27 10:05:00 | n |
| 153304 | IIEES SC | NASN | Z | 15 | 1 | 2020-04-26 18:33:31 | 2020-04-27 10:05:00 | n |
| 153305 | IIEES SC | SHRT | Z | 15 | 1 | 2020-04-26 18:34:00 | 2020-04-27 10:05:00 | n |
| 153306 | IIEES SC | SHRT | Z | 6.6 | 0.54 | 2020-04-26 18:32:27 | 2020-04-27 10:05:00 | n |
| 153307 | IIEES SC | BSRN | Z | 7.3 | 1 | 2020-04-26 18:34:18 | 2020-04-27 10:05:00 | n |
| 153308 | IIEES SC | BSRN | Z | 8 | 0.86 | 2020-04-26 18:32:54 | 2020-04-27 10:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | IP | I | 2020-04-26 18:31:14 | -0.1 | y | 100 | 40 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-04-26 18:31:17 | 0 | y | 122 | 150 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-04-26 18:31:30 | 1.8 | y | 200 | 65 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-04-26 18:31:31 | 2.1 | y | 211 | 218 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-04-26 18:31:31 | 2.2 | y | 211 | 107 | |||
| IIEES SC | AKL | Z | IP | I | 2020-04-26 18:31:44 | 2.6 | y | 311 | 97 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-04-26 18:31:47 | 2.4 | y | 333 | 245 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-26 18:31:54 | 2.1 | y | 400 | 254 | |||
| IIEES SC | TABS | Z | IP | I | 2020-04-26 18:31:55 | 2 | y | 400 | 156 | |||
| IIEES SC | THKV | Z | IP | I | 2020-04-26 18:31:57 | 2.6 | y | 411 | 255 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-04-26 18:32:02 | 2.1 | y | 467 | 235 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-04-26 18:32:06 | 3.2 | y | 489 | 111 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-04-26 18:32:08 | 1.6 | y | 511 | 188 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-26 18:32:08 | 1.4 | y | 522 | 207 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-04-26 18:32:17 | 1.8 | y | 578 | 128 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-04-26 18:32:26 | 2.2 | y | 656 | 147 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-04-26 18:32:26 | -2.5 | n | 4 | 689 | 290 | ||
