Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2020-04-20 20:48:03.1 |
| Date & Time (Local) | 1399/2/2 01:18:03.1 |

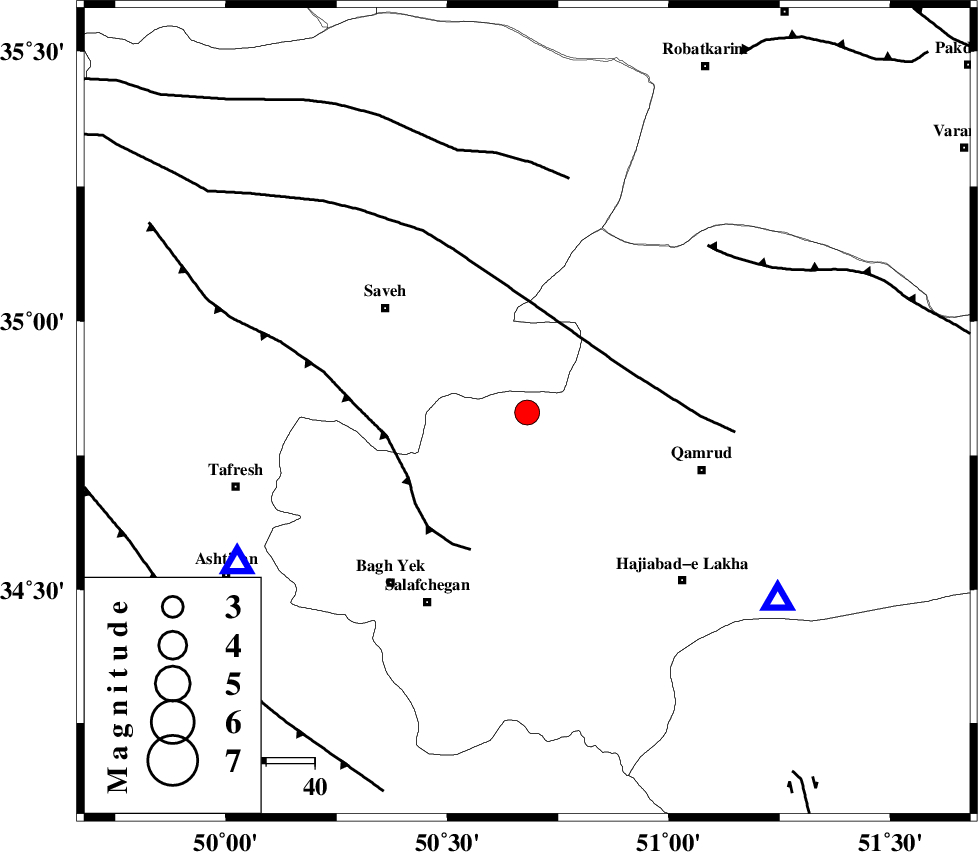

| Location | Lat:34.83 Lon: 50.68 |
| Region | Qom Province, 26 km North-West of Qom |
Nearest Cities |
|
| 15 km North East of Gazran, Qom Province | |
| 20 km South East of Taraznahid, Markazi Province | |
| 26 km North West of Qom, Qom Province | |
| 29 km East of Qareh chay, Markazi Province | |
| 36 km South East of Saveh, Markazi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 22 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 28 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 49 km | |
| Number of Phases | 21 |
| RMS | 0.9 |
| Number of Stations | 19 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153364 | IIEES SC | GHVR | Z | 280 | 1 | 2020-04-20 20:48:53 | 2020-04-28 08:11:00 | n |
| 153365 | IIEES SC | THKV | Z | 1400 | 1 | 2020-04-20 20:48:40 | 2020-04-28 08:11:00 | n |
| 153366 | IIEES SC | CHTH | Z | 120 | 1 | 2020-04-20 20:49:05 | 2020-04-28 08:11:00 | n |
| 153367 | IIEES SC | KHMZ | Z | 300 | 1 | 2020-04-20 20:48:48 | 2020-04-28 08:11:00 | n |
| 153368 | IIEES SC | QABG | Z | 57 | 1 | 2020-04-20 20:48:46 | 2020-04-28 08:11:00 | n |
| 153369 | IIEES SC | DAMV | Z | 4.3 | 1 | 2020-04-20 20:49:01 | 2020-04-28 08:11:00 | n |
| 153370 | IIEES SC | GIDE | Z | 370 | 1 | 2020-04-20 20:49:23 | 2020-04-28 08:11:00 | n |
| 153371 | IIEES SC | ZNJK | Z | 4.1 | 1 | 2020-04-20 20:50:22 | 2020-04-28 08:11:00 | n |
| 153372 | IIEES SC | GTMR | Z | 73 | 1 | 2020-04-20 20:49:42 | 2020-04-28 08:11:00 | n |
| 153373 | IIEES SC | NASN | Z | 62 | 1 | 2020-04-20 20:49:30 | 2020-04-28 08:11:00 | n |
| 153374 | IIEES SC | ANJ | Z | 47 | 1 | 2020-04-20 20:49:55 | 2020-04-28 08:11:00 | n |
| 153375 | IIEES SC | AMIS | Z | 58 | 1 | 2020-04-20 20:50:03 | 2020-04-28 08:11:00 | n |
| 153376 | IIEES SC | KLNJ | Z | 26 | 1 | 2020-04-20 20:50:21 | 2020-04-28 08:11:00 | n |
| 153377 | IIEES SC | YZKH | Z | 20 | 1 | 2020-04-20 20:50:26 | 2020-04-28 08:11:00 | n |
| 153378 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-04-20 20:50:26 | 2020-04-28 08:11:00 | n |
| 153379 | IIEES SC | GRMI | Z | 9 | 1 | 2020-04-20 20:50:31 | 2020-04-28 08:11:00 | n |
| 153380 | IIEES SC | AZR | Z | 47 | 1 | 2020-04-20 20:50:55 | 2020-04-28 08:11:00 | n |
| 153381 | IIEES SC | TABS | Z | 2.3 | 1 | 2020-04-20 20:50:55 | 2020-04-28 08:11:00 | n |
| 153382 | IIEES SC | BSRN | Z | 5 | 1 | 2020-04-20 20:52:17 | 2020-04-28 08:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | IP | I | 2020-04-20 20:48:14 | -0.4 | y | 66 | 127 | |||
| IIEES SC | THKV | Z | IP | I | 2020-04-20 20:48:23 | 0 | y | 122 | 9 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-04-20 20:48:24 | -0.5 | y | 122 | 19 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-04-20 20:48:24 | -1.6 | y | 133 | 208 | |||
| IIEES SC | QABG | Z | IP | I | 2020-04-20 20:48:25 | -0.7 | y | 133 | 314 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-04-20 20:48:26 | -0.8 | y | 144 | 53 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-04-20 20:48:42 | 0.6 | y | 244 | 343 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-04-20 20:48:45 | -0.2 | y | 266 | 319 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-04-20 20:48:49 | 1.1 | y | 300 | 209 | |||
| IIEES SC | NASN | Z | IP | I | 2020-04-20 20:48:48 | -0.3 | y | 300 | 139 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-04-20 20:48:50 | 1.3 | y | 300 | 77 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-04-20 20:48:55 | 6.3 | n | 4 | 300 | 275 | ||
| IIEES SC | AMIS | Z | IP | I | 2020-04-20 20:48:58 | 0.8 | y | 378 | 200 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-04-20 20:49:06 | 0.8 | y | 433 | 169 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-04-20 20:49:06 | -1 | y | 455 | 127 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-04-20 20:49:18 | 5.2 | n | 4 | 500 | 288 | ||
| IIEES SC | SHRO | Z | IP | I | 2020-04-20 20:49:15 | 1.9 | y | 500 | 75 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-04-20 20:49:14 | 0.7 | y | 511 | 331 | |||
| IIEES SC | AZR | Z | IP | I | 2020-04-20 20:49:16 | -0.2 | y | 522 | 307 | |||
| IIEES SC | TABS | Z | IP | I | 2020-04-20 20:49:26 | -0.7 | y | 611 | 102 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-04-20 20:49:56 | -0.6 | y | 845 | 112 | |||
