Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-05-04 13:07:47.7 |
| Date & Time (Local) | 1399/2/15 17:37:47.7 |
| Location | Lat:37.36 Lon: 57.64 |
| Region | Khorasan(north) Province, 26 km -West of Shirvan |
Nearest Cities |
|
| 10 km North of Zavarom, Khorasan(north) Province | |
| 22 km South East of Hesar-egarmkhanh, Khorasan(north) Province | |
| 25 km West of Ziyarat, Khorasan(north) Province | |
| 26 km West of Shirvan, Khorasan(north) Province | |
| 28 km North West of Geliyan, Khorasan(north) Province | |
| Depth | 10 km |
| Agency | |

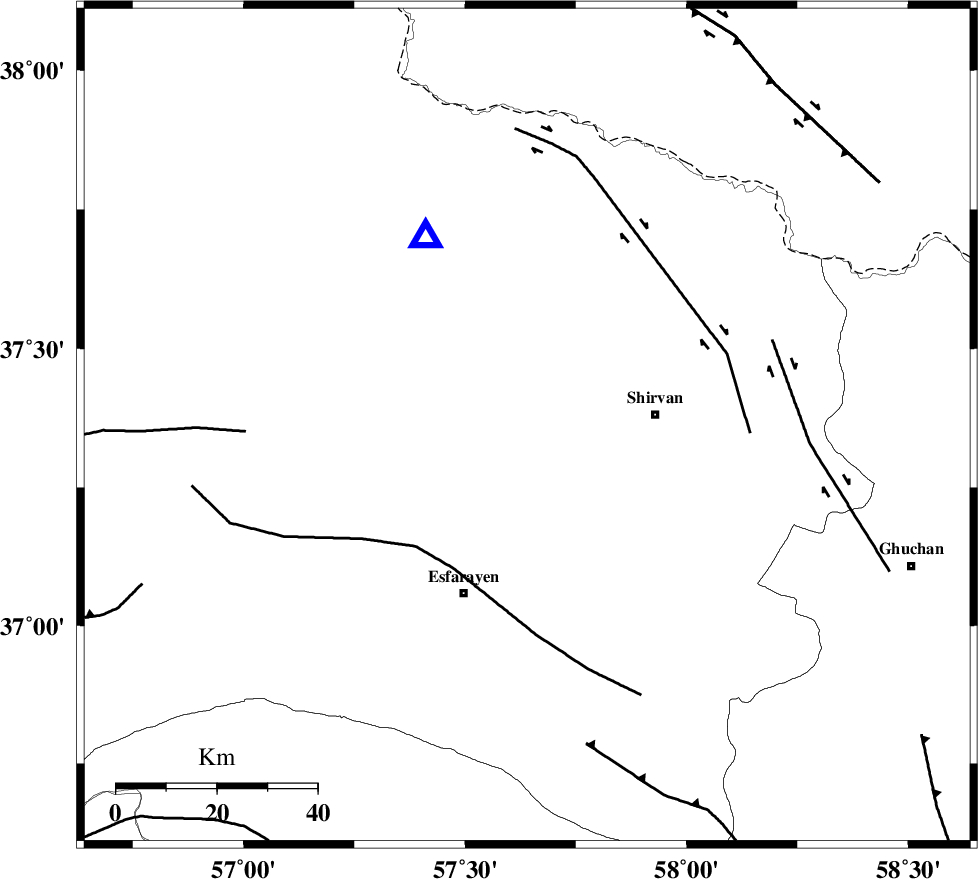

Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 32 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 42 km | |
| GHUCHAN_F (Length: 50 km) , Distance to epicenter: 52 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153562 | IIEES SC | BJRD | Z | 1200 | 1 | 2020-05-04 13:08:03 | 2020-05-06 01:38:00 | n |
| 153563 | IIEES SC | SBZV | Z | 170 | 1 | 2020-05-04 13:08:20 | 2020-05-06 01:38:00 | n |
| 153564 | IIEES SC | AKL | Z | 180 | 1 | 2020-05-04 13:08:34 | 2020-05-06 01:38:00 | n |
| 153565 | IIEES SC | MRVT | Z | 210 | 1 | 2020-05-04 13:08:36 | 2020-05-06 01:38:00 | n |
| 153566 | IIEES SC | SHRO | Z | 3.3 | 1 | 2020-05-04 13:08:46 | 2020-05-06 01:38:00 | n |
| 153567 | IIEES SC | TBJM | Z | 62 | 1 | 2020-05-04 13:09:37 | 2020-05-06 01:38:00 | n |
| 153568 | IIEES SC | TABS | Z | 16 | 1 | 2020-05-04 13:09:58 | 2020-05-06 01:38:00 | n |
| 153569 | IIEES SC | SHRT | Z | 8.3 | 1 | 2020-05-04 13:10:17 | 2020-05-06 01:38:00 | n |
| 153570 | IIEES SC | BSRN | Z | 2.3 | 1 | 2020-05-04 13:11:08 | 2020-05-06 01:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | IP | I | 2020-05-04 13:07:55 | 0.1 | y | 44 | 331 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-05-04 13:08:05 | -0.7 | y | 111 | 181 | |||
| IIEES SC | AKL | Z | IP | I | 2020-05-04 13:08:09 | -0.8 | y | 133 | 131 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-05-04 13:08:11 | -0.2 | y | 144 | 283 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-04 13:08:22 | 0.5 | y | 211 | 224 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-05-04 13:08:38 | 1 | y | 333 | 134 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-04 13:08:41 | 2.1 | n | 4 | 355 | 254 | ||
| IIEES SC | TABS | Z | IP | I | 2020-05-04 13:08:48 | 1.5 | y | 411 | 187 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-05-04 13:08:55 | 0.1 | y | 478 | 150 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-05-04 13:09:12 | 0.1 | y | 611 | 167 | |||
