Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-05-04 07:17:43.5 |
| Date & Time (Local) | 1399/2/15 11:47:43.5 |
| Location | Lat:37.39 Lon: 56.65 |
| Region | Khorasan(north) Province, 31 km South-West of Ashkhaneh |
Nearest Cities |
|
| 18 km North West of Shogan, Khorasan(north) Province | |
| 31 km South West of Ashkhaneh, Khorasan(north) Province | |
| 43 km South West of Pish qaleh, Khorasan(north) Province | |
| 48 km South East of Garmab, Khorasan(north) Province | |
| 54 km North East of Jajarm, Khorasan(north) Province | |
| Depth | 10 km |
| Agency | |

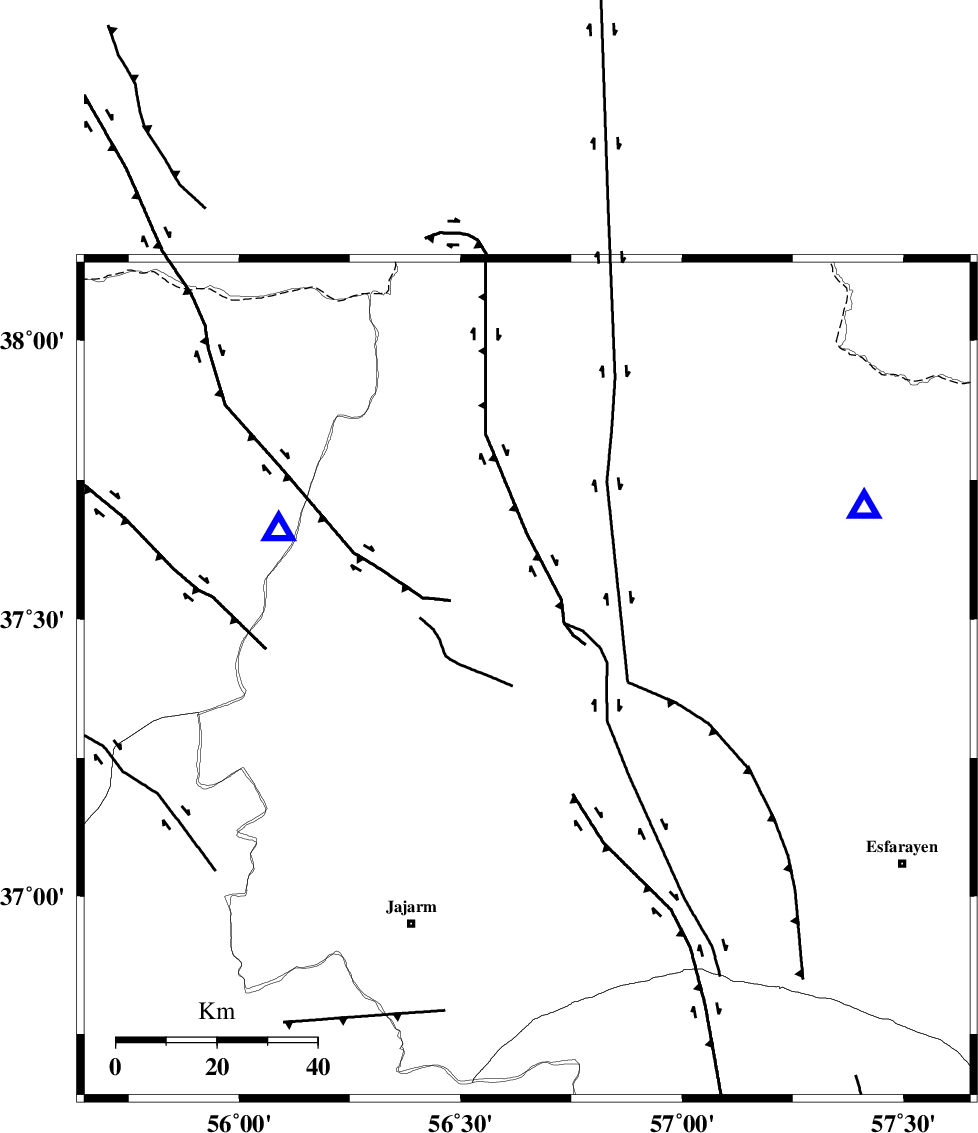

Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 5 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 26 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 37 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153571 | IIEES SC | MRVT | Z | 400 | 1 | 2020-05-04 07:18:06 | 2020-05-06 01:42:00 | n |
| 153572 | IIEES SC | BJRD | Z | 190 | 1 | 2020-05-04 07:18:12 | 2020-05-06 01:42:00 | n |
| 153573 | IIEES SC | SBZV | Z | 100 | 1 | 2020-05-04 07:18:35 | 2020-05-06 01:42:00 | n |
| 153574 | IIEES SC | SHRO | Z | 3.3 | 1 | 2020-05-04 07:18:36 | 2020-05-06 01:42:00 | n |
| 153575 | IIEES SC | AKL | Z | 100 | 1 | 2020-05-04 07:18:58 | 2020-05-06 01:42:00 | n |
| 153576 | IIEES SC | TABS | Z | 2.2 | 1 | 2020-05-04 07:20:04 | 2020-05-06 01:42:00 | n |
| 153577 | IIEES SC | SHRT | Z | 5.3 | 1 | 2020-05-04 07:20:13 | 2020-05-06 01:42:00 | n |
| 153578 | IIEES SC | YZKH | Z | 11 | 1 | 2020-05-04 07:19:58 | 2020-05-06 01:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | IP | I | 2020-05-04 07:17:53 | 0 | y | 55 | 301 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-05-04 07:17:56 | 0 | y | 77 | 63 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-05-04 07:18:06 | -0.4 | y | 144 | 143 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-04 07:18:10 | -0.1 | y | 166 | 200 | |||
| IIEES SC | AKL | Z | IP | I | 2020-05-04 07:18:17 | 0.5 | y | 211 | 115 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-04 07:18:27 | 2.5 | n | 4 | 266 | 249 | ||
| IIEES SC | TABS | Z | IP | I | 2020-05-04 07:18:43 | -0.3 | y | 422 | 174 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-05-04 07:18:57 | 0 | y | 533 | 142 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-05-04 07:19:05 | 0.5 | y | 589 | 199 | |||
