Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2020-05-07 19:00:16.9 |
| Date & Time (Local) | 1399/2/18 23:30:16.9 |

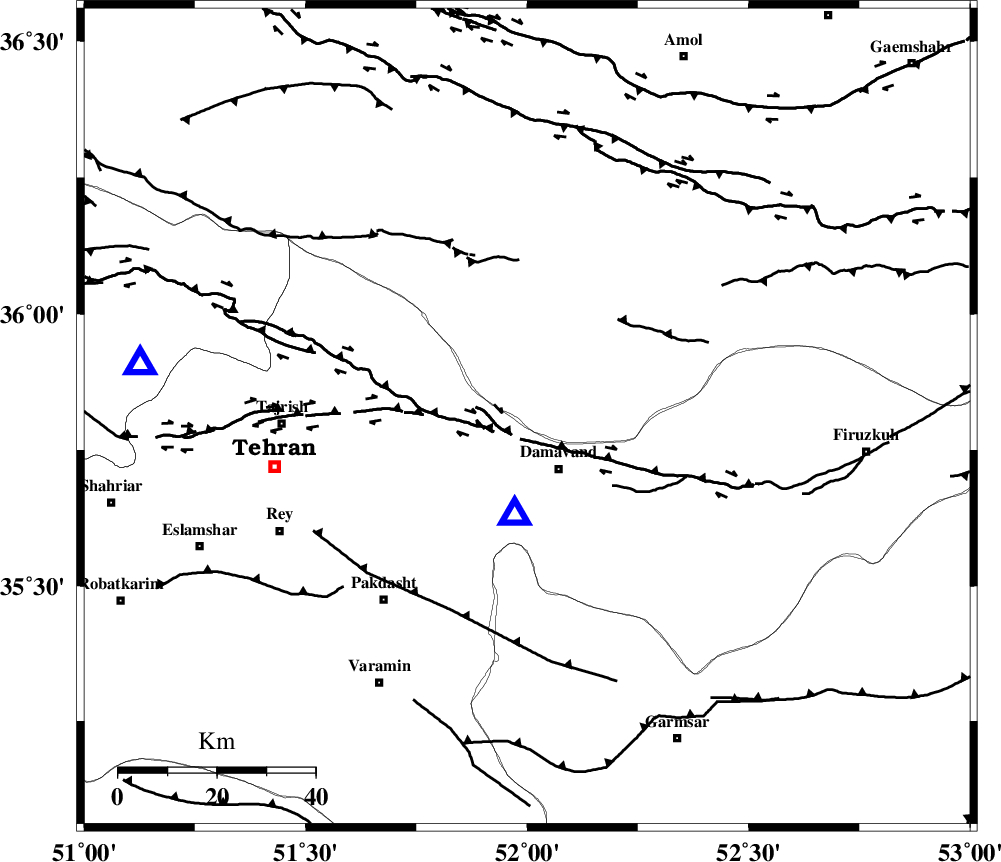

| Location | Lat:35.81 Lon: 52 |
| Region | Mazandaran Province, 12 km of Damavand |
Nearest Cities |
|
| 5 km North of Abali, Tehran Province | |
| 12 km North of Damavand, Tehran Province | |
| 14 km North East of Bumehen, Tehran Province | |
| 14 km North East of Rudehen, Tehran Province | |
| 17 km West of Rineh, Mazandaran Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 8 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 19 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 39 km | |
| Number of Phases | 15 |
| RMS | 0.6 |
| Number of Stations | 13 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153619 | IIEES SC | DAMV | Z | 8300 | 1 | 2020-05-07 19:00:23 | 2020-05-08 01:46:00 | n |
| 153620 | IIEES SC | CHTH | Z | 270 | 1 | 2020-05-07 19:00:36 | 2020-05-08 01:46:00 | n |
| 153621 | IIEES SC | THKV | Z | 400 | 1 | 2020-05-07 19:00:50 | 2020-05-08 01:46:00 | n |
| 153622 | IIEES SC | GHVR | Z | 810 | 1 | 2020-05-07 19:01:27 | 2020-05-08 01:46:00 | n |
| 153623 | IIEES SC | ANJ | Z | 50 | 1 | 2020-05-07 19:01:05 | 2020-05-08 01:46:00 | n |
| 153624 | IIEES SC | GLO | Z | 330 | 1 | 2020-05-07 19:01:19 | 2020-05-08 01:46:00 | n |
| 153625 | IIEES SC | KHMZ | Z | 50 | 1 | 2020-05-07 19:01:41 | 2020-05-08 01:46:00 | n |
| 153626 | IIEES SC | ZNJK | Z | 11 | 1 | 2020-05-07 19:01:43 | 2020-05-08 01:46:00 | n |
| 153627 | IIEES SC | NASN | Z | 24 | 1 | 2020-05-07 19:02:01 | 2020-05-08 01:46:00 | n |
| 153628 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-05-07 19:03:11 | 2020-05-08 01:46:00 | n |
| 153629 | IIEES SC | MRVT | Z | 5.5 | 1 | 2020-05-07 19:02:25 | 2020-05-08 01:46:00 | n |
| 153630 | IIEES SC | YZKH | Z | 9 | 1 | 2020-05-07 19:02:36 | 2020-05-08 01:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-05-07 19:00:20 | -0.3 | y | 22 | 188 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-07 19:00:31 | 0 | y | 77 | 278 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-07 19:00:35 | 0.6 | y | 100 | 277 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-07 19:00:43 | -0.1 | y | 166 | 205 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-05-07 19:00:46 | 0 | y | 177 | 102 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-07 19:00:47 | 0.5 | y | 177 | 65 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-07 19:00:52 | -0.4 | y | 222 | 267 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-05-07 19:00:55 | 2.5 | n | 4 | 222 | 303 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-07 19:01:02 | 0.8 | y | 300 | 219 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-05-07 19:01:03 | -0.8 | y | 311 | 288 | |||
| IIEES SC | NASN | Z | IP | I | 2020-05-07 19:01:09 | 1.5 | y | 344 | 167 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-07 19:01:09 | -0.6 | y | 366 | 86 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-05-07 19:01:16 | -0.5 | y | 422 | 61 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-07 19:01:23 | 5.2 | n | 4 | 433 | 259 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-05-07 19:01:20 | -0.7 | y | 444 | 148 | |||
