Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2020-05-07 20:42:12.1 |
| Date & Time (Local) | 1399/2/19 01:12:12.1 |

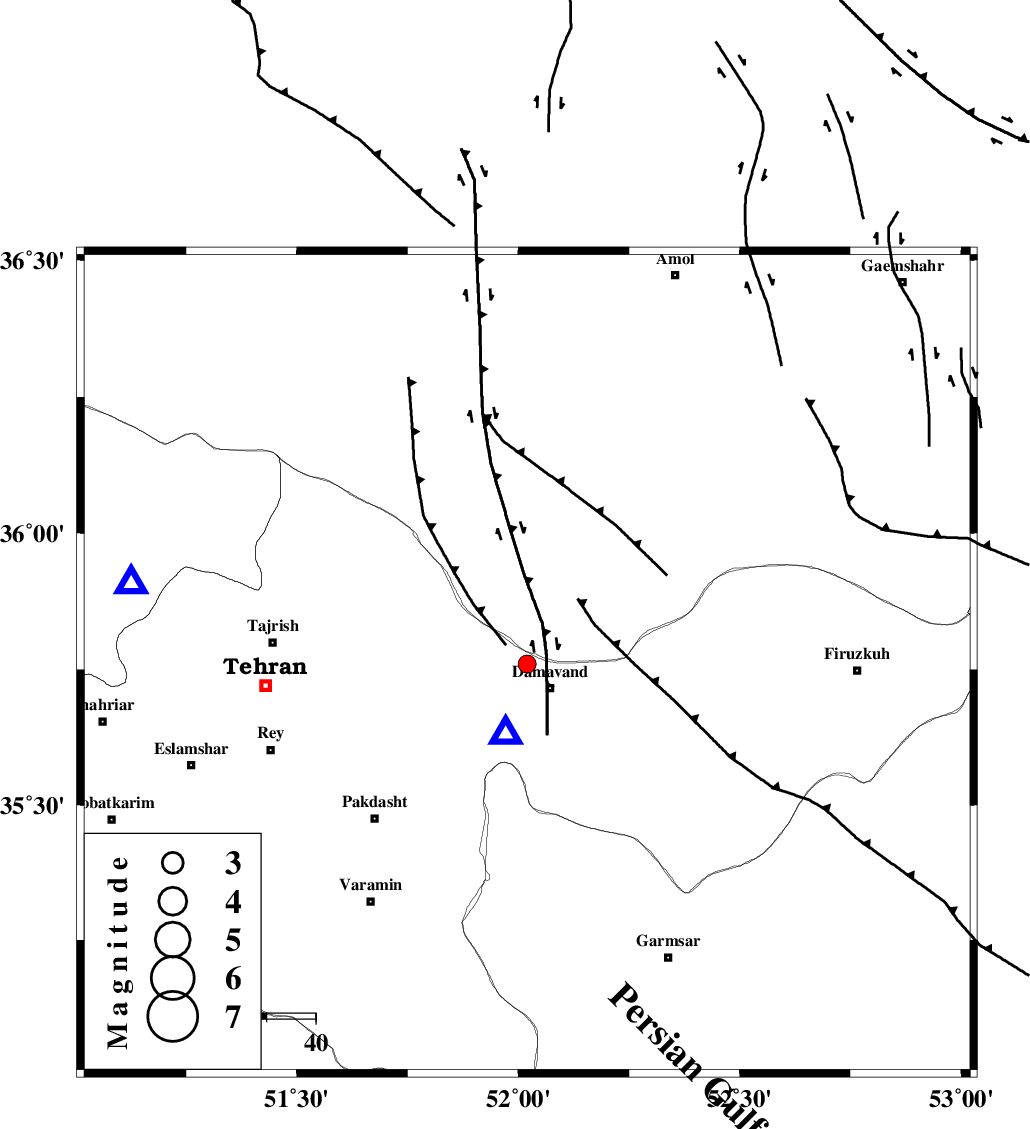

| Location | Lat:35.76 Lon: 52.02 |
| Region | Tehran Province, 7 km of Damavand |
Nearest Cities |
|
| 1 km of Abali, Tehran Province | |
| 7 km North of Damavand, Tehran Province | |
| 12 km North of Ab sard, Tehran Province | |
| 13 km North East of Rudehen, Tehran Province | |
| 14 km North East of Bumehen, Tehran Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 3 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 38 km | |
| Number of Phases | 11 |
| RMS | 1.5 |
| Number of Stations | 9 |
| Error in Latitude | >0 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153631 | IIEES SC | DAMV | Z | 2500 | 1 | 2020-05-07 20:42:20 | 2020-05-08 01:56:00 | n |
| 153632 | IIEES SC | CHTH | Z | 95 | 1 | 2020-05-07 20:42:38 | 2020-05-08 01:56:00 | n |
| 153633 | IIEES SC | THKV | Z | 190 | 1 | 2020-05-07 20:42:46 | 2020-05-08 01:56:00 | n |
| 153634 | IIEES SC | GHVR | Z | 700 | 1 | 2020-05-07 20:43:00 | 2020-05-08 01:56:00 | n |
| 153635 | IIEES SC | QABG | Z | 7.8 | 1 | 2020-05-07 20:43:18 | 2020-05-08 01:56:00 | n |
| 153636 | IIEES SC | GIDE | Z | 47 | 1 | 2020-05-07 20:43:29 | 2020-05-08 01:56:00 | n |
| 153637 | IIEES SC | KHMZ | Z | 12 | 1 | 2020-05-07 20:43:35 | 2020-05-08 01:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | N | IS | I | 2020-05-07 20:42:18 | 0 | y | 11 | 199 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-05-07 20:42:12 | -3.2 | y | 11 | 199 | |||
| IIEES SC | CHTH | N | IS | I | 2020-05-07 20:42:36 | -1 | y | 77 | 282 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-07 20:42:27 | 0.2 | y | 77 | 282 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-07 20:42:31 | 1.1 | y | 100 | 280 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-07 20:42:39 | 1 | y | 155 | 207 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-05-07 20:42:42 | 1.2 | n | 4 | 177 | 101 | ||
| IIEES SC | QABG | Z | IP | I | 2020-05-07 20:42:48 | 0.8 | y | 222 | 269 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-05-07 20:42:47 | -1.6 | y | 233 | 304 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-07 20:42:59 | 2.2 | y | 289 | 220 | |||
| IIEES SC | NASN | Z | IP | I | 2020-05-07 20:43:07 | 5 | n | 4 | 333 | 168 | ||
