Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2020-05-07 21:49:13.6 |
| Date & Time (Local) | 1399/2/19 02:19:13.6 |

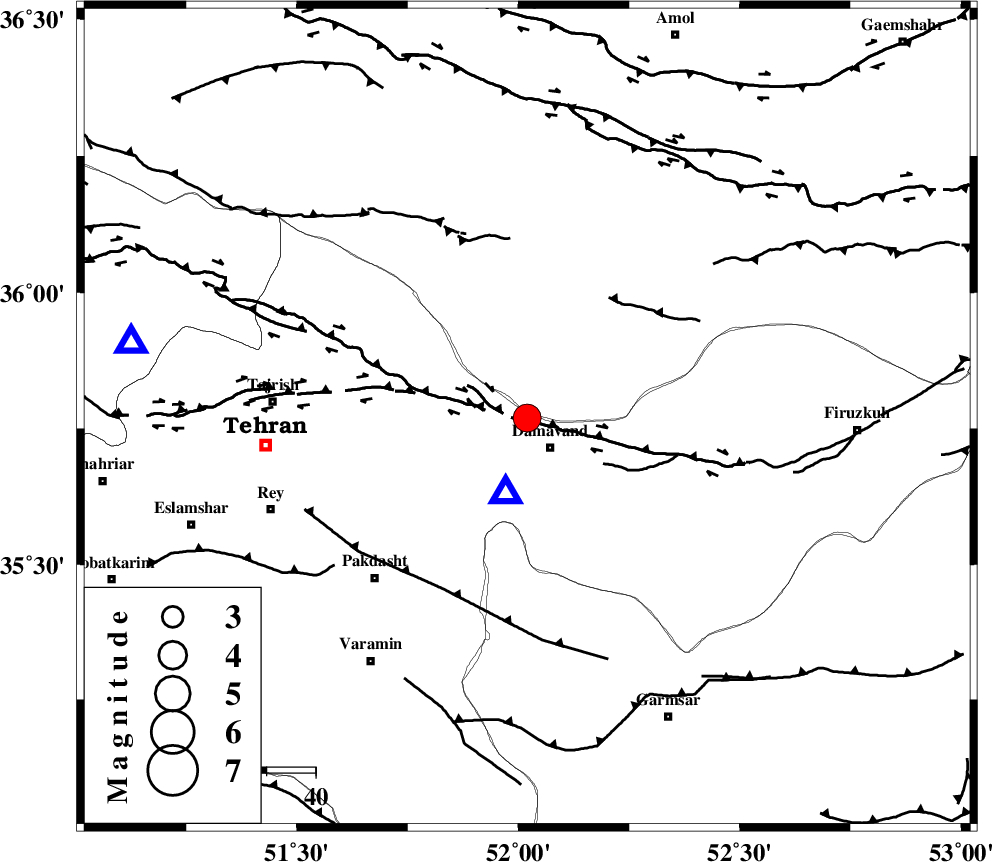

| Location | Lat:35.77 Lon: 52.02 |
| Region | Tehran Province, 8 km of Damavand |
Nearest Cities |
|
| 1 km North of Abali, Tehran Province | |
| 8 km North of Damavand, Tehran Province | |
| 13 km North of Ab sard, Tehran Province | |
| 14 km North East of Rudehen, Tehran Province | |
| 14 km North East of Bumehen, Tehran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 3 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 39 km | |
| Number of Phases | 21 |
| RMS | 0.7 |
| Number of Stations | 21 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153663 | IIEES SC | DAMV | Z | 87000 | 1 | 2020-05-07 21:49:20 | 2020-05-08 02:33:00 | n |
| 153664 | IIEES SC | CHTH | Z | 1600 | 1 | 2020-05-07 21:49:38 | 2020-05-08 02:33:00 | n |
| 153665 | IIEES SC | THKV | Z | 2200 | 1 | 2020-05-07 21:49:46 | 2020-05-08 02:33:00 | n |
| 153666 | IIEES SC | GHVR | Z | 2200 | 1 | 2020-05-07 21:49:55 | 2020-05-08 02:33:00 | n |
| 153667 | IIEES SC | GLO | Z | 2100 | 1 | 2020-05-07 21:50:17 | 2020-05-08 02:33:00 | n |
| 153668 | IIEES SC | QABG | Z | 97 | 1 | 2020-05-07 21:50:19 | 2020-05-08 02:33:00 | n |
| 153669 | IIEES SC | GIDE | Z | 850 | 1 | 2020-05-07 21:50:28 | 2020-05-08 02:33:00 | n |
| 153670 | IIEES SC | KHMZ | Z | 440 | 1 | 2020-05-07 21:50:38 | 2020-05-08 02:33:00 | n |
| 153671 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-05-07 21:51:42 | 2020-05-08 02:33:00 | n |
| 153672 | IIEES SC | MRVT | Z | 33 | 1 | 2020-05-07 21:51:21 | 2020-05-08 02:33:00 | n |
| 153673 | IIEES SC | SNGE | Z | 32 | 1 | 2020-05-07 21:51:02 | 2020-05-08 02:33:00 | n |
| 153674 | IIEES SC | YZKH | Z | 59 | 1 | 2020-05-07 21:51:31 | 2020-05-08 02:33:00 | n |
| 153675 | IIEES SC | GTMR | Z | 61 | 1 | 2020-05-07 21:51:32 | 2020-05-08 02:33:00 | n |
| 153676 | IIEES SC | KLNJ | Z | 28 | 1 | 2020-05-07 21:51:59 | 2020-05-08 02:33:00 | n |
| 153677 | IIEES SC | ILBA | Z | 7.2 | 1 | 2020-05-07 21:52:15 | 2020-05-08 02:33:00 | n |
| 153678 | IIEES SC | ILBA | Z | 21 | 0.77 | 2020-05-07 21:50:55 | 2020-05-08 02:33:00 | n |
| 153679 | IIEES SC | BSRN | Z | 5.4 | 1 | 2020-05-07 21:52:16 | 2020-05-08 02:33:00 | n |
| 153680 | IIEES SC | BSRN | Z | 8.2 | 0.68 | 2020-05-07 21:51:09 | 2020-05-08 02:33:00 | n |
| 153681 | IIEES SC | SHRT | Z | 6.9 | 1 | 2020-05-07 21:53:22 | 2020-05-08 02:33:00 | n |
| 153682 | IIEES SC | SHRT | Z | 5.5 | 0.51 | 2020-05-07 21:51:11 | 2020-05-08 02:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-05-07 21:49:17 | -0.1 | y | 11 | 195 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-07 21:49:27 | -0.7 | y | 77 | 281 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-07 21:49:31 | 0.1 | y | 100 | 279 | |||
| IIEES SC | GHVR | N | IP | I | 2020-05-07 21:49:40 | 0.3 | y | 155 | 206 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-07 21:49:44 | 0.4 | y | 177 | 64 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-07 21:49:48 | -0.8 | y | 222 | 268 | |||
| IIEES SC | GIDE | N | IP | I | 2020-05-07 21:49:49 | -0.5 | y | 233 | 304 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-07 21:49:58 | 0.5 | y | 289 | 220 | |||
| IIEES SC | ZNJK | N | IP | I | 2020-05-07 21:50:03 | 2 | y | 311 | 288 | |||
| IIEES SC | NASN | Z | IP | I | 2020-05-07 21:50:03 | 0 | y | 333 | 168 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-07 21:50:06 | 0.1 | y | 366 | 86 | |||
| IIEES SC | MRVT | N | IP | I | 2020-05-07 21:50:14 | 0.4 | y | 422 | 60 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-07 21:50:16 | 1.4 | y | 433 | 260 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-05-07 21:50:16 | -0.4 | y | 444 | 148 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-05-07 21:50:19 | 1.2 | y | 455 | 216 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-05-07 21:50:24 | -1.5 | y | 522 | 209 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-05-07 21:50:25 | -1.3 | y | 522 | 66 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-05-07 21:50:28 | 0.5 | y | 533 | 184 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-05-07 21:50:34 | 0 | y | 578 | 246 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-05-07 21:50:58 | -0.2 | y | 778 | 123 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-05-07 21:50:59 | -0.6 | y | 789 | 107 | |||
