Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-05-09 22:18:03.9 |
| Date & Time (Local) | 1399/2/21 02:48:03.9 |
| Location | Lat:35.76 Lon: 52 |
| Region | Tehran Province, 8 km of Damavand |
Nearest Cities |
|
| 1 km of Abali, Tehran Province | |
| 8 km North of Damavand, Tehran Province | |
| 12 km North East of Rudehen, Tehran Province | |
| 12 km North East of Bumehen, Tehran Province | |
| 12 km North of Ab sard, Tehran Province | |
| Depth | 10 km |
| Agency | |

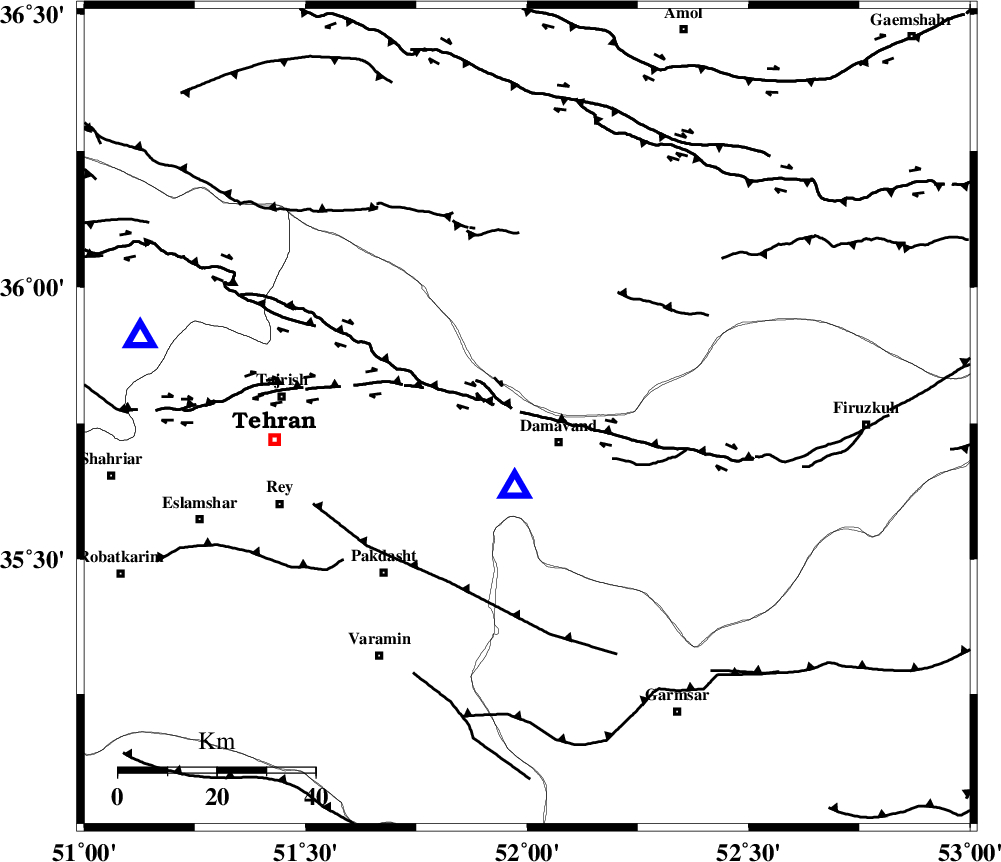

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 5 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 21 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 37 km | |
| Number of Phases | 14 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 153717 | IIEES SC | DAMV | Z | 6100 | 1 | 2020-05-09 22:18:10 | 2020-05-11 01:03:00 | n |
| 153718 | IIEES SC | CHTH | Z | 570 | 1 | 2020-05-09 22:18:28 | 2020-05-11 01:03:00 | n |
| 153719 | IIEES SC | THKV | Z | 1100 | 1 | 2020-05-09 22:18:36 | 2020-05-11 01:03:00 | n |
| 153720 | IIEES SC | GHVR | Z | 680 | 1 | 2020-05-09 22:18:58 | 2020-05-11 01:03:00 | n |
| 153721 | IIEES SC | GLO | Z | 430 | 1 | 2020-05-09 22:19:06 | 2020-05-11 01:03:00 | n |
| 153722 | IIEES SC | GIDE | Z | 240 | 1 | 2020-05-09 22:19:19 | 2020-05-11 01:03:00 | n |
| 153723 | IIEES SC | KHMZ | Z | 220 | 1 | 2020-05-09 22:19:27 | 2020-05-11 01:03:00 | n |
| 153724 | IIEES SC | YZKH | Z | 12 | 1 | 2020-05-09 22:20:20 | 2020-05-11 01:03:00 | n |
| 153725 | IIEES SC | AMIS | Z | 160 | 1 | 2020-05-09 22:19:56 | 2020-05-11 01:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-05-09 22:18:07 | 0.1 | y | 11 | 191 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-05-09 22:18:17 | -0.7 | y | 77 | 282 | |||
| IIEES SC | THKV | Z | IP | I | 2020-05-09 22:18:21 | 0.1 | y | 100 | 280 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-05-09 22:18:30 | 0.1 | y | 155 | 206 | |||
| IIEES SC | GLO | Z | IP | I | 2020-05-09 22:18:34 | 0.2 | y | 189 | 63 | |||
| IIEES SC | QABG | Z | IP | I | 2020-05-09 22:18:38 | -0.7 | y | 222 | 269 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-05-09 22:18:41 | 1.2 | y | 233 | 305 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-05-09 22:18:48 | 0.1 | y | 289 | 220 | |||
| IIEES SC | NASN | Z | IP | I | 2020-05-09 22:18:55 | 1.5 | y | 333 | 167 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-05-09 22:18:56 | -0.7 | y | 366 | 86 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-05-09 22:19:00 | -5.5 | n | 4 | 433 | 260 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-05-09 22:19:06 | -0.8 | y | 444 | 147 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-05-09 22:19:00 | -7.5 | n | 4 | 455 | 216 | ||
| IIEES SC | AMIS | Z | IP | I | 2020-05-09 22:19:15 | -1.5 | y | 522 | 209 | |||
