Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2020-06-06 15:32:21.5 |
| Date & Time (Local) | 1399/3/17 20:02:21.5 |
| Location | Lat:33.95 Lon: 60.26 |
| Region | Khorasan(center) Province, 70 km South-East of Khaf |
Nearest Cities |
|
| 13 km South of Sirkhun, Khorasan(center) Province | |
| 25 km South West of Chahkand, Khorasan(center) Province | |
| 28 km South East of Pasgah-e chazul, Khorasan(center) Province | |
| 31 km South of Niyazabad, Khorasan(center) Province | |
| 35 km North of Shahdokht, Khorasan(south) Province | |
| Depth | 10 km |
| Agency | |

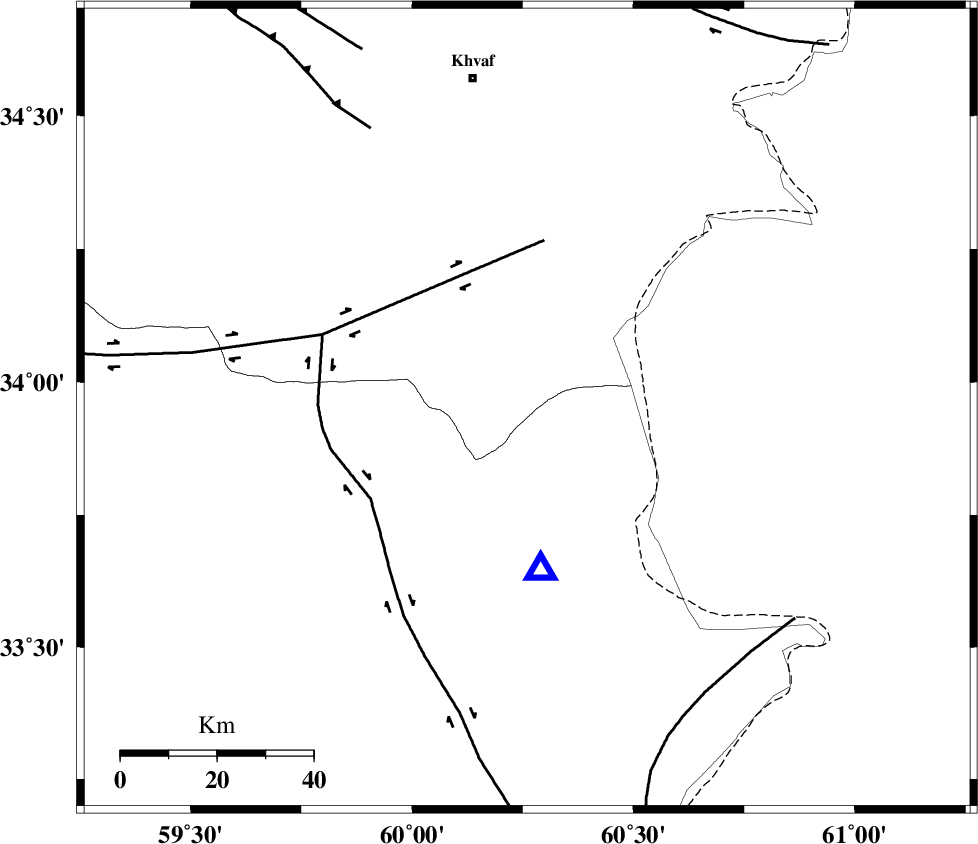

Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 35 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 38 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 67 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154100 | IIEES SC | SHRT | Z | 3900 | 1 | 2020-06-06 15:32:33 | 2020-06-07 08:41:00 | n |
| 154101 | IIEES SC | TBJM | Z | 2700 | 1 | 2020-06-06 15:33:06 | 2020-06-07 08:41:00 | n |
| 154102 | IIEES SC | BSRN | Z | 31 | 1 | 2020-06-06 15:33:42 | 2020-06-07 08:41:00 | n |
| 154103 | IIEES SC | TABS | Z | 57 | 1 | 2020-06-06 15:33:55 | 2020-06-07 08:41:00 | n |
| 154104 | IIEES SC | AKL | Z | 45 | 1 | 2020-06-06 15:34:09 | 2020-06-07 08:41:00 | n |
| 154105 | IIEES SC | KAGH | Z | 74 | 1 | 2020-06-06 15:34:00 | 2020-06-07 08:41:00 | n |
| 154106 | IIEES SC | SBZV | Z | 23 | 1 | 2020-06-06 15:34:09 | 2020-06-07 08:41:00 | n |
| 154107 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-06-06 15:34:49 | 2020-06-07 08:41:00 | n |
| 154108 | IIEES SC | YZKH | Z | 16 | 1 | 2020-06-06 15:35:18 | 2020-06-07 08:41:00 | n |
| 154109 | IIEES SC | YZKH | Z | 15 | 0.72 | 2020-06-06 15:34:07 | 2020-06-07 08:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SHRT | E | IS | I | 2020-06-06 15:32:32 | -0.2 | y | 33 | 176 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-06 15:32:27 | 0.1 | y | 33 | 176 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-06 15:32:45 | 0 | y | 144 | 2 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-06-06 15:33:00 | 0.5 | y | 244 | 206 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-06 15:33:06 | 0.5 | y | 289 | 263 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-06 15:33:09 | -0.4 | y | 322 | 335 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-06-06 15:33:12 | 1.4 | y | 333 | 355 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-06 15:33:14 | -0.3 | y | 366 | 318 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-06 15:33:25 | -0.4 | y | 455 | 300 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-06 15:33:38 | -0.6 | y | 556 | 252 | |||
