Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2020-06-14 15:10:51.2 |
| Date & Time (Local) | 1399/3/25 19:40:51.2 |
| Location | Lat:35.72 Lon: 52.08 |
| Region | Tehran Province, 1 km of Damavand |
Nearest Cities |
|
| 1 km North of Damavand, Tehran Province | |
| 8 km of Abali, Tehran Province | |
| 10 km North of Ab sard, Tehran Province | |
| 13 km North of Mara, Tehran Province | |
| 19 km East of Rudehen, Tehran Province | |
| Depth | 10 km |
| Agency | |

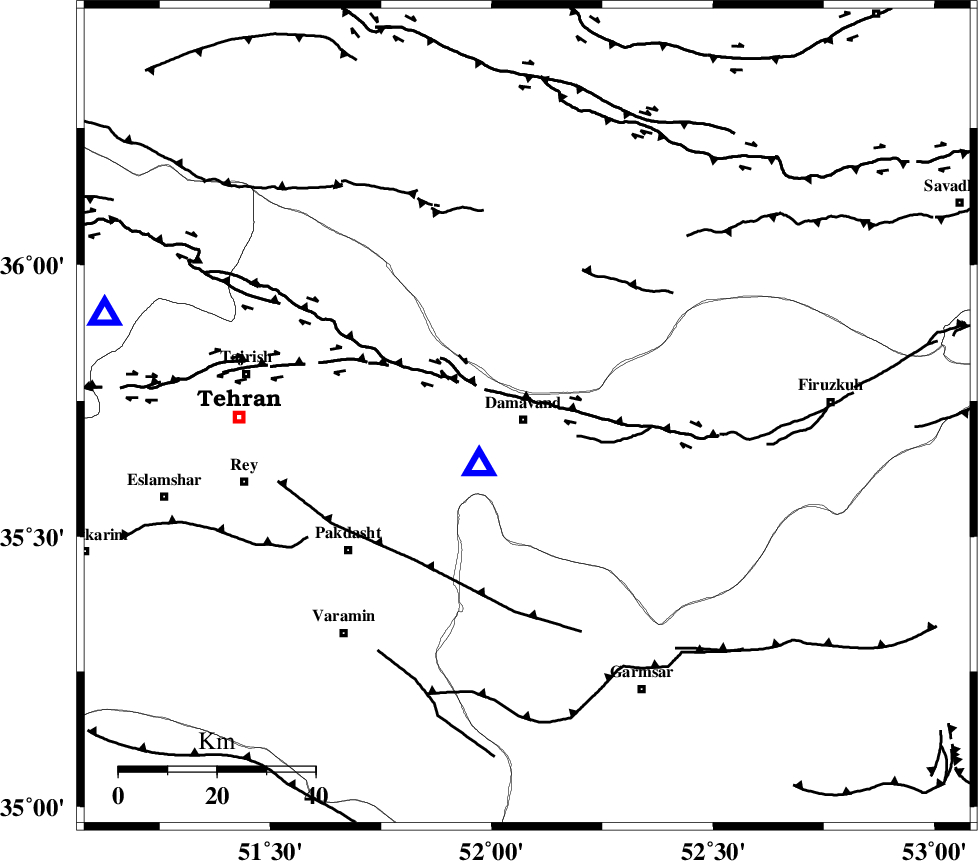

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 5 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 29 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 37 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154623 | IIEES SC | DAMV | Z | 3.5 | 1 | 2020-06-14 15:11:25 | 2020-06-15 08:06:00 | n |
| 154624 | IIEES SC | CHTH | Z | 100 | 1 | 2020-06-14 15:11:18 | 2020-06-15 08:06:00 | n |
| 154625 | IIEES SC | THKV | Z | 170 | 1 | 2020-06-14 15:11:26 | 2020-06-15 08:06:00 | n |
| 154626 | IIEES SC | GHVR | Z | 1100 | 1 | 2020-06-14 15:11:59 | 2020-06-15 08:06:00 | n |
| 154627 | IIEES SC | ANJ | Z | 29 | 1 | 2020-06-14 15:12:07 | 2020-06-15 08:06:00 | n |
| 154628 | IIEES SC | GLO | Z | 180 | 1 | 2020-06-14 15:11:56 | 2020-06-15 08:06:00 | n |
| 154629 | IIEES SC | ASAO | Z | 43 | 1 | 2020-06-14 15:11:58 | 2020-06-15 08:06:00 | n |
| 154630 | IIEES SC | GIDE | Z | 92 | 1 | 2020-06-14 15:12:06 | 2020-06-15 08:06:00 | n |
| 154631 | IIEES SC | KHMZ | Z | 20 | 1 | 2020-06-14 15:12:18 | 2020-06-15 08:06:00 | n |
| 154632 | IIEES SC | ZNJK | Z | 31 | 1 | 2020-06-14 15:12:54 | 2020-06-15 08:06:00 | n |
| 154633 | IIEES SC | NASN | Z | 14 | 1 | 2020-06-14 15:12:37 | 2020-06-15 08:06:00 | n |
| 154634 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-06-14 15:12:58 | 2020-06-15 08:06:00 | n |
| 154635 | IIEES SC | MRVT | Z | 12 | 1 | 2020-06-14 15:12:33 | 2020-06-15 08:06:00 | n |
| 154636 | IIEES SC | YZKH | Z | 12 | 1 | 2020-06-14 15:12:48 | 2020-06-15 08:06:00 | n |
| 154637 | IIEES SC | TABS | Z | 7.5 | 1 | 2020-06-14 15:12:34 | 2020-06-15 08:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-06-14 15:10:54 | -0.5 | y | 11 | 224 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-14 15:11:05 | -0.8 | y | 88 | 283 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-14 15:11:10 | -0.1 | y | 111 | 281 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-14 15:11:17 | 0.5 | y | 155 | 209 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-14 15:11:18 | -0.8 | y | 166 | 100 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-14 15:11:20 | -0.3 | y | 177 | 61 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-14 15:11:27 | 0.2 | y | 222 | 270 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-06-14 15:11:27 | 0 | y | 233 | 235 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-06-14 15:11:29 | 0.5 | y | 233 | 304 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-14 15:11:35 | -0.2 | y | 289 | 221 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-14 15:11:40 | 0.5 | y | 322 | 289 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-14 15:11:41 | 0.4 | y | 333 | 168 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-14 15:11:44 | 0.7 | y | 355 | 85 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-14 15:11:51 | 0.2 | y | 422 | 59 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-14 15:11:08 | -45 | n | 4 | 433 | 261 | ||
| IIEES SC | YZKH | Z | IP | I | 2020-06-14 15:11:53 | -0.2 | y | 433 | 148 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-14 15:11:47 | -8.6 | n | 4 | 455 | 217 | ||
| IIEES SC | TABS | Z | IP | I | 2020-06-14 15:12:03 | -0.1 | y | 511 | 116 | |||
