Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2020-06-22 17:31:15.0 |
| Date & Time (Local) | 1399/4/2 22:01:15.0 |

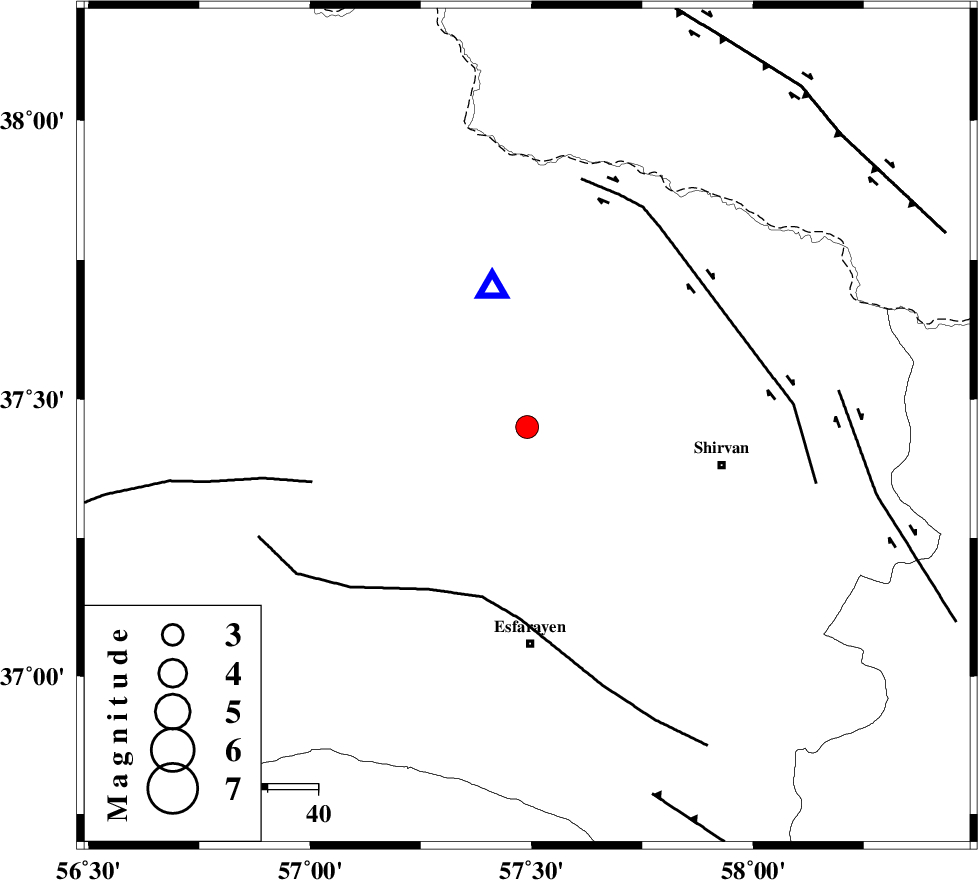

| Location | Lat:37.45 Lon: 57.49 |
| Region | Khorasan(north) Province, 14 km -East of Bojnurd |
Nearest Cities |
|
| 7 km of Hesar-egarmkhanh, Khorasan(north) Province | |
| 14 km East of Void, Khorasan(north) Province | |
| 14 km East of Bojnurd, Khorasan(north) Province | |
| 26 km North West of Zavarom, Khorasan(north) Province | |
| 33 km South West of Tukur, Khorasan(north) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 35 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 44 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 45 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154865 | IIEES SC | BJRD | Z | 1600 | 1 | 2020-06-22 17:31:25 | 2020-06-23 11:55:00 | n |
| 154866 | IIEES SC | SBZV | Z | 80 | 1 | 2020-06-22 17:31:56 | 2020-06-23 11:55:00 | n |
| 154867 | IIEES SC | MRVT | Z | 140 | 1 | 2020-06-22 17:32:00 | 2020-06-23 11:55:00 | n |
| 154868 | IIEES SC | AKL | Z | 200 | 1 | 2020-06-22 17:32:04 | 2020-06-23 11:55:00 | n |
| 154869 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-06-22 17:33:10 | 2020-06-23 11:55:00 | n |
| 154870 | IIEES SC | KAGH | Z | 73 | 1 | 2020-06-22 17:32:31 | 2020-06-23 11:55:00 | n |
| 154871 | IIEES SC | GLO | Z | 75 | 1 | 2020-06-22 17:33:13 | 2020-06-23 11:55:00 | n |
| 154872 | IIEES SC | TBJM | Z | 49 | 1 | 2020-06-22 17:33:07 | 2020-06-23 11:55:00 | n |
| 154873 | IIEES SC | TABS | Z | 17 | 1 | 2020-06-22 17:33:26 | 2020-06-23 11:55:00 | n |
| 154874 | IIEES SC | SHRT | Z | 6 | 1 | 2020-06-22 17:33:50 | 2020-06-23 11:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | IP | I | 2020-06-22 17:31:20 | 0 | y | 33 | 346 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-22 17:31:34 | -0.4 | y | 122 | 175 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-22 17:31:35 | -0.3 | y | 122 | 281 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-22 17:31:39 | -0.3 | y | 144 | 130 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-22 17:31:49 | 0.2 | y | 211 | 219 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-06-22 17:31:51 | 0.2 | y | 222 | 105 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-22 17:32:06 | 0.5 | y | 344 | 252 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-22 17:32:07 | 0.7 | y | 355 | 134 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-22 17:32:15 | 0 | y | 422 | 185 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-22 17:32:24 | -0.5 | y | 489 | 149 | |||
