Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2020-06-26 23:57:50.9 |
| Date & Time (Local) | 1399/4/7 04:27:50.9 |

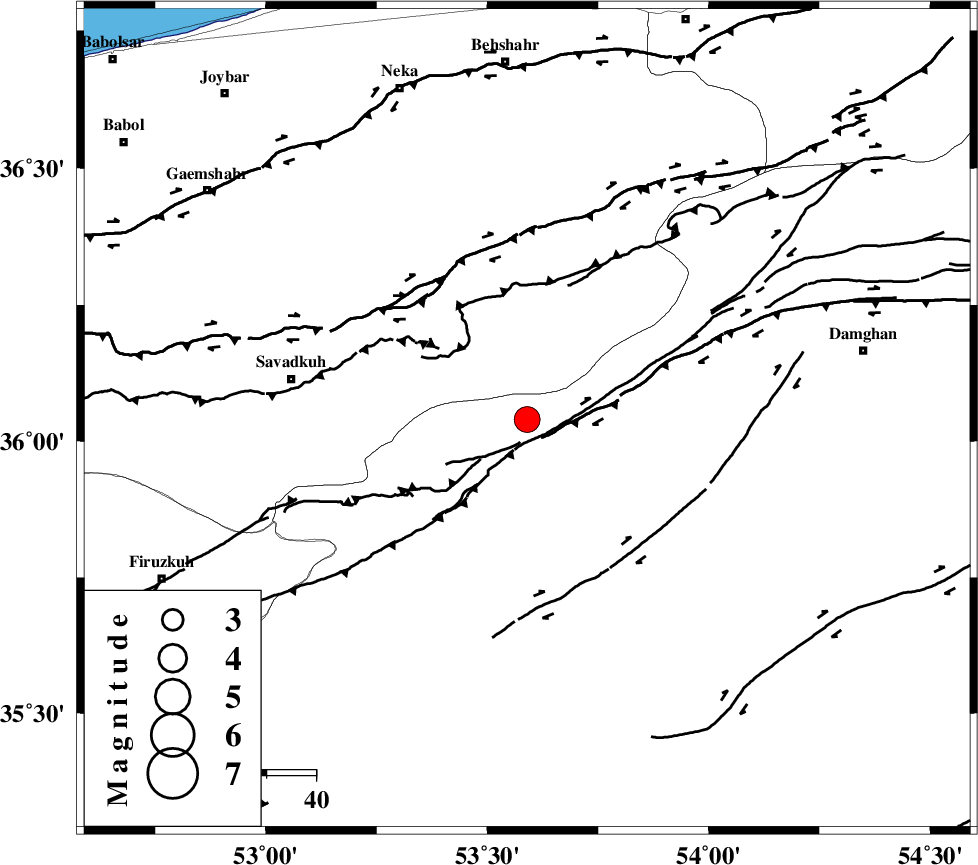

| Location | Lat:36.04 Lon: 53.59 |
| Region | Semnan Province, 49 km -East of Pol-E-Sefid |
Nearest Cities |
|
| 22 km South West of Talma darreh, Mazandaran Province | |
| 22 km South of Kiasar, Mazandaran Province | |
| 29 km North West of Darvar, Semnan Province | |
| 33 km East of Sangdeh, Mazandaran Province | |
| 34 km North East of Chashem, Semnan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 25 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 28 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 34 km | |
| Number of Phases | 23 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 154897 | IIEES SC | GLO | Z | 3800 | 1 | 2020-06-26 23:58:18 | 2020-06-27 08:47:00 | n |
| 154898 | IIEES SC | ANJ | Z | 290 | 1 | 2020-06-26 23:58:05 | 2020-06-27 08:47:00 | n |
| 154899 | IIEES SC | DAMV | Z | 5.3 | 1 | 2020-06-26 23:58:26 | 2020-06-27 08:47:00 | n |
| 154900 | IIEES SC | SHRO | Z | 2.5 | 1 | 2020-06-26 23:59:55 | 2020-06-27 08:47:00 | n |
| 154901 | IIEES SC | CHTH | Z | 160 | 1 | 2020-06-26 23:59:03 | 2020-06-27 08:47:00 | n |
| 154902 | IIEES SC | THKV | Z | 350 | 1 | 2020-06-26 23:59:10 | 2020-06-27 08:47:00 | n |
| 154903 | IIEES SC | GHVR | Z | 860 | 1 | 2020-06-26 23:59:13 | 2020-06-27 08:47:00 | n |
| 154904 | IIEES SC | GIDE | Z | 260 | 1 | 2020-06-26 23:59:45 | 2020-06-27 08:47:00 | n |
| 154905 | IIEES SC | SBZV | Z | 39 | 1 | 2020-06-27 00:00:04 | 2020-06-27 08:47:00 | n |
| 154906 | IIEES SC | ASAO | Z | 96 | 1 | 2020-06-26 23:59:46 | 2020-06-27 08:47:00 | n |
| 154907 | IIEES SC | NASN | Z | 63 | 1 | 2020-06-26 23:59:48 | 2020-06-27 08:47:00 | n |
| 154908 | IIEES SC | BJRD | Z | 24 | 1 | 2020-06-26 23:59:55 | 2020-06-27 08:47:00 | n |
| 154909 | IIEES SC | YZKH | Z | 47 | 1 | 2020-06-26 23:59:58 | 2020-06-27 08:47:00 | n |
| 154910 | IIEES SC | TABS | Z | 67 | 1 | 2020-06-27 00:00:09 | 2020-06-27 08:47:00 | n |
| 154911 | IIEES SC | KHMZ | Z | 42 | 1 | 2020-06-27 00:00:05 | 2020-06-27 08:47:00 | n |
| 154912 | IIEES SC | ZNJK | Z | 21 | 1 | 2020-06-26 23:59:55 | 2020-06-27 08:47:00 | n |
| 154913 | IIEES SC | GTMR | Z | 21 | 1 | 2020-06-27 00:01:09 | 2020-06-27 08:47:00 | n |
| 154914 | IIEES SC | GTMR | Z | 22 | 1.09 | 2020-06-26 23:59:39 | 2020-06-27 08:47:00 | n |
| 154915 | IIEES SC | SNGE | Z | 11 | 1 | 2020-06-27 00:00:53 | 2020-06-27 08:47:00 | n |
| 154916 | IIEES SC | SNGE | Z | 11 | 0.7 | 2020-06-26 23:59:40 | 2020-06-27 08:47:00 | n |
| 154917 | IIEES SC | KAGH | Z | 17 | 1 | 2020-06-27 00:01:00 | 2020-06-27 08:47:00 | n |
| 154918 | IIEES SC | KAGH | Z | 3.7 | 1.12 | 2020-06-26 23:59:37 | 2020-06-27 08:47:00 | n |
| 154919 | IIEES SC | KLNJ | Z | 20 | 1 | 2020-06-27 00:01:02 | 2020-06-27 08:47:00 | n |
| 154920 | IIEES SC | KLNJ | Z | 14 | 0.87 | 2020-06-26 23:59:40 | 2020-06-27 08:47:00 | n |
| 154921 | IIEES SC | TBJM | Z | 13 | 1 | 2020-06-27 00:01:27 | 2020-06-27 08:47:00 | n |
| 154922 | IIEES SC | TBJM | Z | 5.1 | 0.82 | 2020-06-26 23:59:38 | 2020-06-27 08:47:00 | n |
| 154923 | IIEES SC | AMIS | Z | 43 | 1 | 2020-06-27 00:01:19 | 2020-06-27 08:47:00 | n |
| 154924 | IIEES SC | AMIS | Z | 17 | 0.69 | 2020-06-26 23:59:47 | 2020-06-27 08:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2020-06-26 23:58:00 | -0.4 | y | 55 | 23 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-26 23:58:02 | -0.9 | y | 66 | 155 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-26 23:58:15 | -1.1 | y | 155 | 253 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-26 23:58:25 | -0.4 | y | 222 | 91 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-26 23:58:27 | 0 | y | 222 | 266 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-26 23:58:30 | 0.9 | y | 244 | 267 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-26 23:58:33 | 0 | y | 278 | 231 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-06-26 23:58:41 | -1 | y | 344 | 287 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-26 23:58:44 | 0.1 | y | 366 | 84 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-26 23:58:44 | -0.2 | n | 4 | 366 | 264 | ||
| IIEES SC | ASAO | Z | IP | I | 2020-06-26 23:58:44 | 0 | y | 366 | 243 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-26 23:58:44 | -0.9 | y | 366 | 191 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-06-26 23:58:48 | 0.8 | y | 389 | 62 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-26 23:58:50 | -0.3 | y | 411 | 167 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-26 23:58:50 | -0.2 | y | 422 | 129 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-06-26 23:58:52 | 0.8 | y | 422 | 232 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-26 23:58:54 | 0.1 | y | 444 | 279 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-06-26 23:59:10 | 0.8 | y | 567 | 226 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-06-26 23:59:11 | 1.2 | y | 578 | 259 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-06-26 23:59:11 | -0.1 | y | 578 | 80 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-06-26 23:59:12 | 0.5 | y | 589 | 198 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-26 23:59:16 | 0.5 | y | 611 | 98 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-06-26 23:59:17 | 0.8 | y | 633 | 219 | |||
