Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2020-06-28 13:48:59.9 |
| Date & Time (Local) | 1399/4/8 18:18:59.9 |

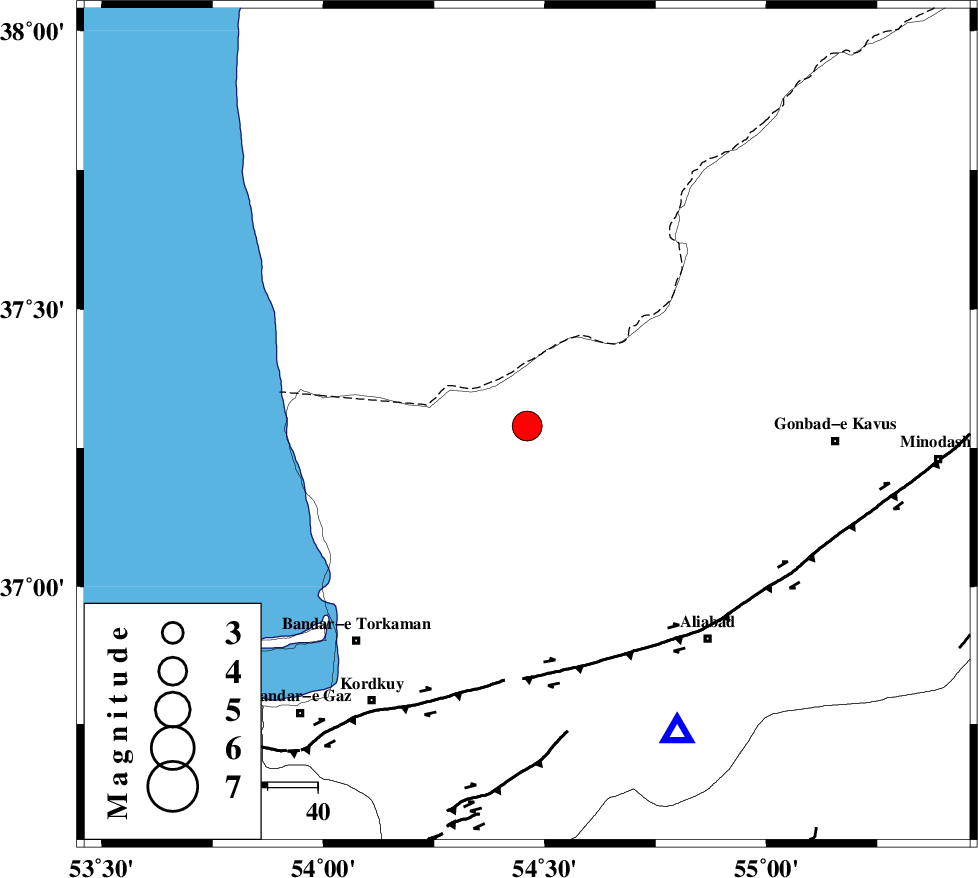

| Location | Lat:37.29 Lon: 54.46 |
| Region | Golestan Province, 31 km North of Aq Qaleh |
Nearest Cities |
|
| 30 km South West of Enchehborun, Golestan Province | |
| 31 km North of Aq Qaleh, Golestan Province | |
| 31 km North of Qanqarmeh, Golestan Province | |
| 33 km North West of Gariduji, Golestan Province | |
| 37 km North West of Nodeh malek, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 49 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 76 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 80 km | |
| Number of Phases | 22 |
| RMS | 0.9 |
| Number of Stations | 23 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155092 | IIEES SC | GLO | Z | 19000 | 1 | 2020-06-28 13:49:45 | 2020-06-28 06:40:00 | n |
| 155093 | IIEES SC | MRVT | Z | 3200 | 1 | 2020-06-28 13:49:47 | 2020-06-28 06:40:00 | n |
| 155094 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-06-28 13:50:19 | 2020-06-28 06:40:00 | n |
| 155095 | IIEES SC | ANJ | Z | 1100 | 1 | 2020-06-28 13:50:33 | 2020-06-28 06:40:00 | n |
| 155096 | IIEES SC | BJRD | Z | 290 | 1 | 2020-06-28 13:50:28 | 2020-06-28 06:40:00 | n |
| 155097 | IIEES SC | DAMV | Z | 5.2 | 1 | 2020-06-28 13:50:51 | 2020-06-28 06:40:00 | n |
| 155098 | IIEES SC | SBZV | Z | 430 | 1 | 2020-06-28 13:50:41 | 2020-06-28 06:40:00 | n |
| 155099 | IIEES SC | CHTH | Z | 170 | 1 | 2020-06-28 13:51:29 | 2020-06-28 06:40:00 | n |
| 155100 | IIEES SC | AKL | Z | 150 | 1 | 2020-06-28 13:50:48 | 2020-06-28 06:40:00 | n |
| 155101 | IIEES SC | GHVR | Z | 670 | 1 | 2020-06-28 13:51:05 | 2020-06-28 06:40:00 | n |
| 155102 | IIEES SC | TABS | Z | 240 | 1 | 2020-06-28 13:51:29 | 2020-06-28 06:40:00 | n |
| 155103 | IIEES SC | KAGH | Z | 45 | 1 | 2020-06-28 13:51:51 | 2020-06-28 06:40:00 | n |
| 155104 | IIEES SC | ZNJK | Z | 41 | 1 | 2020-06-28 13:51:20 | 2020-06-28 06:40:00 | n |
| 155105 | IIEES SC | NASN | Z | 78 | 1 | 2020-06-28 13:51:47 | 2020-06-28 06:40:00 | n |
| 155106 | IIEES SC | YZKH | Z | 110 | 1 | 2020-06-28 13:51:15 | 2020-06-28 06:40:00 | n |
| 155107 | IIEES SC | TBJM | Z | 74 | 1 | 2020-06-28 13:51:57 | 2020-06-28 06:40:00 | n |
| 155108 | IIEES SC | GRMI | Z | 73 | 1 | 2020-06-28 13:51:38 | 2020-06-28 06:40:00 | n |
| 155109 | IIEES SC | SHRT | Z | 39 | 1 | 2020-06-28 13:51:33 | 2020-06-28 06:40:00 | n |
| 155110 | IIEES SC | KRBR | Z | 35 | 1 | 2020-06-28 13:53:14 | 2020-06-28 06:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2020-06-28 13:49:18 | 0.7 | y | 100 | 213 | |||
| IIEES SC | MRVT | N | IS | I | 2020-06-28 13:49:44 | 0.6 | y | 155 | 74 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-28 13:49:25 | 1 | y | 155 | 74 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-28 13:49:31 | -0.7 | y | 200 | 136 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-28 13:49:34 | 0.4 | y | 211 | 194 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-06-28 13:49:40 | -0.8 | y | 266 | 80 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-28 13:49:45 | 1.6 | y | 289 | 230 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-28 13:49:44 | -1 | y | 300 | 110 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-28 13:49:51 | 1.7 | y | 333 | 243 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-28 13:49:56 | -0.7 | y | 389 | 101 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-06-28 13:50:01 | 0.4 | y | 422 | 223 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-28 13:50:05 | -1 | y | 467 | 149 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-06-28 13:50:08 | -0.3 | y | 489 | 95 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-28 13:50:13 | 0.7 | y | 522 | 262 | |||
| IIEES SC | NASN | Z | IP | I | 2020-06-28 13:50:12 | -0.1 | y | 522 | 197 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-28 13:50:15 | -0.8 | y | 544 | 179 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-28 13:50:18 | -0.8 | y | 578 | 113 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-06-28 13:50:21 | -0.8 | y | 600 | 286 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-28 13:50:29 | -1.7 | y | 667 | 127 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-06-28 13:50:51 | -0.7 | y | 834 | 165 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-06-28 13:51:14 | -1.8 | y | 1034 | 145 | |||
| IIEES SC | RAYN | Z | IP | I | 2020-06-28 13:52:46 | 0.7 | y | 1756 | 209 | |||
