Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2020-06-28 14:07:46.1 |
| Date & Time (Local) | 1399/4/8 18:37:46.1 |

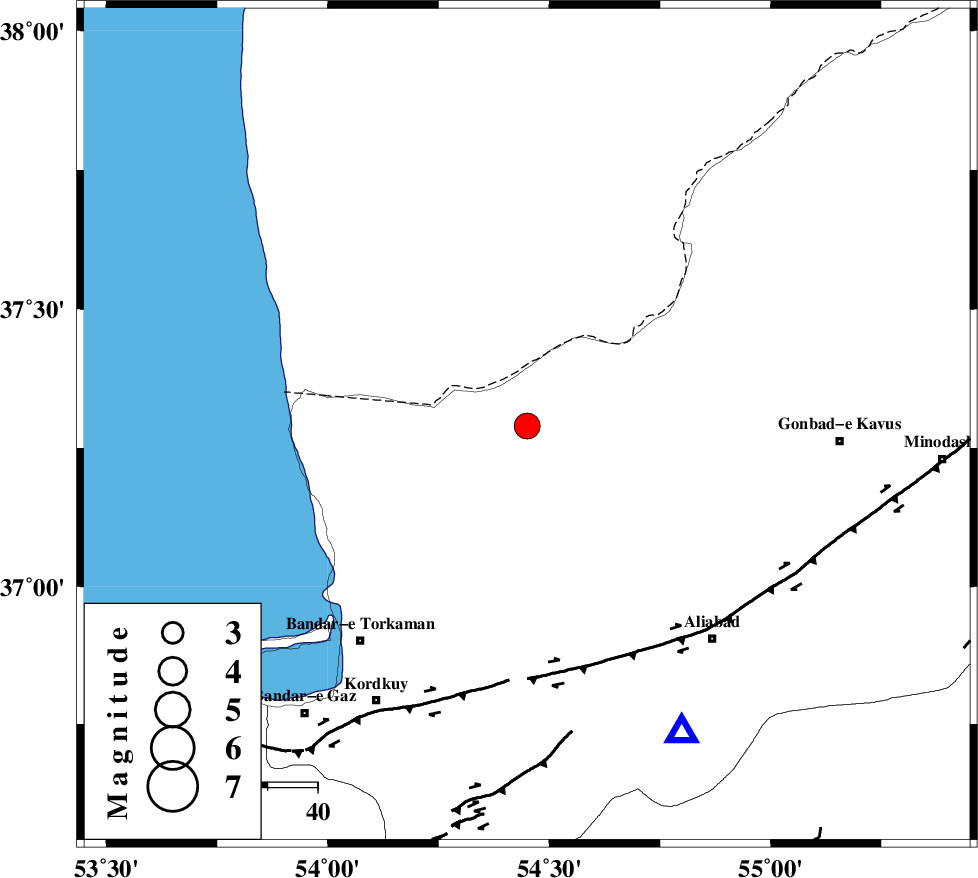

| Location | Lat:37.29 Lon: 54.45 |
| Region | Golestan Province, 31 km North of Aq Qaleh |
Nearest Cities |
|
| 30 km South West of Enchehborun, Golestan Province | |
| 31 km North of Aq Qaleh, Golestan Province | |
| 31 km North of Qanqarmeh, Golestan Province | |
| 34 km North West of Gariduji, Golestan Province | |
| 37 km North East of Banavar, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 49 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 76 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 80 km | |
| Number of Phases | 18 |
| RMS | 0.9 |
| Number of Stations | 19 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155111 | IIEES SC | GLO | Z | 7100 | 1 | 2020-06-28 14:08:51 | 2020-06-28 06:55:00 | n |
| 155112 | IIEES SC | MRVT | Z | 2400 | 1 | 2020-06-28 14:09:04 | 2020-06-28 06:55:00 | n |
| 155113 | IIEES SC | SHRO | Z | 2 | 1 | 2020-06-28 14:08:58 | 2020-06-28 06:55:00 | n |
| 155114 | IIEES SC | ANJ | Z | 810 | 1 | 2020-06-28 14:09:11 | 2020-06-28 06:55:00 | n |
| 155115 | IIEES SC | BJRD | Z | 170 | 1 | 2020-06-28 14:09:37 | 2020-06-28 06:55:00 | n |
| 155116 | IIEES SC | DAMV | Z | 5 | 1 | 2020-06-28 14:10:06 | 2020-06-28 06:55:00 | n |
| 155117 | IIEES SC | SBZV | Z | 270 | 1 | 2020-06-28 14:09:49 | 2020-06-28 06:55:00 | n |
| 155118 | IIEES SC | CHTH | Z | 60 | 1 | 2020-06-28 14:10:07 | 2020-06-28 06:55:00 | n |
| 155119 | IIEES SC | AKL | Z | 120 | 1 | 2020-06-28 14:10:20 | 2020-06-28 06:55:00 | n |
| 155120 | IIEES SC | TABS | Z | 82 | 1 | 2020-06-28 14:10:38 | 2020-06-28 06:55:00 | n |
| 155121 | IIEES SC | KAGH | Z | 28 | 1 | 2020-06-28 14:10:55 | 2020-06-28 06:55:00 | n |
| 155122 | IIEES SC | ZNJK | Z | 17 | 1 | 2020-06-28 14:10:29 | 2020-06-28 06:55:00 | n |
| 155123 | IIEES SC | YZKH | Z | 75 | 1 | 2020-06-28 14:10:28 | 2020-06-28 06:55:00 | n |
| 155124 | IIEES SC | TBJM | Z | 40 | 1 | 2020-06-28 14:11:19 | 2020-06-28 06:55:00 | n |
| 155125 | IIEES SC | GRMI | Z | 24 | 1 | 2020-06-28 14:10:37 | 2020-06-28 06:55:00 | n |
| 155126 | IIEES SC | SHRT | Z | 17 | 1 | 2020-06-28 14:11:38 | 2020-06-28 06:55:00 | n |
| 155127 | IIEES SC | BSRN | Z | 8.7 | 1 | 2020-06-28 14:10:49 | 2020-06-28 06:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | N | IS | I | 2020-06-28 14:08:17 | -0.2 | y | 100 | 212 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-28 14:08:03 | -0.1 | y | 100 | 212 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-06-28 14:08:11 | 0.6 | y | 155 | 74 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-28 14:08:17 | -1.1 | y | 200 | 135 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-06-28 14:08:20 | 0.8 | y | 211 | 193 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-06-28 14:08:27 | -0.2 | y | 266 | 80 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-28 14:08:31 | 1.5 | y | 289 | 230 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-28 14:08:30 | -0.9 | y | 300 | 109 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-28 14:08:37 | 1.5 | y | 333 | 243 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-28 14:08:44 | 1.3 | y | 389 | 101 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-28 14:08:51 | -1 | y | 467 | 149 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-06-28 14:08:54 | -0.5 | y | 489 | 95 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-06-28 14:09:00 | 1.4 | y | 522 | 262 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-06-28 14:09:00 | -1.2 | y | 544 | 179 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-06-28 14:09:05 | -0.4 | y | 578 | 113 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-06-28 14:09:07 | -1 | y | 600 | 286 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-06-28 14:09:15 | -1.6 | y | 667 | 127 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-06-28 14:09:23 | -1.2 | y | 733 | 144 | |||
