Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2020-06-28 14:08:24.8 |
| Date & Time (Local) | 1399/4/8 18:38:24.8 |

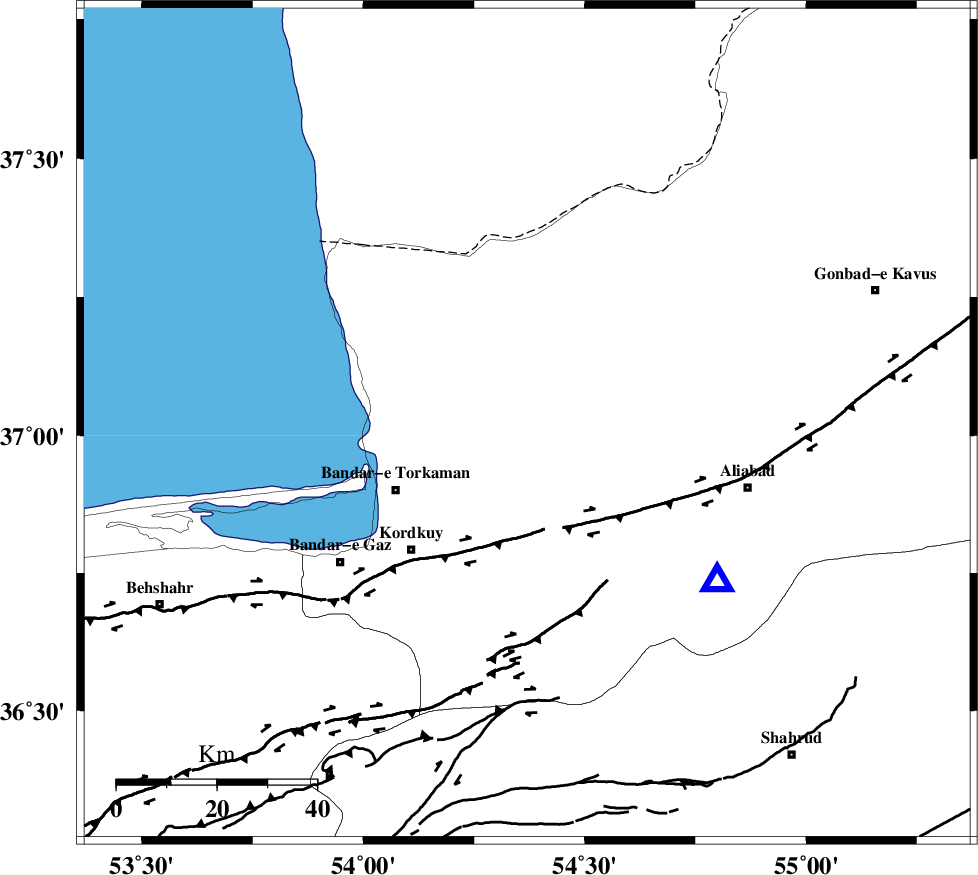

| Location | Lat:37.02 Lon: 54.37 |
| Region | Golestan Province, 8 km of Aq Qaleh |
Nearest Cities |
|
| 8 km North of Aq Qaleh, Golestan Province | |
| 12 km North West of Qanqarmeh, Golestan Province | |
| 13 km North East of Banavar, Golestan Province | |
| 20 km North of Lamsak, Golestan Province | |
| 20 km North West of Nodeh malek, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 22 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 46 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 50 km | |
| Number of Phases | 13 |
| RMS | 0.6 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155128 | IIEES SC | GLO | Z | 7100 | 1 | 2020-06-28 14:08:51 | 2020-06-29 11:34:00 | n |
| 155129 | IIEES SC | MRVT | Z | 2400 | 1 | 2020-06-28 14:09:04 | 2020-06-29 11:34:00 | n |
| 155130 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-06-28 14:10:08 | 2020-06-29 11:34:00 | n |
| 155131 | IIEES SC | DAMV | Z | 5 | 1 | 2020-06-28 14:10:06 | 2020-06-29 11:34:00 | n |
| 155132 | IIEES SC | BJRD | Z | 170 | 1 | 2020-06-28 14:09:37 | 2020-06-29 11:34:00 | n |
| 155133 | IIEES SC | SBZV | Z | 270 | 1 | 2020-06-28 14:09:49 | 2020-06-29 11:34:00 | n |
| 155134 | IIEES SC | CHTH | Z | 60 | 1 | 2020-06-28 14:10:07 | 2020-06-29 11:34:00 | n |
| 155135 | IIEES SC | THKV | Z | 230 | 1 | 2020-06-28 14:10:11 | 2020-06-29 11:34:00 | n |
| 155136 | IIEES SC | AKL | Z | 120 | 1 | 2020-06-28 14:10:20 | 2020-06-29 11:34:00 | n |
| 155137 | IIEES SC | TABS | Z | 82 | 1 | 2020-06-28 14:10:38 | 2020-06-29 11:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | N | IS | I | 2020-06-28 14:08:47 | -0.3 | y | 77 | 220 | |||
| IIEES SC | GLO | Z | IP | I | 2020-06-28 14:08:37 | -0.6 | y | 77 | 220 | |||
| IIEES SC | MRVT | N | IS | I | 2020-06-28 14:09:02 | -10.6 | n | 4 | 166 | 65 | ||
| IIEES SC | MRVT | Z | IP | I | 2020-06-28 14:08:52 | -0.3 | y | 166 | 65 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-06-28 14:08:56 | 1.3 | y | 189 | 127 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-06-28 14:09:06 | 0.5 | y | 266 | 234 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-06-28 14:09:06 | -1 | y | 278 | 74 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-06-28 14:09:11 | 0.8 | y | 300 | 104 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-06-28 14:09:11 | -0.5 | y | 311 | 247 | |||
| IIEES SC | THKV | Z | IP | I | 2020-06-28 14:09:15 | 0.9 | y | 333 | 249 | |||
| IIEES SC | AKL | Z | IP | I | 2020-06-28 14:09:23 | 1.2 | y | 389 | 97 | |||
| IIEES SC | TABS | Z | IP | I | 2020-06-28 14:09:28 | -0.5 | y | 455 | 146 | |||
| IIEES SC | QABG | Z | IP | I | 2020-06-28 14:09:45 | 16.4 | n | 4 | 455 | 251 | ||
