Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2020-07-04 17:30:05.8 |
| Date & Time (Local) | 1399/4/14 22:00:05.8 |

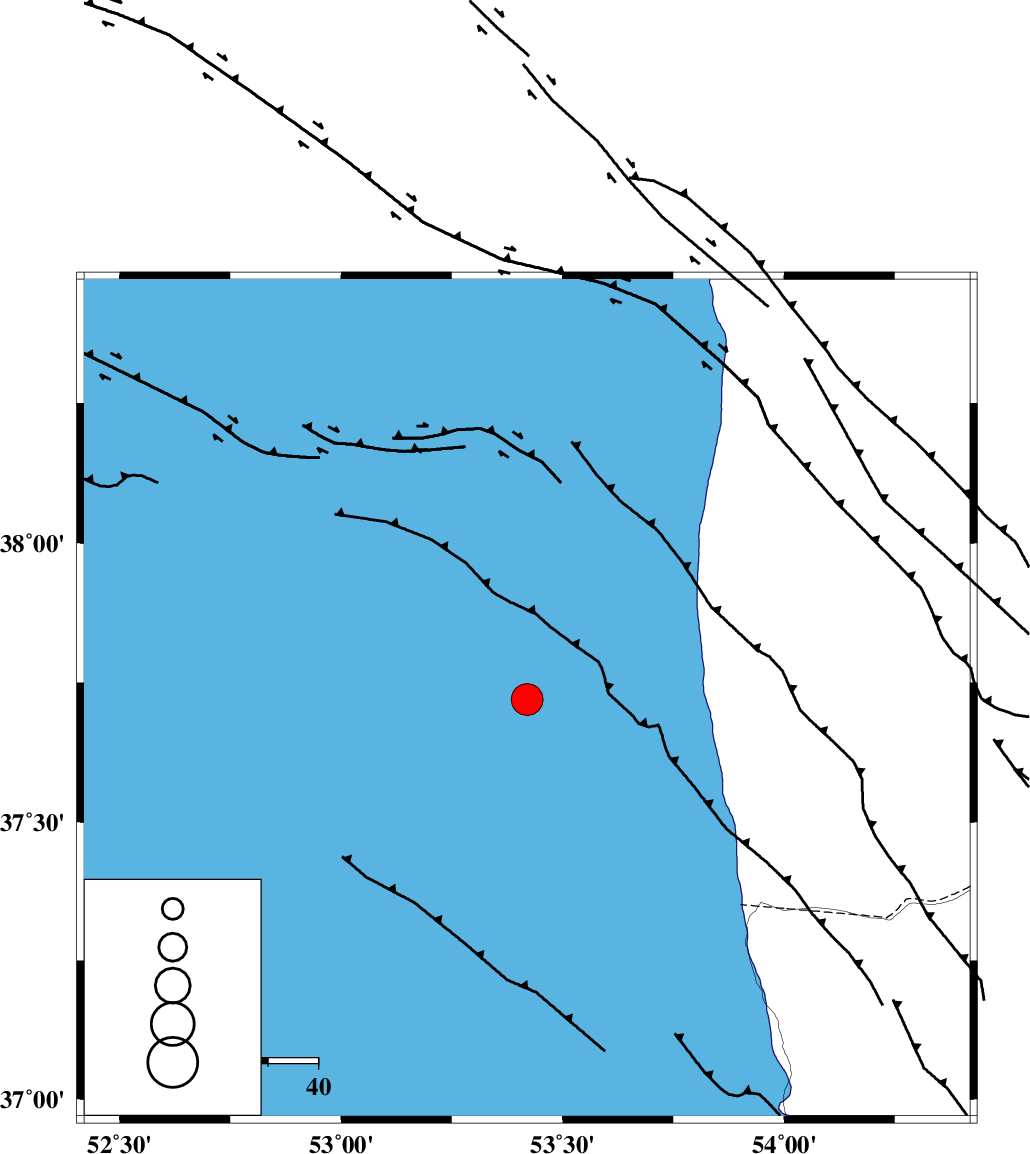

| Location | Lat:37.72 Lon: 53.42 |
| Region | Caspian Sea |
Nearest Cities |
|
| 91 km North West of Gomishtappeh, Golestan Province | |
| 102 km North of Zaghmarz, Mazandaran Province | |
| 107 km North West of Banavar, Golestan Province | |
| 107 km North East of Farahabad, Mazandaran Province | |
| 108 km North West of Bandar-e torkaman, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 115 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 143 km | |
| Number of Phases | 29 |
| RMS | 0.3 |
| Number of Stations | 23 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155238 | IIEES SC | GLO | Z | 30000 | 1 | 2020-07-04 17:30:49 | 2020-07-05 01:04:00 | n |
| 155239 | IIEES SC | MRVT | Z | 350 | 1 | 2020-07-04 17:31:37 | 2020-07-05 01:04:00 | n |
| 155240 | IIEES SC | ANJ | Z | 340 | 1 | 2020-07-04 17:31:32 | 2020-07-05 01:04:00 | n |
| 155241 | IIEES SC | DAMV | Z | 4.9 | 1 | 2020-07-04 17:31:59 | 2020-07-05 01:04:00 | n |
| 155242 | IIEES SC | CHTH | Z | 280 | 1 | 2020-07-04 17:31:29 | 2020-07-05 01:04:00 | n |
| 155243 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-07-04 17:31:21 | 2020-07-05 01:04:00 | n |
| 155244 | IIEES SC | THKV | Z | 1700 | 1 | 2020-07-04 17:31:41 | 2020-07-05 01:04:00 | n |
| 155245 | IIEES SC | GIDE | Z | 1100 | 1 | 2020-07-04 17:31:47 | 2020-07-05 01:04:00 | n |
| 155246 | IIEES SC | BJRD | Z | 72 | 1 | 2020-07-04 17:32:12 | 2020-07-05 01:04:00 | n |
| 155247 | IIEES SC | SBZV | Z | 110 | 1 | 2020-07-04 17:32:24 | 2020-07-05 01:04:00 | n |
| 155248 | IIEES SC | QABG | Z | 60 | 1 | 2020-07-04 17:32:07 | 2020-07-05 01:04:00 | n |
| 155249 | IIEES SC | GHVR | Z | 880 | 1 | 2020-07-04 17:32:51 | 2020-07-05 01:04:00 | n |
| 155250 | IIEES SC | ZNJK | Z | 150 | 1 | 2020-07-04 17:32:26 | 2020-07-05 01:04:00 | n |
| 155251 | IIEES SC | ASAO | Z | 170 | 1 | 2020-07-04 17:32:25 | 2020-07-05 01:04:00 | n |
| 155252 | IIEES SC | AKL | Z | 42 | 1 | 2020-07-04 17:32:11 | 2020-07-05 01:04:00 | n |
| 155253 | IIEES SC | GRMI | Z | 390 | 1 | 2020-07-04 17:32:09 | 2020-07-05 01:04:00 | n |
| 155254 | IIEES SC | NASN | Z | 76 | 1 | 2020-07-04 17:32:56 | 2020-07-05 01:04:00 | n |
| 155255 | IIEES SC | TABS | Z | 100 | 1 | 2020-07-04 17:33:12 | 2020-07-05 01:04:00 | n |
| 155256 | IIEES SC | TABS | Z | 98 | 0.64 | 2020-07-04 17:31:37 | 2020-07-05 01:04:00 | n |
| 155257 | IIEES SC | KAGH | Z | 15 | 1 | 2020-07-04 17:33:38 | 2020-07-05 01:04:00 | n |
| 155258 | IIEES SC | KAGH | Z | 5.7 | 0.7 | 2020-07-04 17:31:45 | 2020-07-05 01:04:00 | n |
| 155259 | IIEES SC | YZKH | Z | 68 | 1 | 2020-07-04 17:32:59 | 2020-07-05 01:04:00 | n |
| 155260 | IIEES SC | YZKH | Z | 78 | 0.79 | 2020-07-04 17:31:55 | 2020-07-05 01:04:00 | n |
| 155261 | IIEES SC | SNGE | Z | 36 | 1 | 2020-07-04 17:33:21 | 2020-07-05 01:04:00 | n |
| 155262 | IIEES SC | SNGE | Z | 21 | 0.89 | 2020-07-04 17:32:00 | 2020-07-05 01:04:00 | n |
| 155263 | IIEES SC | AZR | Z | 480 | 1 | 2020-07-04 17:32:49 | 2020-07-05 01:04:00 | n |
| 155264 | IIEES SC | AZR | Z | 210 | 0.56 | 2020-07-04 17:31:39 | 2020-07-05 01:04:00 | n |
| 155265 | IIEES SC | SHRT | Z | 16 | 1 | 2020-07-04 17:34:14 | 2020-07-05 01:04:00 | n |
| 155266 | IIEES SC | SHRT | Z | 23 | 0.72 | 2020-07-04 17:32:01 | 2020-07-05 01:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GLO | Z | IP | I | 2020-07-04 17:30:29 | 0 | y | 144 | 165 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-07-04 17:30:43 | 0 | y | 233 | 92 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-07-04 17:30:46 | 0.4 | y | 255 | 170 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-07-04 17:30:47 | -0.1 | y | 266 | 209 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-07-04 17:30:49 | -0.4 | y | 289 | 226 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-04 17:30:51 | 0.1 | y | 300 | 130 | |||
| IIEES SC | THKV | Z | IP | I | 2020-07-04 17:30:51 | -0.1 | y | 300 | 229 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-07-04 17:30:52 | -1.4 | y | 322 | 254 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-07-04 17:30:57 | -0.1 | y | 355 | 90 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-07-04 17:31:04 | 0.6 | y | 400 | 112 | |||
| IIEES SC | QABG | Z | IP | I | 2020-07-04 17:31:05 | 0.1 | y | 411 | 237 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-07-04 17:31:06 | 1.1 | y | 411 | 209 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-07-04 17:31:08 | -0.2 | y | 433 | 254 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-07-04 17:31:12 | 0.5 | y | 467 | 221 | |||
| IIEES SC | AKL | Z | IP | I | 2020-07-04 17:31:14 | -0.5 | y | 489 | 105 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-07-04 17:31:16 | 0 | y | 500 | 284 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-07-04 17:31:08 | -12.9 | n | 4 | 544 | 215 | ||
| IIEES SC | NASN | Z | IP | I | 2020-07-04 17:31:21 | -0.7 | y | 544 | 186 | |||
| IIEES SC | TABS | Z | IP | I | 2020-07-04 17:31:24 | 0.7 | y | 567 | 144 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-07-04 17:31:26 | 0.1 | y | 589 | 99 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-07-04 17:31:28 | -0.6 | y | 600 | 170 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-07-04 17:31:30 | -0.4 | y | 622 | 242 | |||
| IIEES SC | AZR | Z | IP | I | 2020-07-04 17:31:36 | 0.8 | y | 656 | 270 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-07-04 17:31:48 | -0.5 | y | 767 | 126 | |||
| IIEES SC | TABS | Z | IVmB_BB | 2020-07-04 17:31:48 | y | 1 | 567 | 144 | ||||
| IIEES SC | KAGH | Z | IVmB_BB | 2020-07-04 17:32:17 | y | 1 | 589 | 99 | ||||
| IIEES SC | YZKH | Z | IVmB_BB | 2020-07-04 17:32:08 | y | 1 | 600 | 170 | ||||
| IIEES SC | AZR | Z | IVmB_BB | 2020-07-04 17:31:39 | y | 1 | 656 | 270 | ||||
| IIEES SC | SHRT | Z | IVmB_BB | 2020-07-04 17:32:37 | y | 1 | 767 | 126 | ||||
