Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2020-07-06 21:02:47.6 |
| Date & Time (Local) | 1399/4/17 01:32:47.6 |
| Location | Lat:34.47 Lon: 51.35 |
| Region | Qom Province, 47 km North-West of Aran va bidgol |
Nearest Cities |
|
| 30 km East of Hajiabad-e lakha, Qom Province | |
| 34 km North of Mashgan, Esfahan Province | |
| 38 km South East of Qamrud, Qom Province | |
| 38 km North of Nasrabad, Esfahan Province | |
| 40 km North East of Yahyaabad, Esfahan Province | |
| Depth | 10 km |
| Agency | |

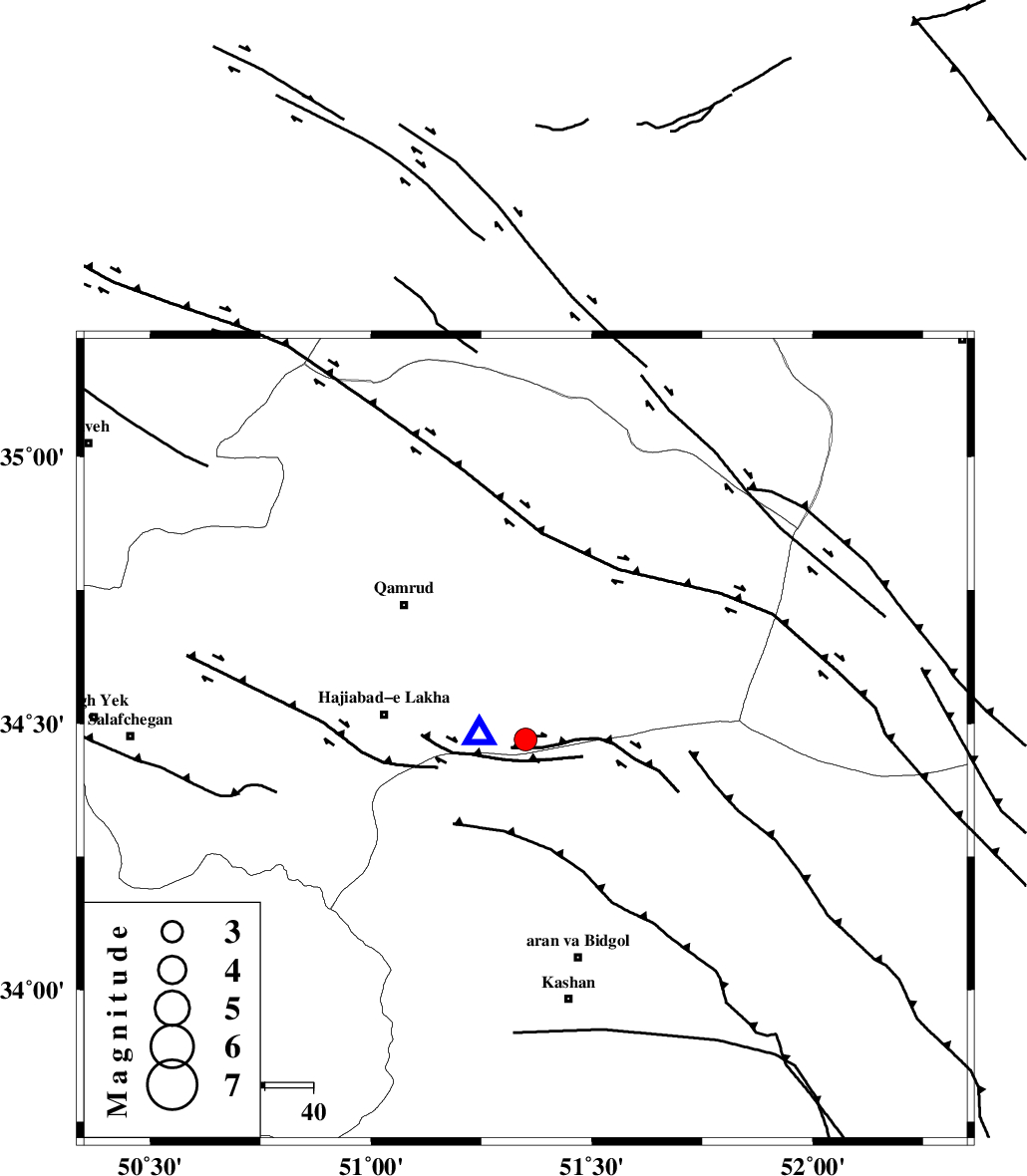

Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 35 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 40 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 64 km | |
| Number of Phases | 17 |
| RMS | 0.7 |
| Number of Stations | 17 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155319 | IIEES SC | GHVR | Z | 580 | 1 | 2020-07-06 21:02:53 | 2020-07-07 12:08:00 | n |
| 155320 | IIEES SC | ASAO | Z | 240 | 1 | 2020-07-06 21:03:31 | 2020-07-07 12:08:00 | n |
| 155321 | IIEES SC | DAMV | Z | 4.8 | 1 | 2020-07-06 21:03:40 | 2020-07-07 12:08:00 | n |
| 155322 | IIEES SC | KHMZ | Z | 130 | 1 | 2020-07-06 21:03:34 | 2020-07-07 12:08:00 | n |
| 155323 | IIEES SC | CHTH | Z | 2.3 | 1 | 2020-07-06 21:03:51 | 2020-07-07 12:08:00 | n |
| 155324 | IIEES SC | THKV | Z | 200 | 1 | 2020-07-06 21:03:46 | 2020-07-07 12:08:00 | n |
| 155325 | IIEES SC | NASN | Z | 170 | 1 | 2020-07-06 21:03:54 | 2020-07-07 12:08:00 | n |
| 155326 | IIEES SC | GIDE | Z | 120 | 1 | 2020-07-06 21:04:35 | 2020-07-07 12:08:00 | n |
| 155327 | IIEES SC | GTMR | Z | 39 | 1 | 2020-07-06 21:04:21 | 2020-07-07 12:08:00 | n |
| 155328 | IIEES SC | ZNJK | Z | 40 | 1 | 2020-07-06 21:04:04 | 2020-07-07 12:08:00 | n |
| 155329 | IIEES SC | SNGE | Z | 40 | 1 | 2020-07-06 21:04:46 | 2020-07-07 12:08:00 | n |
| 155330 | IIEES SC | YZKH | Z | 32 | 1 | 2020-07-06 21:04:51 | 2020-07-07 12:08:00 | n |
| 155331 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-07-06 21:04:34 | 2020-07-07 12:08:00 | n |
| 155332 | IIEES SC | ILBA | Z | 9.3 | 1 | 2020-07-06 21:05:24 | 2020-07-07 12:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | IP | I | 2020-07-06 21:02:49 | -1.1 | y | 11 | 273 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-07-06 21:03:08 | 0.1 | y | 122 | 274 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-07-06 21:03:10 | -0.4 | y | 144 | 24 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-07-06 21:03:12 | -0.6 | y | 155 | 238 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-07-06 21:03:13 | -0.5 | y | 155 | 353 | |||
| IIEES SC | THKV | Z | IP | I | 2020-07-06 21:03:14 | -0.1 | y | 166 | 345 | |||
| IIEES SC | QABG | Z | IP | I | 2020-07-06 21:03:21 | -0.5 | y | 211 | 310 | |||
| IIEES SC | NASN | Z | IP | I | 2020-07-06 21:03:23 | -0.7 | y | 233 | 144 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-07-06 21:03:34 | 0.7 | y | 300 | 334 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-07-06 21:03:35 | 2 | y | 300 | 223 | |||
| IIEES SC | GLO | Z | IP | I | 2020-07-06 21:03:36 | 0.9 | y | 322 | 45 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-07-06 21:03:38 | 0 | y | 344 | 315 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-07-06 21:03:44 | 1.9 | y | 378 | 281 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-07-06 21:03:42 | -0.5 | y | 378 | 128 | |||
| IIEES SC | KLNJ | N | IP | I | 2020-07-06 21:03:44 | 0.6 | y | 389 | 177 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-06 21:03:52 | 0.3 | y | 455 | 68 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-07-06 21:03:56 | 0.4 | y | 489 | 259 | |||
