Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2020-07-12 16:37:32.3 |
| Date & Time (Local) | 1399/4/22 21:07:32.3 |

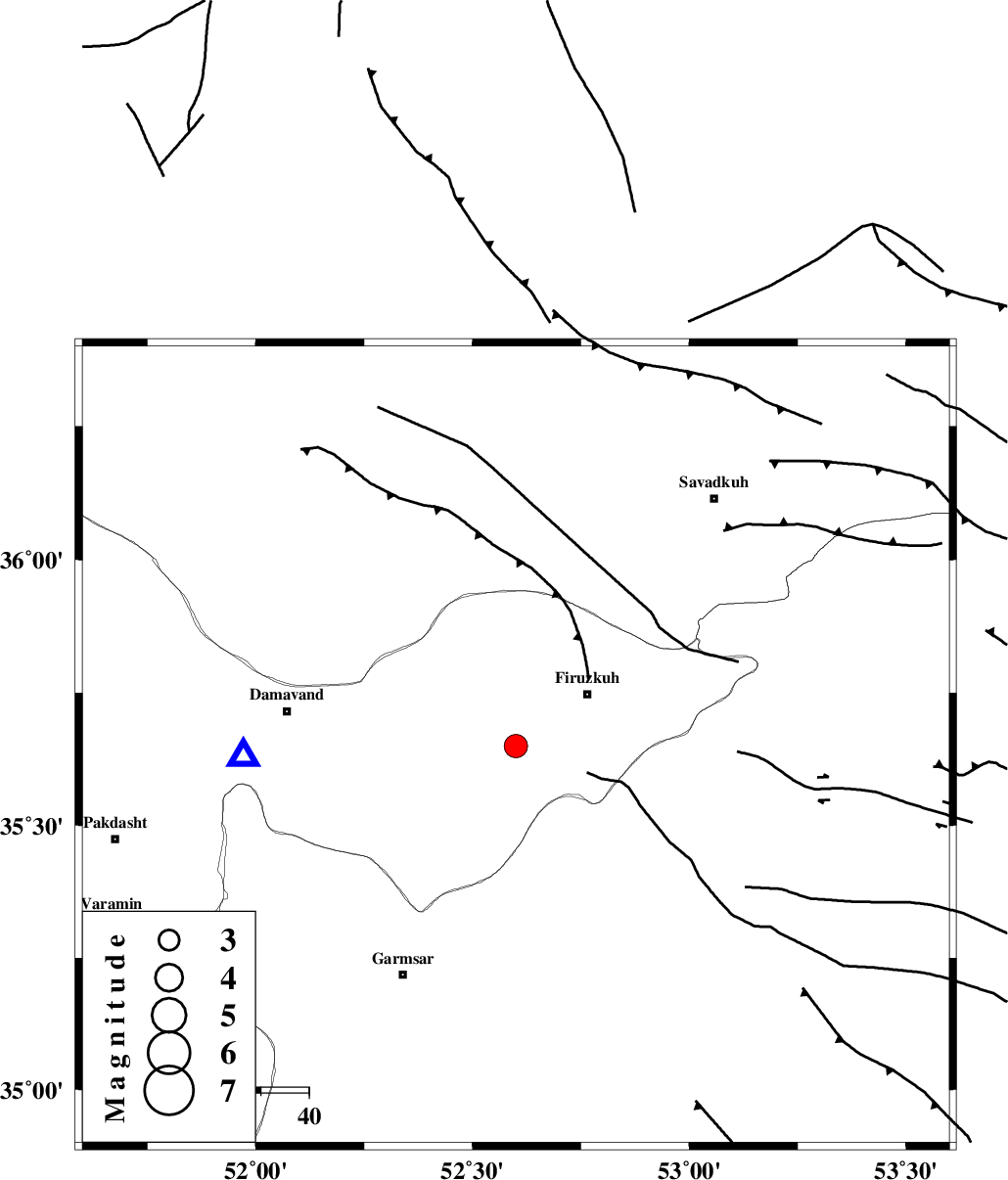

| Location | Lat:35.65 Lon: 52.6 |
| Region | Tehran Province, 18 km -West of Firuzkuh |
Nearest Cities |
|
| 8 km North of Atashan, Tehran Province | |
| 18 km South of Arjomand, Tehran Province | |
| 18 km West of Firuzkuh, Tehran Province | |
| 19 km South of Shahrabad, Tehran Province | |
| 26 km North East of Sarbandan, Tehran Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 6 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 33 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 40 km | |
| Number of Phases | 17 |
| RMS | 0.8 |
| Number of Stations | 18 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155498 | IIEES SC | DAMV | Z | 860 | 1 | 2020-07-12 16:38:03 | 2020-07-12 09:47:00 | n |
| 155499 | IIEES SC | CHTH | Z | 2.4 | 1 | 2020-07-12 16:38:33 | 2020-07-12 09:47:00 | n |
| 155500 | IIEES SC | THKV | Z | 620 | 1 | 2020-07-12 16:38:22 | 2020-07-12 09:47:00 | n |
| 155501 | IIEES SC | GHVR | Z | 670 | 1 | 2020-07-12 16:38:50 | 2020-07-12 09:47:00 | n |
| 155502 | IIEES SC | ASAO | Z | 200 | 1 | 2020-07-12 16:38:52 | 2020-07-12 09:47:00 | n |
| 155503 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-07-12 16:39:46 | 2020-07-12 09:47:00 | n |
| 155504 | IIEES SC | NASN | Z | 50 | 1 | 2020-07-12 16:38:54 | 2020-07-12 09:47:00 | n |
| 155505 | IIEES SC | KHMZ | Z | 67 | 1 | 2020-07-12 16:39:07 | 2020-07-12 09:47:00 | n |
| 155506 | IIEES SC | MRVT | Z | 29 | 1 | 2020-07-12 16:39:37 | 2020-07-12 09:47:00 | n |
| 155507 | IIEES SC | SBZV | Z | 23 | 1 | 2020-07-12 16:40:00 | 2020-07-12 09:47:00 | n |
| 155508 | IIEES SC | TABS | Z | 47 | 1 | 2020-07-12 16:40:02 | 2020-07-12 09:47:00 | n |
| 155509 | IIEES SC | GTMR | Z | 24 | 1 | 2020-07-12 16:40:06 | 2020-07-12 09:47:00 | n |
| 155510 | IIEES SC | GRMI | Z | 9.6 | 1 | 2020-07-12 16:39:51 | 2020-07-12 09:47:00 | n |
| 155511 | IIEES SC | ILBA | Z | 5.7 | 1 | 2020-07-12 16:40:47 | 2020-07-12 09:47:00 | n |
| 155512 | IIEES SC | BSRN | Z | 8.4 | 1 | 2020-07-12 16:41:22 | 2020-07-12 09:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-07-12 16:37:41 | -1.1 | y | 55 | 268 | |||
| IIEES SC | DAMV | Z | IS | I | 2020-07-12 16:37:49 | -0.8 | y | 55 | 268 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-07-12 16:37:54 | -0.6 | y | 133 | 282 | |||
| IIEES SC | THKV | Z | IP | I | 2020-07-12 16:37:58 | 0 | y | 155 | 281 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-07-12 16:38:01 | -0.6 | y | 177 | 223 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-07-12 16:38:13 | -0.6 | y | 266 | 242 | |||
| IIEES SC | QABG | Z | IP | I | 2020-07-12 16:38:14 | 0.2 | y | 278 | 271 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-12 16:38:18 | -0.6 | y | 311 | 83 | |||
| IIEES SC | NASN | Z | IP | I | 2020-07-12 16:38:21 | 1.2 | y | 322 | 176 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-07-12 16:38:22 | 1.9 | y | 322 | 229 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-07-12 16:38:28 | 0.4 | y | 389 | 54 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-07-12 16:38:38 | 0.2 | y | 455 | 80 | |||
| IIEES SC | TABS | Z | IP | I | 2020-07-12 16:38:38 | -1 | y | 467 | 118 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-07-12 16:38:40 | 0.9 | y | 478 | 222 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-07-12 16:38:49 | 1.4 | y | 544 | 310 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-07-12 16:38:58 | 0.5 | y | 622 | 249 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-07-12 16:39:10 | -1.2 | y | 733 | 124 | |||
