Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2020-07-21 07:40:37.4 |
| Date & Time (Local) | 1399/4/31 12:10:37.4 |

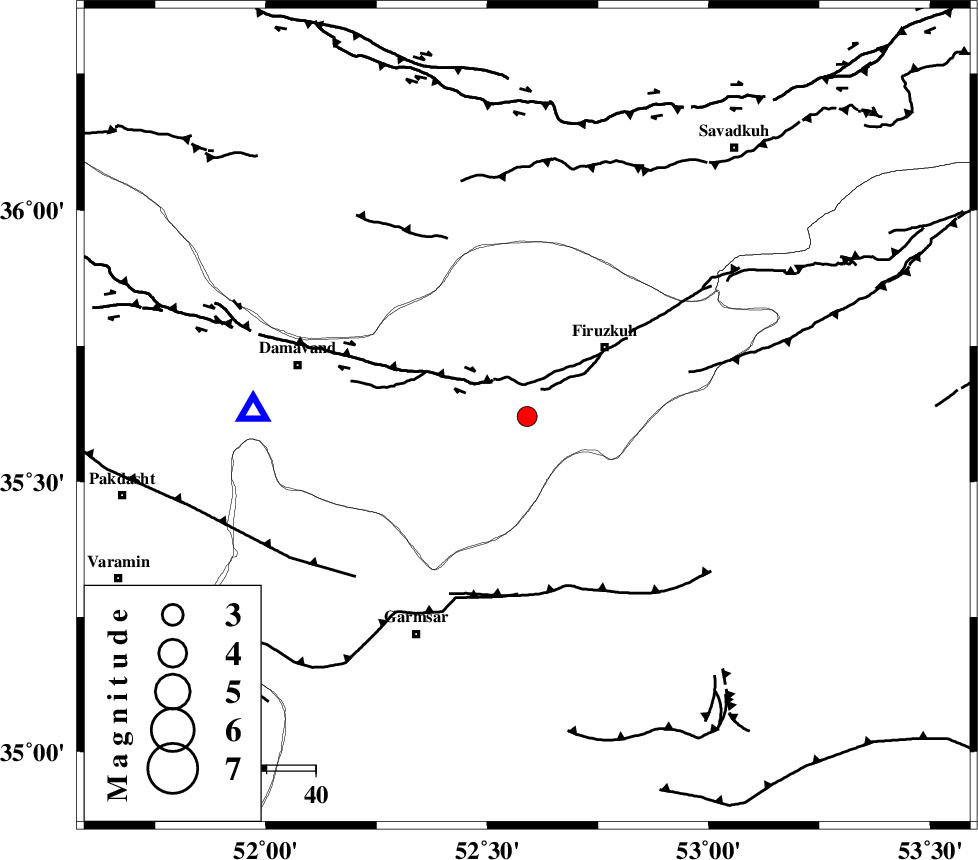

| Location | Lat:35.62 Lon: 52.59 |
| Region | Tehran Province, 21 km South-West of Firuzkuh |
Nearest Cities |
|
| 5 km North of Atashan, Tehran Province | |
| 21 km South West of Firuzkuh, Tehran Province | |
| 21 km South of Arjomand, Tehran Province | |
| 22 km South of Shahrabad, Tehran Province | |
| 26 km East of Sarbandan, Tehran Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 9 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 34 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 37 km | |
| Number of Phases | 10 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 155695 | IIEES SC | DAMV | Z | 9.2 | 1 | 2020-07-21 07:41:03 | 2020-07-21 12:24:00 | n |
| 155696 | IIEES SC | ANJ | Z | 25 | 1 | 2020-07-21 07:41:23 | 2020-07-21 12:24:00 | n |
| 155697 | IIEES SC | CHTH | Z | 2.6 | 1 | 2020-07-21 07:41:43 | 2020-07-21 12:24:00 | n |
| 155698 | IIEES SC | GLO | Z | 140 | 1 | 2020-07-21 07:41:33 | 2020-07-21 12:24:00 | n |
| 155699 | IIEES SC | THKV | Z | 130 | 1 | 2020-07-21 07:41:27 | 2020-07-21 12:24:00 | n |
| 155700 | IIEES SC | GHVR | Z | 1300 | 1 | 2020-07-21 07:42:01 | 2020-07-21 12:24:00 | n |
| 155701 | IIEES SC | ASAO | Z | 40 | 1 | 2020-07-21 07:41:54 | 2020-07-21 12:24:00 | n |
| 155702 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-07-21 07:42:56 | 2020-07-21 12:24:00 | n |
| 155703 | IIEES SC | NASN | Z | 10 | 1 | 2020-07-21 07:42:00 | 2020-07-21 12:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | IP | I | 2020-07-21 07:40:46 | -1.1 | y | 55 | 271 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-07-21 07:40:57 | -0.9 | y | 122 | 98 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-07-21 07:40:59 | -0.5 | y | 133 | 283 | |||
| IIEES SC | GLO | Z | IP | I | 2020-07-21 07:41:02 | 0.5 | y | 144 | 49 | |||
| IIEES SC | THKV | Z | IP | I | 2020-07-21 07:41:03 | 0.1 | y | 155 | 282 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-07-21 07:41:06 | 0.5 | y | 177 | 224 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-07-21 07:41:18 | -0.2 | y | 266 | 243 | |||
| IIEES SC | QABG | Z | IP | I | 2020-07-21 07:41:20 | 0.7 | y | 278 | 272 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-07-21 07:41:23 | -0.5 | y | 311 | 82 | |||
| IIEES SC | NASN | Z | IP | I | 2020-07-21 07:41:25 | 1.1 | y | 311 | 176 | |||
