Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2020-08-01 19:54:39.9 |
| Date & Time (Local) | 1399/5/12 00:24:39.9 |

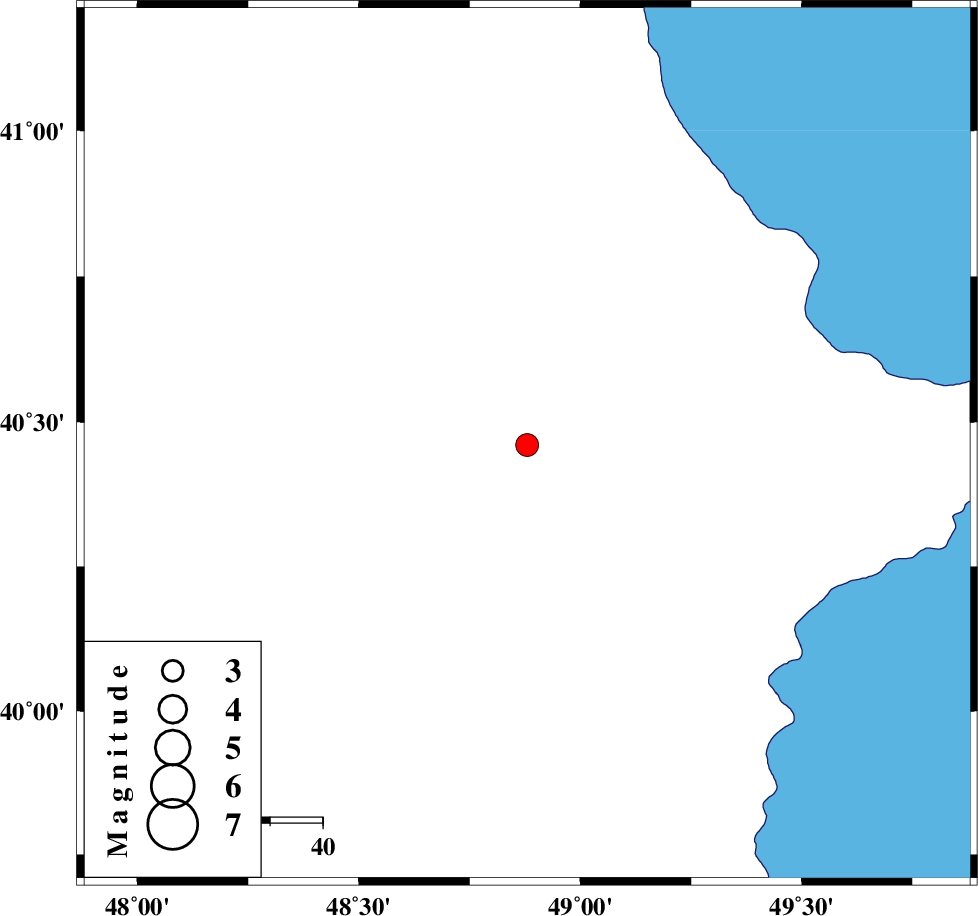

| Location | Lat:40.46 Lon: 48.88 |
| Region | Azerbaijan, 85 km -West of Baku |
Nearest Cities |
|
| 85 km North West of Baku, Azerbaijan Province | |
| 115 km North East of Kushlu, Ardebil Province | |
| 119 km North East of Tazeh kand-e gadim, Ardebil Province | |
| 122 km North East of Pars Abad, Ardebil Province | |
| 129 km North East of Bileh Savar, Ardebil Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 133 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156040 | IIEES SC | GRMI | Z | 110 | 1 | 2020-08-01 19:55:40 | 2020-08-03 09:53:00 | n |
| 156041 | IIEES SC | AZR | Z | 82 | 1 | 2020-08-01 19:56:41 | 2020-08-03 09:53:00 | n |
| 156042 | IIEES SC | ZNJK | Z | 6.2 | 1 | 2020-08-01 19:56:45 | 2020-08-03 09:53:00 | n |
| 156043 | IIEES SC | SRSL | Z | 7.1 | 1 | 2020-08-01 19:56:21 | 2020-08-03 09:53:00 | n |
| 156044 | IIEES SC | SRSL | Z | 4.7 | 0.84 | 2020-08-01 19:56:17 | 2020-08-03 09:53:00 | n |
| 156045 | IIEES SC | MRVT | Z | 20 | 1 | 2020-08-01 19:57:28 | 2020-08-03 09:53:00 | n |
| 156046 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-08-01 19:57:39 | 2020-08-03 09:53:00 | n |
| 156047 | IIEES SC | SHRO | Z | 2.7 | 1.66 | 2020-08-01 19:56:33 | 2020-08-03 09:53:00 | n |
| 156048 | IIEES SC | BJRD | Z | 9.1 | 1 | 2020-08-01 19:57:50 | 2020-08-03 09:53:00 | n |
| 156049 | IIEES SC | BJRD | Z | 10 | 0.54 | 2020-08-01 19:56:27 | 2020-08-03 09:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2020-08-01 19:55:12 | -0.2 | y | 200 | 205 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-01 19:55:37 | -0.1 | y | 400 | 219 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-01 19:55:40 | 0.2 | y | 422 | 182 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-01 19:55:58 | 0.4 | y | 556 | 213 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-08-01 19:56:14 | -0.2 | y | 700 | 116 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-08-01 19:56:27 | 0.5 | y | 800 | 128 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-08-01 19:56:26 | -0.9 | y | 800 | 113 | |||
