Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2020-08-04 13:22:22.7 |
| Date & Time (Local) | 1399/5/14 17:52:22.7 |

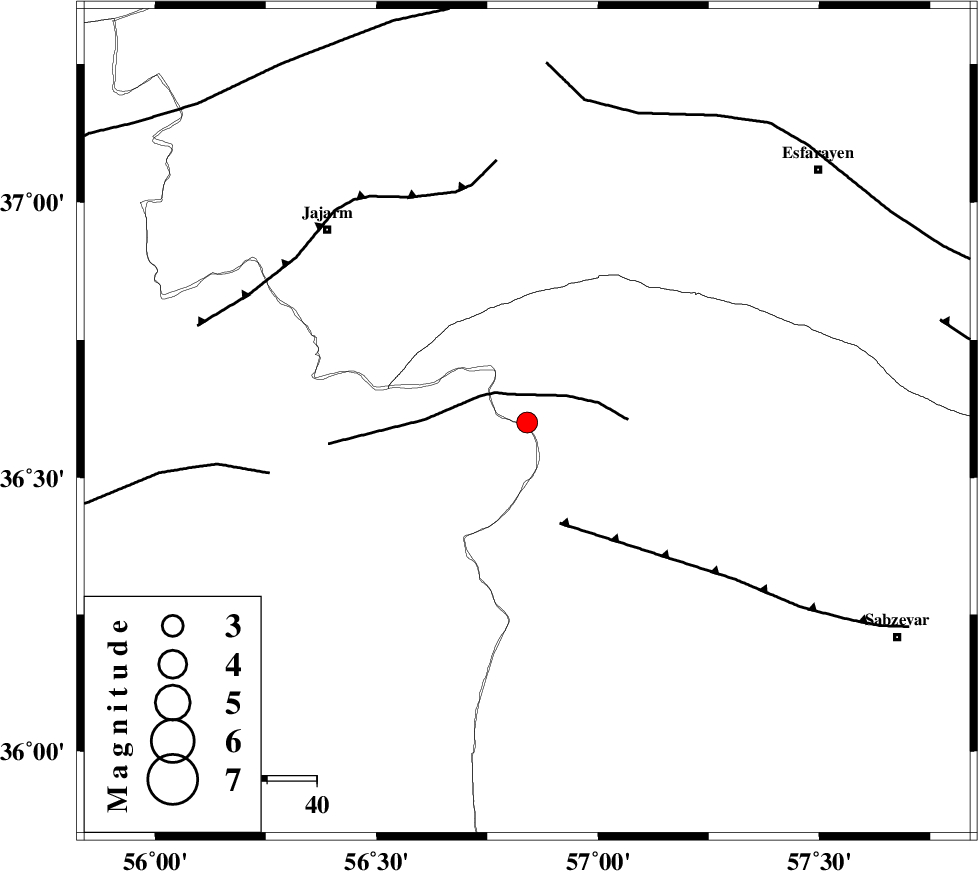

| Location | Lat:36.6 Lon: 56.84 |
| Region | Khorasan(center) Province, 56 km South-East of Jajarm |
Nearest Cities |
|
| 13 km West of Dasturan, Khorasan(center) Province | |
| 13 km North of Frumad, Semnan Province | |
| 20 km West of Jogtay, Khorasan(center) Province | |
| 22 km South of Farashiyan, Khorasan(center) Province | |
| 28 km West of Abuchenari, Khorasan(center) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| JOGHATAI_F (Length: 70 km) , Distance to epicenter: 7 km | |
| SABZEVAR_F (Length: 81 km) , Distance to epicenter: 21 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 49 km | |
| Number of Phases | 10 |
| RMS | 0.8 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156140 | IIEES SC | SBZV | Z | 250 | 1 | 2020-08-04 13:22:56 | 2020-08-05 11:08:00 | n |
| 156141 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-08-04 13:23:13 | 2020-08-05 11:08:00 | n |
| 156142 | IIEES SC | BJRD | Z | 72 | 1 | 2020-08-04 13:23:09 | 2020-08-05 11:08:00 | n |
| 156143 | IIEES SC | MRVT | Z | 120 | 1 | 2020-08-04 13:23:08 | 2020-08-05 11:08:00 | n |
| 156144 | IIEES SC | AKL | Z | 77 | 1 | 2020-08-04 13:23:18 | 2020-08-05 11:08:00 | n |
| 156145 | IIEES SC | GLO | Z | 220 | 1 | 2020-08-04 13:23:51 | 2020-08-05 11:08:00 | n |
| 156146 | IIEES SC | KAGH | Z | 11 | 1 | 2020-08-04 13:23:54 | 2020-08-05 11:08:00 | n |
| 156147 | IIEES SC | TABS | Z | 26 | 1 | 2020-08-04 13:24:08 | 2020-08-05 11:08:00 | n |
| 156148 | IIEES SC | TBJM | Z | 19 | 1 | 2020-08-04 13:23:58 | 2020-08-05 11:08:00 | n |
| 156149 | IIEES SC | YZKH | Z | 10 | 1 | 2020-08-04 13:25:00 | 2020-08-05 11:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SBZV | Z | IP | I | 2020-08-04 13:22:35 | -0.2 | y | 77 | 109 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-08-04 13:22:38 | -1.9 | y | 100 | 229 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-08-04 13:22:44 | -0.3 | y | 133 | 22 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-08-04 13:22:45 | -0.1 | y | 133 | 330 | |||
| IIEES SC | AKL | Z | IP | I | 2020-08-04 13:22:50 | -0.7 | y | 166 | 90 | |||
| IIEES SC | GLO | Z | IP | I | 2020-08-04 13:23:05 | 0.9 | y | 266 | 268 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-08-04 13:23:06 | 0.3 | y | 278 | 82 | |||
| IIEES SC | TABS | Z | IP | I | 2020-08-04 13:23:12 | 0.7 | y | 333 | 176 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-08-04 13:23:14 | 0.6 | y | 344 | 115 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-08-04 13:23:35 | 0.7 | y | 511 | 204 | |||
