Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2020-08-05 00:01:55.9 |
| Date & Time (Local) | 1399/5/15 04:31:55.9 |

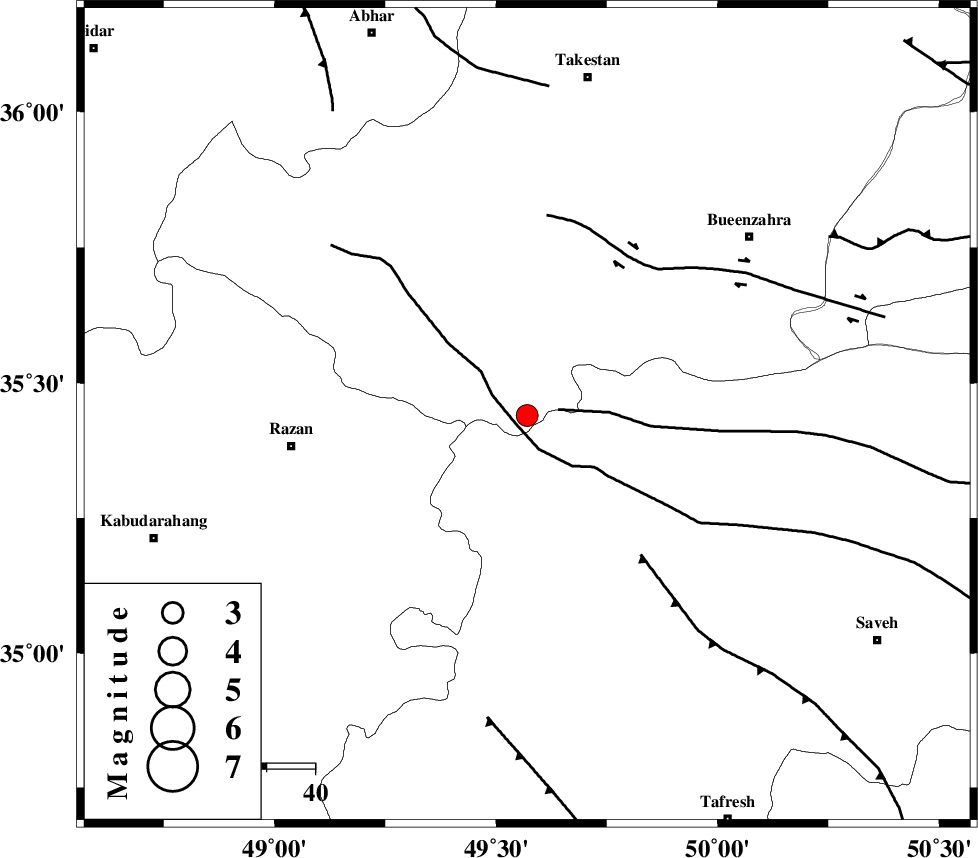

| Location | Lat:35.44 Lon: 49.57 |
| Region | Ghazvin Province, 49 km -East of Razan |
Nearest Cities |
|
| 22 km South East of Kolanjin, Ghazvin Province | |
| 23 km North West of Duzaj, Markazi Province | |
| 25 km North of Yatan, Markazi Province | |
| 30 km North East of Suzan, Hamedan Province | |
| 34 km South East of Avaj, Ghazvin Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 3 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 6 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 37 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156175 | IIEES SC | ASAO | Z | 62 | 1 | 2020-08-05 00:02:35 | 2020-08-05 12:40:00 | n |
| 156176 | IIEES SC | THKV | Z | 240 | 1 | 2020-08-05 00:02:38 | 2020-08-05 12:40:00 | n |
| 156177 | IIEES SC | CHTH | Z | 4.3 | 1 | 2020-08-05 00:02:40 | 2020-08-05 12:40:00 | n |
| 156178 | IIEES SC | ZNJK | Z | 25 | 1 | 2020-08-05 00:03:12 | 2020-08-05 12:40:00 | n |
| 156179 | IIEES SC | GIDE | Z | 270 | 1 | 2020-08-05 00:02:48 | 2020-08-05 12:40:00 | n |
| 156180 | IIEES SC | GHVR | Z | 390 | 1 | 2020-08-05 00:02:44 | 2020-08-05 12:40:00 | n |
| 156181 | IIEES SC | KHMZ | Z | 60 | 1 | 2020-08-05 00:02:58 | 2020-08-05 12:40:00 | n |
| 156182 | IIEES SC | SNGE | Z | 44 | 1 | 2020-08-05 00:02:57 | 2020-08-05 12:40:00 | n |
| 156183 | IIEES SC | DAMV | Z | 110 | 1 | 2020-08-05 00:03:03 | 2020-08-05 12:40:00 | n |
| 156184 | IIEES SC | GTMR | Z | 12 | 1 | 2020-08-05 00:03:42 | 2020-08-05 12:40:00 | n |
| 156185 | IIEES SC | ILBA | Z | 4.8 | 1 | 2020-08-05 00:03:51 | 2020-08-05 12:40:00 | n |
| 156186 | IIEES SC | GRMI | Z | 5.8 | 1 | 2020-08-05 00:04:04 | 2020-08-05 12:40:00 | n |
| 156187 | IIEES SC | NASN | Z | 8.4 | 1 | 2020-08-05 00:03:57 | 2020-08-05 12:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | QABG | E | IP | I | 2020-08-05 00:02:01 | 0.1 | y | 33 | 2 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-05 00:02:14 | -0.1 | y | 111 | 157 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-05 00:02:17 | 0 | y | 133 | 66 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-05 00:02:20 | -0.4 | y | 144 | 70 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-05 00:02:21 | -0.4 | y | 155 | 330 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-08-05 00:02:24 | 0.4 | y | 166 | 10 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-08-05 00:02:27 | 0.6 | y | 189 | 125 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-05 00:02:27 | -0.3 | y | 189 | 169 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-05 00:02:29 | -0.2 | y | 211 | 259 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-08-05 00:02:30 | -0.5 | y | 222 | 84 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-05 00:02:46 | 0.9 | y | 333 | 187 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-08-05 00:02:50 | 0.2 | y | 366 | 237 | |||
| IIEES SC | GLO | Z | IP | I | 2020-08-05 00:02:54 | 0.3 | y | 400 | 73 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-08-05 00:02:54 | 0.2 | y | 400 | 338 | |||
| IIEES SC | NASN | Z | IP | I | 2020-08-05 00:02:55 | -0.4 | y | 422 | 134 | |||
