Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2020-08-12 01:06:38.2 |
| Date & Time (Local) | 1399/5/22 05:36:38.2 |

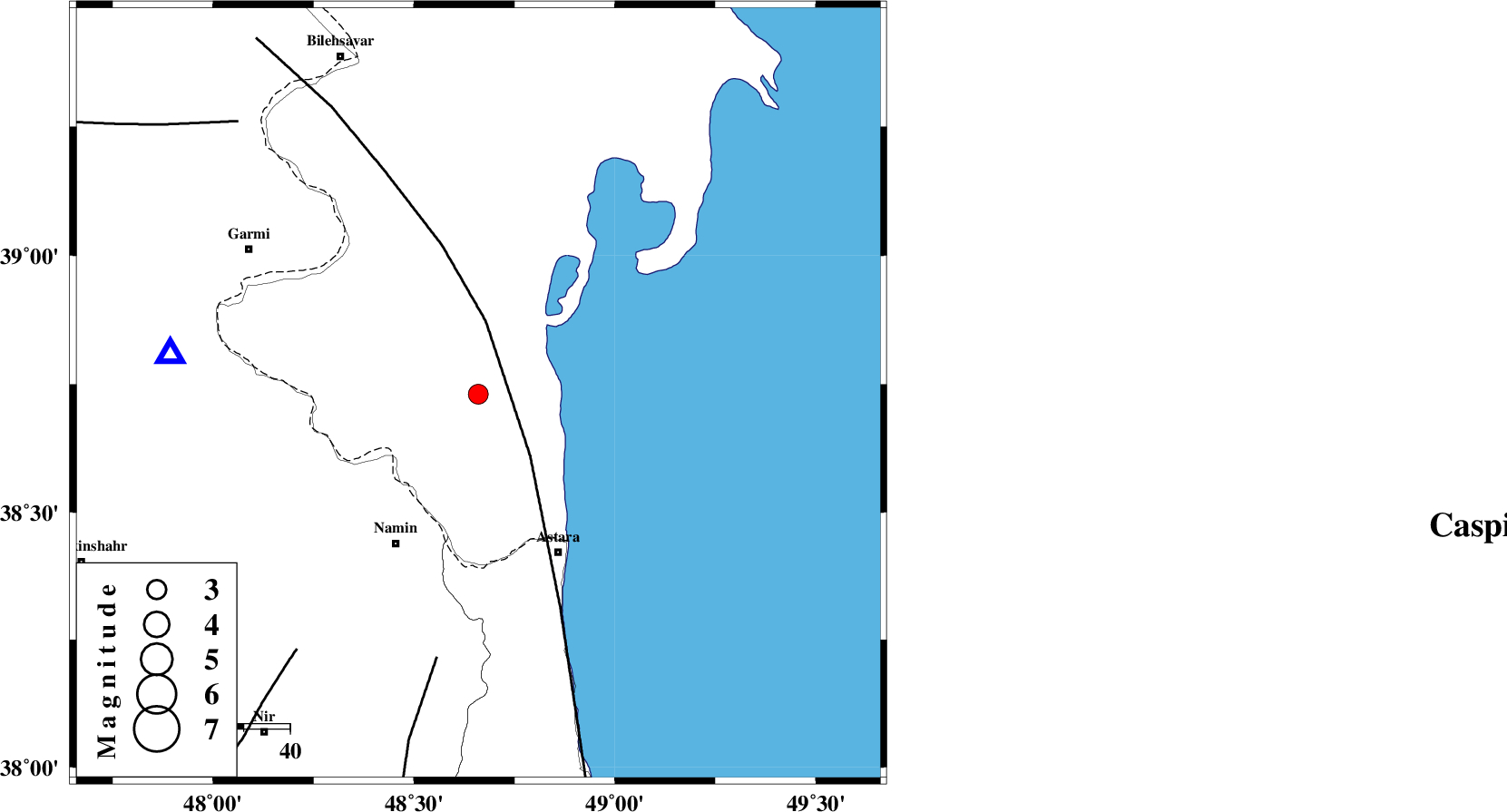

| Location | Lat:38.73 Lon: 48.66 |
| Region | Azerbaijan, 37 km North-East of Namin |
Nearest Cities |
|
| 31 km North East of Anbaran, Ardebil Province | |
| 32 km North East of Lurun, Ardebil Province | |
| 36 km North East of Khaneh zeinian, Ardebil Province | |
| 37 km North East of Namin, Ardebil Province | |
| 38 km North West of Astara, Gilan Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 16 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 58 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 68 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156299 | IIEES SC | GRMI | Z | 500 | 1 | 2020-08-12 01:06:59 | 2020-08-16 12:00:00 | n |
| 156300 | IIEES SC | ZNJK | Z | 26 | 1 | 2020-08-12 01:07:57 | 2020-08-16 12:00:00 | n |
| 156301 | IIEES SC | GIDE | Z | 69 | 1 | 2020-08-12 01:07:50 | 2020-08-16 12:00:00 | n |
| 156302 | IIEES SC | MRD | Z | 96 | 1 | 2020-08-12 01:07:54 | 2020-08-16 12:00:00 | n |
| 156303 | IIEES SC | AZR | Z | 120 | 1 | 2020-08-12 01:08:01 | 2020-08-16 12:00:00 | n |
| 156304 | IIEES SC | QABG | Z | 2.7 | 1 | 2020-08-12 01:08:07 | 2020-08-16 12:00:00 | n |
| 156305 | IIEES SC | THKV | Z | 18 | 1 | 2020-08-12 01:08:13 | 2020-08-16 12:00:00 | n |
| 156306 | IIEES SC | CHTH | Z | 4.8 | 1 | 2020-08-12 01:08:38 | 2020-08-16 12:00:00 | n |
| 156307 | IIEES SC | SRSL | Z | 7 | 1 | 2020-08-12 01:08:40 | 2020-08-16 12:00:00 | n |
| 156308 | IIEES SC | SNGE | Z | 3.8 | 1 | 2020-08-12 01:08:38 | 2020-08-16 12:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | N | IS | I | 2020-08-12 01:06:58 | -0.3 | y | 66 | 278 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-08-12 01:06:50 | 0.3 | y | 66 | 278 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-12 01:07:13 | -0.5 | y | 233 | 179 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-08-12 01:07:12 | -1.4 | y | 233 | 151 | |||
| IIEES SC | MRD | Z | IP | I | 2020-08-12 01:07:17 | 0.2 | y | 255 | 270 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-12 01:07:17 | -0.3 | y | 266 | 244 | |||
| IIEES SC | QABG | Z | IP | I | 2020-08-12 01:07:28 | 0.1 | y | 344 | 166 | |||
| IIEES SC | MAKU | N | IP | I | 2020-08-12 01:07:33 | 3.9 | n | 4 | 355 | 281 | ||
| IIEES SC | THKV | Z | IP | I | 2020-08-12 01:07:32 | 0.6 | y | 366 | 148 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-12 01:07:33 | -0.1 | y | 378 | 145 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-12 01:07:35 | 0.5 | y | 400 | 226 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-12 01:07:38 | 0.9 | y | 422 | 196 | |||
