Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-08-11 06:21:09.8 |
| Date & Time (Local) | 1399/5/21 10:51:09.8 |

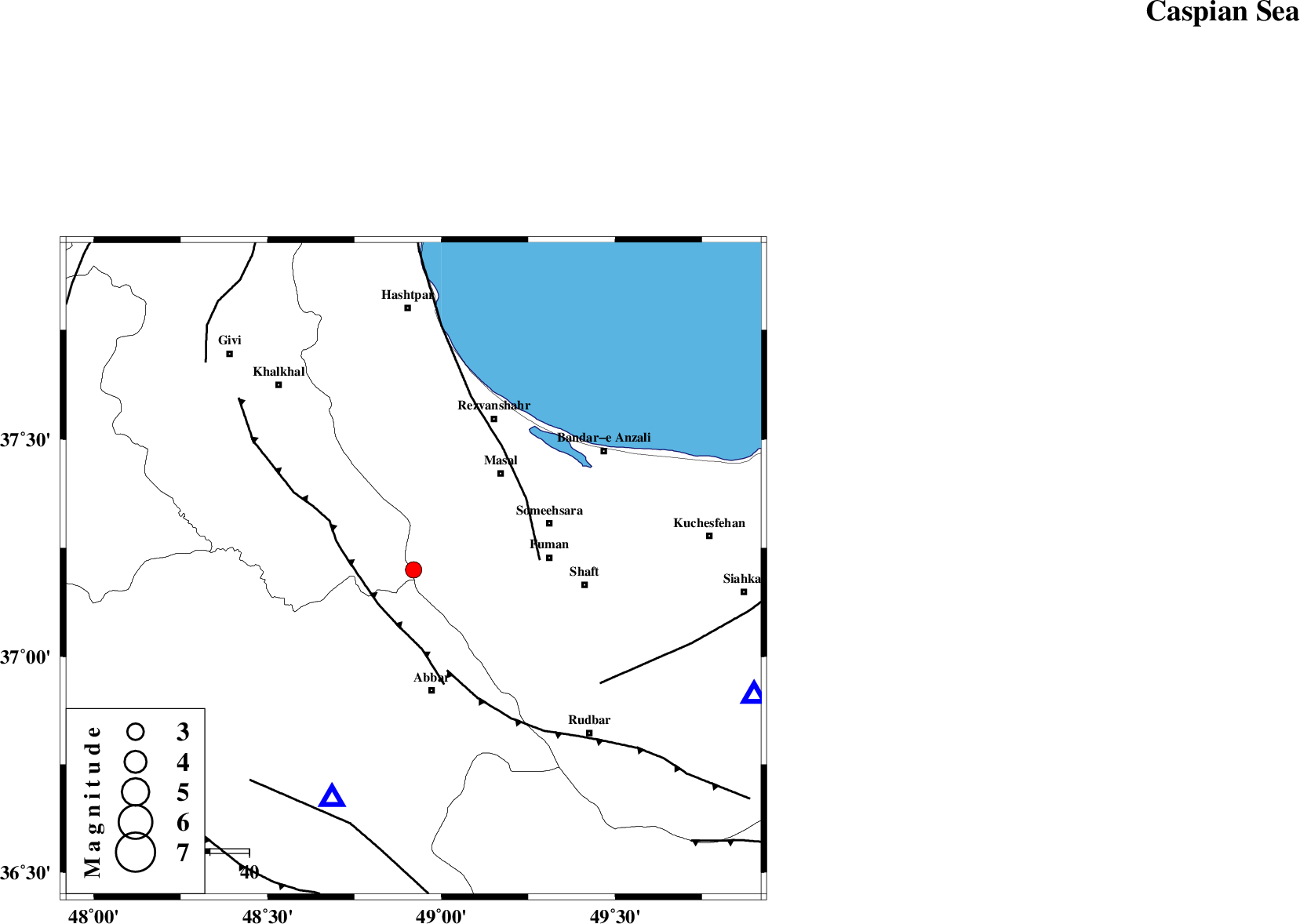

| Location | Lat:37.2 Lon: 48.92 |
| Region | Gilan Province, 31 km North of Abbar |
Nearest Cities |
|
| 19 km South East of Shal, Ardebil Province | |
| 22 km North East of Deram, Zanjan Province | |
| 23 km North West of Rudkhan, Gilan Province | |
| 24 km North West of Balamakolovan, Gilan Province | |
| 25 km North West of Qaleh rudkhan, Gilan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MASULEL_F (Length: 90 km) , Distance to epicenter: 13 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 27 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 32 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 19 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156377 | IIEES SC | GIDE | Z | 320 | 1 | 2020-08-11 06:21:37 | 2020-08-17 12:01:00 | n |
| 156378 | IIEES SC | GRMI | Z | 69 | 1 | 2020-08-11 06:22:10 | 2020-08-17 12:01:00 | n |
| 156379 | IIEES SC | THKV | Z | 78 | 1 | 2020-08-11 06:22:16 | 2020-08-17 12:01:00 | n |
| 156380 | IIEES SC | CHTH | Z | 2.6 | 1 | 2020-08-11 06:21:52 | 2020-08-17 12:01:00 | n |
| 156381 | IIEES SC | AZR | Z | 150 | 1 | 2020-08-11 06:22:30 | 2020-08-17 12:01:00 | n |
| 156382 | IIEES SC | SNGE | Z | 23 | 1 | 2020-08-11 06:22:28 | 2020-08-17 12:01:00 | n |
| 156383 | IIEES SC | ASAO | Z | 24 | 1 | 2020-08-11 06:22:40 | 2020-08-17 12:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | N | IS | I | 2020-08-11 06:21:24 | -5 | n | 4 | 66 | 200 | ||
| IIEES SC | ZNJK | Z | IP | I | 2020-08-11 06:21:17 | -3.2 | n | 4 | 66 | 200 | ||
| IIEES SC | GIDE | Z | IP | I | 2020-08-11 06:21:25 | -0.9 | y | 88 | 109 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-08-11 06:21:42 | 0.1 | y | 200 | 333 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-11 06:21:46 | 0.1 | y | 222 | 129 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-11 06:21:48 | 0.2 | y | 244 | 126 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-11 06:21:50 | -0.2 | y | 266 | 282 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-11 06:21:51 | -0.2 | y | 278 | 211 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-11 06:21:58 | 1.3 | y | 311 | 161 | |||
| IIEES SC | MRD | Z | IP | I | 2020-08-11 06:22:04 | 5.7 | n | 4 | 333 | 301 | ||
