Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2020-08-10 01:38:34.1 |
| Date & Time (Local) | 1399/5/20 06:08:34.1 |

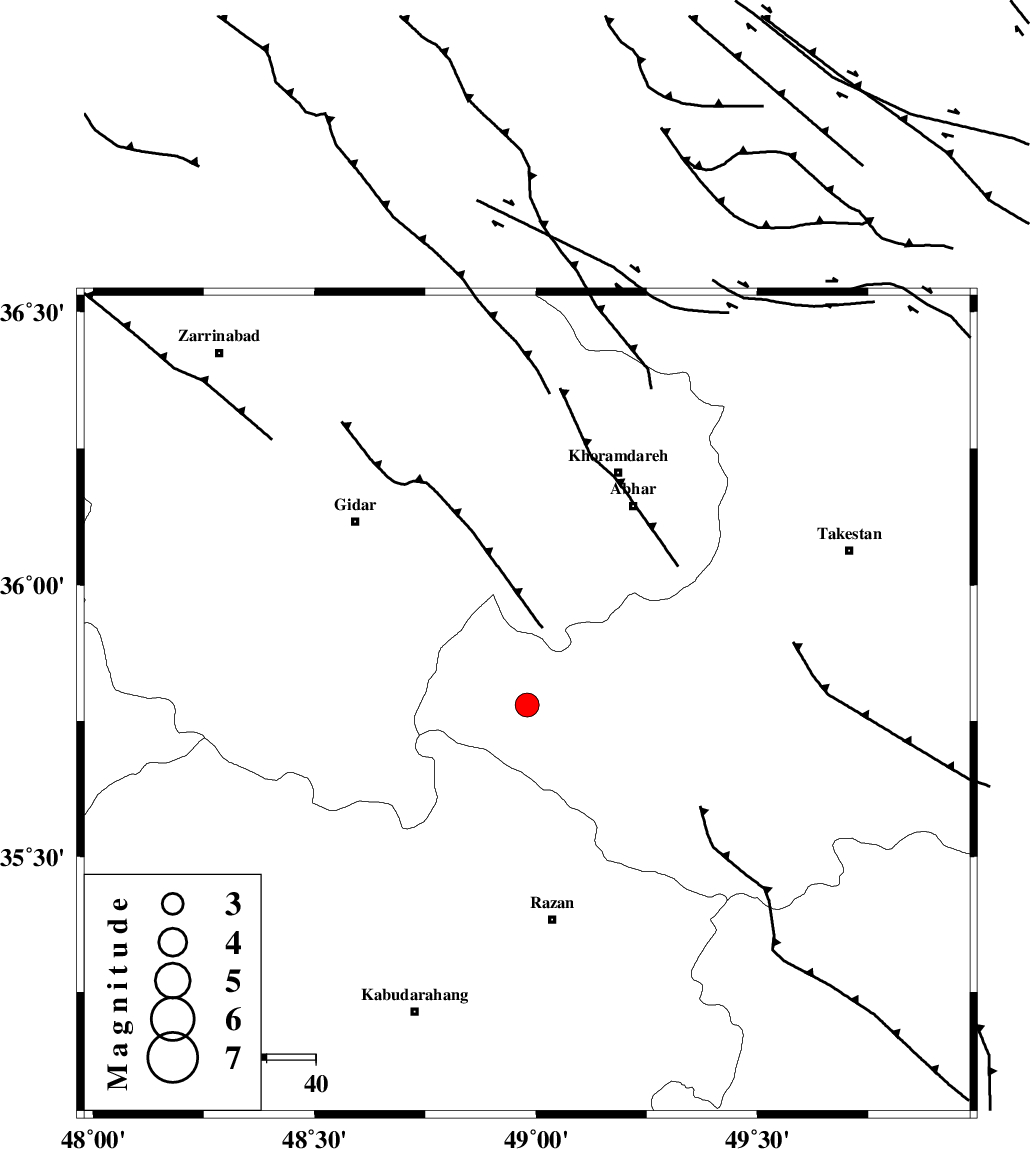

| Location | Lat:35.78 Lon: 48.98 |
| Region | Ghazvin Province, 44 km North of Razan |
Nearest Cities |
|
| 28 km North West of Ab-e garm, Ghazvin Province | |
| 30 km North East of Kahla, Zanjan Province | |
| 32 km North West of Avaj, Ghazvin Province | |
| 33 km North East of Khorandeh, Hamedan Province | |
| 36 km South West of Darsajin, Zanjan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 14 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 28 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 53 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156384 | IIEES SC | ZNJK | Z | 130 | 1 | 2020-08-10 01:39:04 | 2020-08-18 10:58:00 | n |
| 156385 | IIEES SC | GIDE | Z | 820 | 1 | 2020-08-10 01:39:26 | 2020-08-18 10:58:00 | n |
| 156386 | IIEES SC | SNGE | Z | 450 | 1 | 2020-08-10 01:39:23 | 2020-08-18 10:58:00 | n |
| 156387 | IIEES SC | ASAO | Z | 200 | 1 | 2020-08-10 01:39:25 | 2020-08-18 10:58:00 | n |
| 156388 | IIEES SC | THKV | Z | 290 | 1 | 2020-08-10 01:39:30 | 2020-08-18 10:58:00 | n |
| 156389 | IIEES SC | CHTH | Z | 2.2 | 1 | 2020-08-10 01:39:46 | 2020-08-18 10:58:00 | n |
| 156390 | IIEES SC | KHMZ | Z | 170 | 1 | 2020-08-10 01:39:47 | 2020-08-18 10:58:00 | n |
| 156391 | IIEES SC | GHVR | Z | 290 | 1 | 2020-08-10 01:39:58 | 2020-08-18 10:58:00 | n |
| 156392 | IIEES SC | DAMV | Z | 150 | 1 | 2020-08-10 01:39:57 | 2020-08-18 10:58:00 | n |
| 156393 | IIEES SC | MAHB | Z | 70 | 1 | 2020-08-10 01:40:19 | 2020-08-18 10:58:00 | n |
| 156394 | IIEES SC | SRSL | Z | 58 | 1 | 2020-08-10 01:40:23 | 2020-08-18 10:58:00 | n |
| 156395 | IIEES SC | AZR | Z | 220 | 1 | 2020-08-10 01:40:32 | 2020-08-18 10:58:00 | n |
| 156396 | IIEES SC | ILBA | Z | 30 | 1 | 2020-08-10 01:40:17 | 2020-08-18 10:58:00 | n |
| 156397 | IIEES SC | GTMR | Z | 47 | 1 | 2020-08-10 01:40:28 | 2020-08-18 10:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ZNJK | Z | IP | I | 2020-08-10 01:38:51 | 0 | y | 100 | 345 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-08-10 01:38:59 | 0.2 | y | 155 | 33 | |||
| IIEES SC | SNGE | N | IS | I | 2020-08-10 01:39:21 | -0.7 | y | 166 | 243 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-08-10 01:39:01 | -0.7 | y | 166 | 243 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-08-10 01:39:01 | -0.7 | y | 166 | 145 | |||
| IIEES SC | THKV | N | IS | I | 2020-08-10 01:39:24 | 0.1 | y | 177 | 85 | |||
| IIEES SC | THKV | Z | IP | I | 2020-08-10 01:39:02 | -0.1 | y | 177 | 85 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-08-10 01:39:05 | -0.6 | y | 200 | 86 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-08-10 01:39:12 | -0.2 | y | 244 | 158 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-08-10 01:39:14 | 0.4 | y | 255 | 125 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-08-10 01:39:15 | -0.9 | y | 266 | 93 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-08-10 01:39:20 | -0.9 | y | 311 | 290 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-08-10 01:39:24 | 1.5 | y | 322 | 279 | |||
| IIEES SC | AZR | Z | IP | I | 2020-08-10 01:39:25 | 0.5 | y | 344 | 308 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-08-10 01:39:26 | 0.7 | y | 344 | 227 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-08-10 01:39:29 | 1.3 | y | 366 | 178 | |||
