Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-08-22 15:40:49.1 |
| Date & Time (Local) | 1399/6/1 20:10:49.1 |

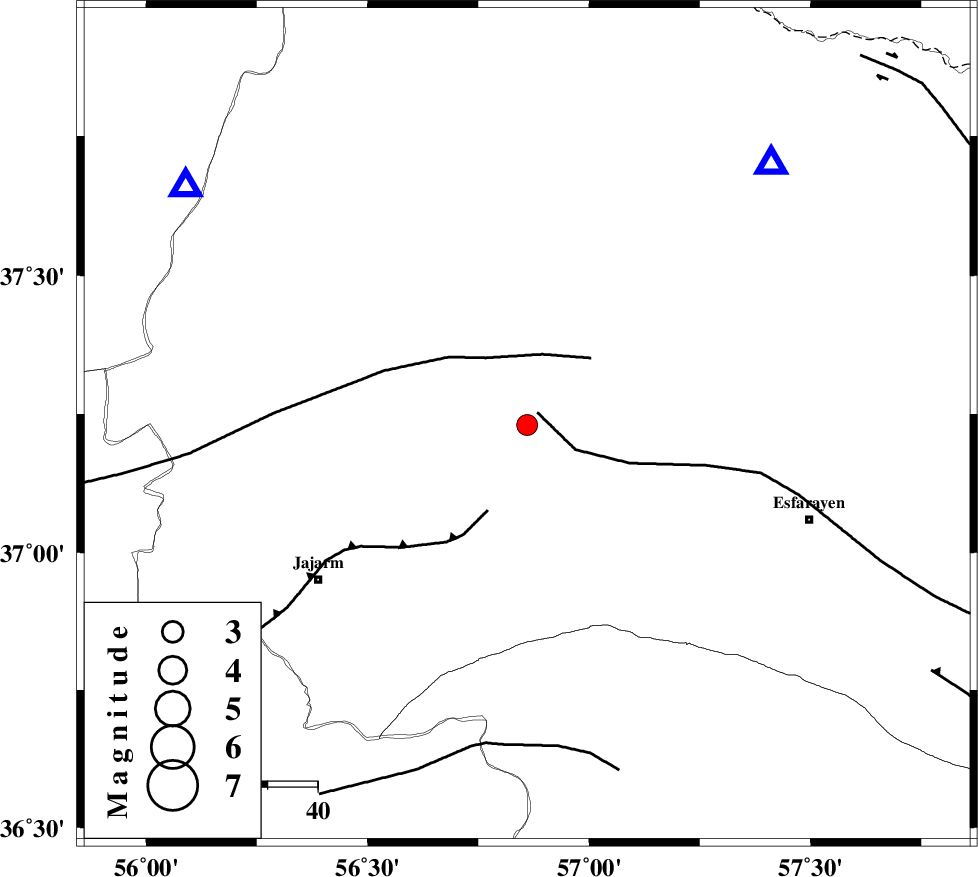

| Location | Lat:37.23 Lon: 56.86 |
| Region | Khorasan(north) Province, 36 km South of Ashkhaneh |
Nearest Cities |
|
| 13 km South of Shogan, Khorasan(north) Province | |
| 32 km North West of Cheharborj, Khorasan(north) Province | |
| 36 km South of Ashkhaneh, Khorasan(north) Province | |
| 42 km North West of Zarqabad, Khorasan(north) Province | |
| 48 km North of Farashiyan, Khorasan(center) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 3 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 15 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 19 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 156571 | IIEES SC | BJRD | Z | 74 | 1 | 2020-08-22 15:41:19 | 2020-08-24 10:16:00 | n |
| 156572 | IIEES SC | MRVT | Z | 86 | 1 | 2020-08-22 15:41:22 | 2020-08-24 10:16:00 | n |
| 156573 | IIEES SC | SBZV | Z | 81 | 1 | 2020-08-22 15:41:26 | 2020-08-24 10:16:00 | n |
| 156574 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-08-22 15:41:54 | 2020-08-24 10:16:00 | n |
| 156575 | IIEES SC | KAGH | Z | 9.9 | 1 | 2020-08-22 15:42:22 | 2020-08-24 10:16:00 | n |
| 156576 | IIEES SC | GLO | Z | 150 | 1 | 2020-08-22 15:42:20 | 2020-08-24 10:16:00 | n |
| 156577 | IIEES SC | ANJ | Z | 10 | 1 | 2020-08-22 15:42:09 | 2020-08-24 10:16:00 | n |
| 156578 | IIEES SC | TABS | Z | 13 | 1 | 2020-08-22 15:42:53 | 2020-08-24 10:16:00 | n |
| 156579 | IIEES SC | SHRT | Z | 3.5 | 1 | 2020-08-22 15:43:27 | 2020-08-24 10:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | IP | I | 2020-08-22 15:41:01 | -0.1 | y | 66 | 43 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-08-22 15:41:03 | -0.1 | y | 77 | 305 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-08-22 15:41:08 | -0.6 | y | 111 | 144 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-08-22 15:41:14 | -0.9 | y | 155 | 209 | |||
| IIEES SC | AKL | Z | IP | I | 2020-08-22 15:41:19 | 0.3 | y | 177 | 113 | |||
| IIEES SC | KAGH | N | IP | I | 2020-08-22 15:41:33 | 1.2 | y | 278 | 97 | |||
| IIEES SC | GLO | Z | IP | I | 2020-08-22 15:41:33 | 0.7 | y | 278 | 253 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-08-22 15:41:39 | 0.8 | y | 333 | 233 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-08-22 15:41:44 | -0.4 | y | 378 | 125 | |||
| IIEES SC | TABS | Z | IP | I | 2020-08-22 15:41:46 | -0.5 | y | 400 | 177 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-08-22 15:42:01 | 1 | y | 500 | 142 | |||
