Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2020-09-08 07:14:30.5 |
| Date & Time (Local) | 1399/6/18 11:44:30.5 |
| Location | Lat:35.67 Lon: 52.54 |
| Region | Tehran Province, 22 km -West of Firuzkuh |
Nearest Cities |
|
| 12 km North of Atashan, Tehran Province | |
| 15 km South of Arjomand, Tehran Province | |
| 20 km South West of Shahrabad, Tehran Province | |
| 21 km North East of Sarbandan, Tehran Province | |
| 22 km West of Firuzkuh, Tehran Province | |
| Depth | 10 km |
| Agency | |

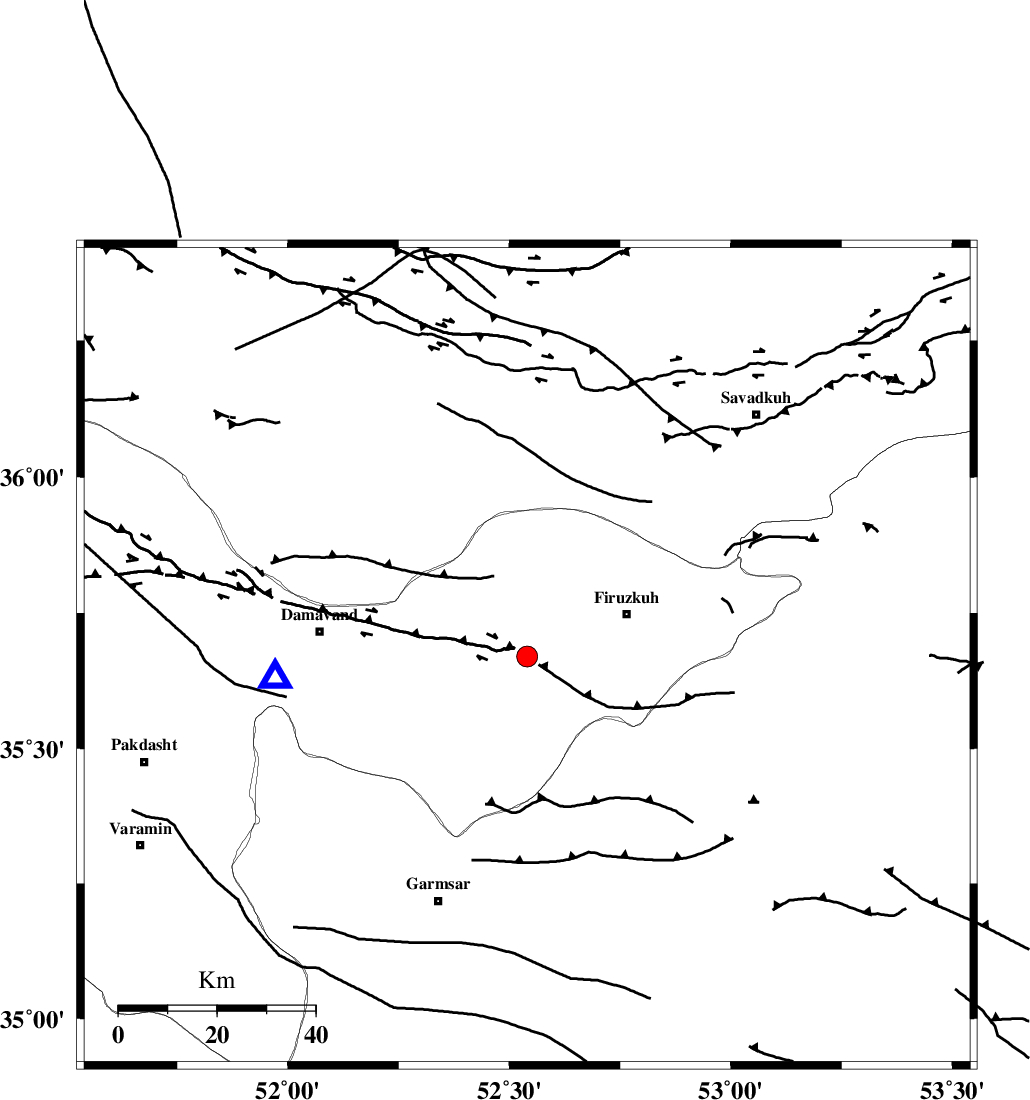

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 9 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 38 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 42 km | |
| Number of Phases | 18 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157031 | IIEES SC | DAMV | Z | 430 | 1 | 2020-09-08 07:14:50 | 2020-09-08 01:48:00 | n |
| 157032 | IIEES SC | CHTH | Z | 46 | 1 | 2020-09-08 07:15:13 | 2020-09-08 01:48:00 | n |
| 157033 | IIEES SC | THKV | Z | 170 | 1 | 2020-09-08 07:15:20 | 2020-09-08 01:48:00 | n |
| 157034 | IIEES SC | ABGH | Z | 110 | 1 | 2020-09-08 07:15:47 | 2020-09-08 01:48:00 | n |
| 157035 | IIEES SC | ASAO | Z | 33 | 1 | 2020-09-08 07:15:47 | 2020-09-08 01:48:00 | n |
| 157036 | IIEES SC | GIDE | Z | 90 | 1 | 2020-09-08 07:15:57 | 2020-09-08 01:48:00 | n |
| 157037 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-09-08 07:17:11 | 2020-09-08 01:48:00 | n |
| 157038 | IIEES SC | KHMZ | Z | 22 | 1 | 2020-09-08 07:16:07 | 2020-09-08 01:48:00 | n |
| 157039 | IIEES SC | NASN | Z | 15 | 1 | 2020-09-08 07:16:07 | 2020-09-08 01:48:00 | n |
| 157040 | IIEES SC | YZKH | Z | 11 | 1 | 2020-09-08 07:16:35 | 2020-09-08 01:48:00 | n |
| 157041 | IIEES SC | GTMR | Z | 6.1 | 1 | 2020-09-08 07:16:56 | 2020-09-08 01:48:00 | n |
| 157042 | IIEES SC | TABS | Z | 9.8 | 1 | 2020-09-08 07:16:58 | 2020-09-08 01:48:00 | n |
| 157043 | IIEES SC | SNGE | Z | 5.3 | 1 | 2020-09-08 07:16:29 | 2020-09-08 01:48:00 | n |
| 157044 | IIEES SC | GRMI | Z | 4.7 | 1 | 2020-09-08 07:16:47 | 2020-09-08 01:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | N | IS | I | 2020-09-08 07:14:46 | -0.4 | y | 55 | 266 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-08 07:14:38 | -1.3 | y | 55 | 266 | |||
| IIEES SC | CHTH | N | IS | I | 2020-09-08 07:15:07 | -1.9 | n | 4 | 133 | 282 | ||
| IIEES SC | CHTH | Z | IP | I | 2020-09-08 07:14:52 | -0.5 | y | 133 | 282 | |||
| IIEES SC | THKV | N | IS | I | 2020-09-08 07:15:15 | 0.4 | y | 155 | 280 | |||
| IIEES SC | THKV | Z | IP | I | 2020-09-08 07:14:55 | 0 | y | 155 | 280 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-09-08 07:15:38 | 38.9 | n | 4 | 177 | 222 | ||
| IIEES SC | ABGH | Z | IP | I | 2020-09-08 07:15:07 | -0.2 | y | 233 | 60 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-08 07:15:10 | -0.3 | y | 255 | 242 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-09-08 07:15:14 | 1.4 | y | 278 | 301 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-08 07:15:18 | 0.2 | y | 311 | 83 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-08 07:15:19 | 0.9 | y | 322 | 228 | |||
| IIEES SC | NASN | Z | IP | I | 2020-09-08 07:15:19 | 1 | y | 322 | 176 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-08 07:15:28 | -0.9 | y | 411 | 152 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-09-08 07:15:38 | 0.5 | y | 478 | 222 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-08 07:15:37 | -0.5 | y | 478 | 118 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-08 07:15:37 | -0.1 | y | 478 | 262 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-08 07:15:45 | 0.1 | y | 544 | 310 | |||
