Event Specification
Magnitude |
5.2 |
| Date & Time (UTC) | 2020-09-26 05:46:54.2 |
| Date & Time (Local) | 1399/7/5 09:16:54.2 |
| Location | Lat:38.04 Lon: 56.02 |
| Region | Golestan Province, 87 km North-East of Kalaleh |
Nearest Cities |
|
| 16 km North of Moravehtappeh, Golestan Province | |
| 25 km North West of Qazanqayeh, Golestan Province | |
| 43 km North West of Garmab, Khorasan(north) Province | |
| 45 km North East of Karand, Golestan Province | |
| 45 km North of Golidagh, Golestan Province | |
| Depth | 10 km |
| Agency | |

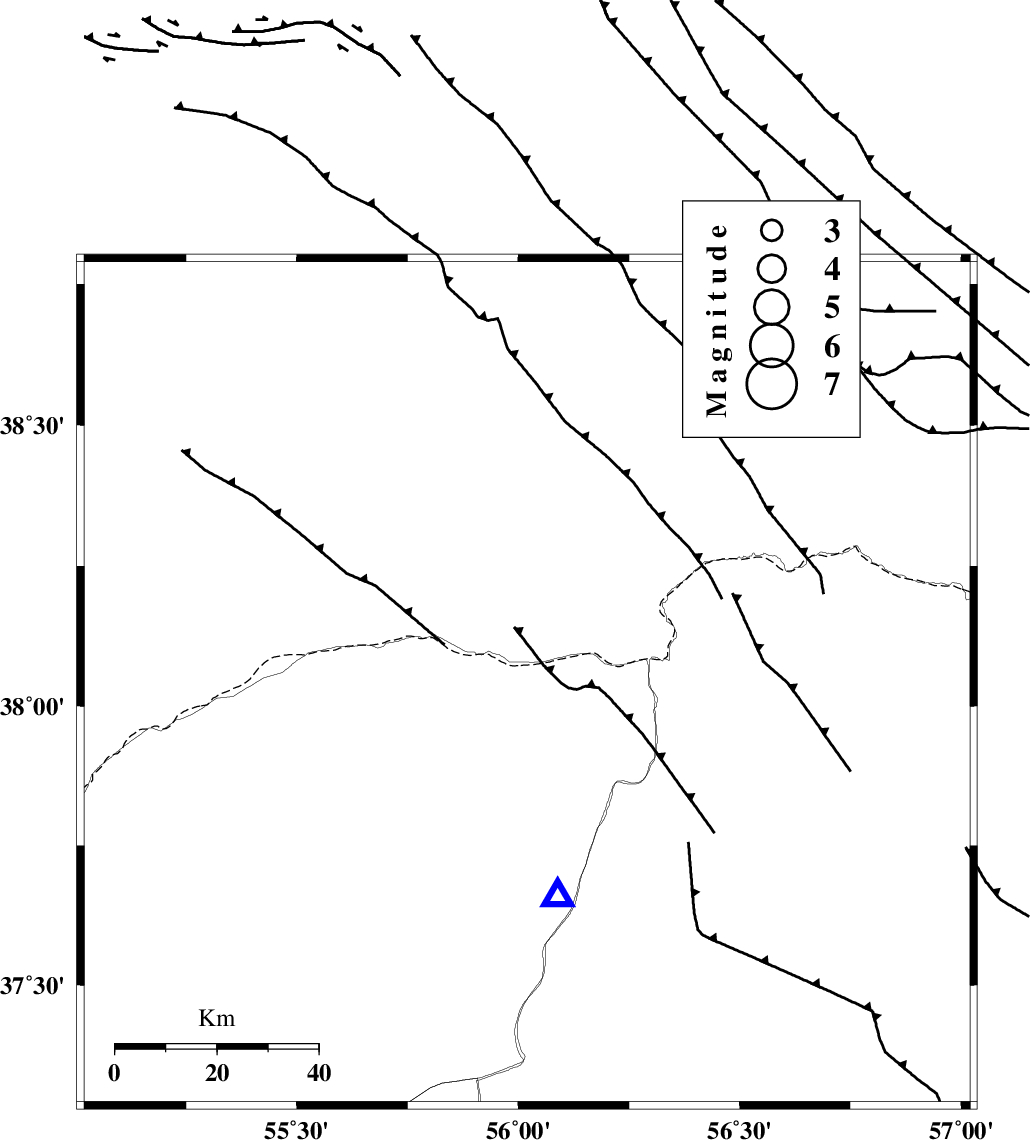

Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 91 km | |
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 98 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 105 km | |
| Number of Phases | 57 |
| RMS | 0.5 |
| Number of Stations | 34 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157592 | IIEES SC | BJRD | Z | 19000 | 1 | 2020-09-26 05:47:54 | 2020-09-26 09:56:00 | n |
| 157593 | IIEES SC | ABGH | Z | 4.8 | 1 | 2020-09-26 05:48:34 | 2020-09-26 09:56:00 | n |
| 157594 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-09-26 05:47:52 | 2020-09-26 09:56:00 | n |
| 157595 | IIEES SC | SBZV | Z | 18000 | 1 | 2020-09-26 05:48:17 | 2020-09-26 09:56:00 | n |
| 157596 | IIEES SC | GLO | Z | 54000 | 1 | 2020-09-26 05:48:21 | 2020-09-26 09:56:00 | n |
| 157597 | IIEES SC | ANJ | Z | 1200 | 1 | 2020-09-26 05:48:30 | 2020-09-26 09:56:00 | n |
| 157598 | IIEES SC | KAGH | Z | 2400 | 1 | 2020-09-26 05:49:00 | 2020-09-26 09:56:00 | n |
| 157599 | IIEES SC | DAMV | Z | 2000 | 1 | 2020-09-26 05:49:22 | 2020-09-26 09:56:00 | n |
| 157600 | IIEES SC | TBJM | Z | 3400 | 1 | 2020-09-26 05:49:42 | 2020-09-26 09:56:00 | n |
| 157601 | IIEES SC | CHTH | Z | 790 | 1 | 2020-09-26 05:49:37 | 2020-09-26 09:56:00 | n |
| 157602 | IIEES SC | TABS | Z | 2700 | 1 | 2020-09-26 05:49:32 | 2020-09-26 09:56:00 | n |
| 157603 | IIEES SC | THKV | Z | 1900 | 1 | 2020-09-26 05:49:35 | 2020-09-26 09:56:00 | n |
| 157604 | IIEES SC | GHVR | Z | 1500 | 1 | 2020-09-26 05:50:07 | 2020-09-26 09:56:00 | n |
| 157605 | IIEES SC | GHVR | Z | 970 | 0.9 | 2020-09-26 05:48:43 | 2020-09-26 09:56:00 | n |
| 157606 | IIEES SC | SHRT | Z | 1100 | 1 | 2020-09-26 05:50:14 | 2020-09-26 09:56:00 | n |
| 157607 | IIEES SC | SHRT | Z | 630 | 0.92 | 2020-09-26 05:48:47 | 2020-09-26 09:56:00 | n |
| 157608 | IIEES SC | QABG | Z | 120 | 1 | 2020-09-26 05:50:30 | 2020-09-26 09:56:00 | n |
| 157609 | IIEES SC | QABG | Z | 72 | 1.2 | 2020-09-26 05:48:48 | 2020-09-26 09:56:00 | n |
| 157610 | IIEES SC | YZKH | Z | 780 | 1 | 2020-09-26 05:50:28 | 2020-09-26 09:56:00 | n |
| 157611 | IIEES SC | YZKH | Z | 270 | 0.6 | 2020-09-26 05:48:46 | 2020-09-26 09:56:00 | n |
| 157612 | IIEES SC | ASAO | Z | 400 | 1 | 2020-09-26 05:50:27 | 2020-09-26 09:56:00 | n |
| 157613 | IIEES SC | ASAO | Z | 350 | 1 | 2020-09-26 05:48:54 | 2020-09-26 09:56:00 | n |
| 157614 | IIEES SC | ZNJK | Z | 230 | 1 | 2020-09-26 05:49:15 | 2020-09-26 09:56:00 | n |
| 157615 | IIEES SC | ZNJK | Z | 180 | 0.41 | 2020-09-26 05:48:27 | 2020-09-26 09:56:00 | n |
| 157616 | IIEES SC | KHMZ | Z | 240 | 1 | 2020-09-26 05:50:45 | 2020-09-26 09:56:00 | n |
| 157617 | IIEES SC | KHMZ | Z | 77 | 0.83 | 2020-09-26 05:49:00 | 2020-09-26 09:56:00 | n |
| 157618 | IIEES SC | BSRN | Z | 460 | 1 | 2020-09-26 05:50:56 | 2020-09-26 09:56:00 | n |
| 157619 | IIEES SC | BSRN | Z | 160 | 0.98 | 2020-09-26 05:48:50 | 2020-09-26 09:56:00 | n |
| 157620 | IIEES SC | MEH | Z | 150 | 1.02 | 2020-09-26 05:49:04 | 2020-09-26 09:56:00 | n |
| 157621 | IIEES SC | SNGE | Z | 78 | 1 | 2020-09-26 05:50:47 | 2020-09-26 09:56:00 | n |
| 157622 | IIEES SC | SNGE | Z | 54 | 0.95 | 2020-09-26 05:49:16 | 2020-09-26 09:56:00 | n |
| 157623 | IIEES SC | AZR | Z | 1500 | 1 | 2020-09-26 05:49:00 | 2020-09-26 09:56:00 | n |
| 157624 | IIEES SC | AZR | Z | 1300 | 0.92 | 2020-09-26 05:49:05 | 2020-09-26 09:56:00 | n |
| 157625 | IIEES SC | MRD | Z | 240 | 0.79 | 2020-09-26 05:49:09 | 2020-09-26 09:56:00 | n |
| 157626 | IIEES SC | MAHB | Z | 180 | 0.68 | 2020-09-26 05:49:09 | 2020-09-26 09:56:00 | n |
| 157627 | IIEES SC | AMIS | Z | 86 | 0.75 | 2020-09-26 05:49:21 | 2020-09-26 09:56:00 | n |
| 157628 | IIEES SC | SRSL | Z | 67 | 0.62 | 2020-09-26 05:49:07 | 2020-09-26 09:56:00 | n |
| 157629 | IIEES SC | GNI | Z | 320 | 0.84 | 2020-09-26 05:49:27 | 2020-09-26 09:56:00 | n |
| 157630 | IIEES SC | ILBA | Z | 31 | 0.88 | 2020-09-26 05:49:19 | 2020-09-26 09:56:00 | n |
| 157631 | IIEES SC | ZHSF | Z | 19 | 0.89 | 2020-09-26 05:49:36 | 2020-09-26 09:56:00 | n |
| 157632 | IIEES SC | AHRM | Z | 25 | 0.9 | 2020-09-26 05:49:42 | 2020-09-26 09:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | IP | I | 2020-09-26 05:47:01 | -0.3 | y | 44 | 172 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-09-26 05:47:15 | -0.5 | y | 122 | 107 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-09-26 05:47:23 | -0.5 | y | 177 | 217 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-26 05:47:30 | -0.4 | y | 222 | 180 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-09-26 05:47:31 | 0.5 | y | 233 | 142 | |||
| IIEES SC | GLO | Z | IP | I | 2020-09-26 05:47:33 | -0.9 | y | 255 | 229 | |||
| IIEES SC | AKL | Z | IP | I | 2020-09-26 05:47:39 | 0.5 | y | 289 | 124 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-09-26 05:47:45 | 0.5 | y | 344 | 213 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-09-26 05:47:48 | -0.2 | y | 366 | 109 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-26 05:47:59 | 0.7 | y | 444 | 234 | |||
| IIEES SC | SRKH | Z | IP | I | 2020-09-26 05:48:02 | -0.1 | y | 489 | 110 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-09-26 05:48:04 | 0.7 | y | 489 | 129 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-26 05:48:04 | 0 | y | 500 | 242 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-26 05:48:04 | 0.5 | y | 500 | 169 | |||
| IIEES SC | THKV | Z | IP | I | 2020-09-26 05:48:07 | 0.7 | y | 511 | 243 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-09-26 05:48:07 | -4.4 | n | 4 | 556 | 257 | ||
| IIEES SC | GHVR | Z | IP | I | 2020-09-26 05:48:14 | -0.2 | y | 578 | 227 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-09-26 05:48:19 | -0.4 | y | 622 | 142 | |||
| IIEES SC | QABG | N | IP | I | 2020-09-26 05:48:21 | 0.3 | y | 633 | 246 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-26 05:48:21 | -0.3 | y | 644 | 192 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-09-26 05:48:25 | 0.8 | y | 667 | 234 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-09-26 05:48:24 | -1.1 | y | 667 | 257 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-26 05:48:27 | -3.8 | n | 4 | 711 | 277 | ||
| IIEES SC | KHMZ | Z | IP | I | 2020-09-26 05:48:33 | 0.8 | y | 722 | 229 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-09-26 05:48:33 | 0.3 | y | 733 | 157 | |||
| IIEES SC | MEH | Z | IP | I | 2020-09-26 05:48:35 | 0.1 | y | 745 | 190 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-09-26 05:48:46 | -0.6 | y | 845 | 247 | |||
| IIEES SC | AZR | Z | IP | I | 2020-09-26 05:48:51 | -0.7 | y | 889 | 267 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-09-26 05:48:57 | 3.5 | n | 4 | 900 | 176 | ||
| IIEES SC | MRD | Z | IP | I | 2020-09-26 05:48:54 | -1.1 | y | 900 | 275 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-09-26 05:48:57 | 0.1 | y | 922 | 261 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-09-26 05:48:59 | 0.9 | y | 934 | 221 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-09-26 05:49:01 | -0.8 | y | 967 | 258 | |||
| IIEES SC | GNI | Z | IP | I | 2020-09-26 05:49:07 | -0.1 | y | 1000 | 283 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-09-26 05:49:08 | -0.1 | y | 1011 | 241 | |||
| IIEES SC | ZHSF | Z | IP | I | 2020-09-26 05:49:11 | 0.6 | y | 1034 | 155 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-09-26 05:49:19 | -0.2 | y | 1112 | 203 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-09-26 05:49:31 | 2.7 | n | 4 | 1178 | 179 | ||
| IIEES SC | GHVR | Z | IVmB_BB | 2020-09-26 05:49:06 | y | 1 | 578 | 227 | ||||
| IIEES SC | SHRT | Z | IVmB_BB | 2020-09-26 05:48:47 | y | 1 | 622 | 142 | ||||
| IIEES SC | QABG | Z | IVmB_BB | 2020-09-26 05:49:19 | y | 1 | 633 | 246 | ||||
| IIEES SC | YZKH | Z | IVmB_BB | 2020-09-26 05:49:12 | y | 1 | 644 | 192 | ||||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-09-26 05:48:57 | y | 1 | 667 | 234 | ||||
| IIEES SC | ZNJK | Z | IVmB_BB | 2020-09-26 05:48:27 | y | 1 | 667 | 257 | ||||
| IIEES SC | KHMZ | Z | IVmB_BB | 2020-09-26 05:49:22 | y | 1 | 722 | 229 | ||||
| IIEES SC | BSRN | Z | IVmB_BB | 2020-09-26 05:49:09 | y | 1 | 733 | 157 | ||||
| IIEES SC | MEH | Z | IVmB_BB | 2020-09-26 05:49:14 | y | 1 | 745 | 190 | ||||
| IIEES SC | SNGE | Z | IVmB_BB | 2020-09-26 05:49:36 | y | 1 | 845 | 247 | ||||
| IIEES SC | AZR | Z | IVmB_BB | 2020-09-26 05:48:55 | y | 1 | 889 | 267 | ||||
| IIEES SC | MRD | Z | IVmB_BB | 2020-09-26 05:49:08 | y | 1 | 900 | 275 | ||||
| IIEES SC | MAHB | Z | IVmB_BB | 2020-09-26 05:49:09 | y | 1 | 922 | 261 | ||||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-09-26 05:49:35 | y | 1 | 934 | 221 | ||||
| IIEES SC | SRSL | Z | IVmB_BB | 2020-09-26 05:49:06 | y | 1 | 967 | 258 | ||||
| IIEES SC | GNI | Z | IVmB_BB | 2020-09-26 05:49:16 | y | 1 | 1000 | 283 | ||||
| IIEES SC | ILBA | Z | IVmB_BB | 2020-09-26 05:50:02 | y | 1 | 1011 | 241 | ||||
| IIEES SC | ZHSF | Z | IVmB_BB | 2020-09-26 05:50:01 | y | 1 | 1034 | 155 | ||||
| IIEES SC | AHRM | Z | IVmB_BB | 2020-09-26 05:49:22 | y | 1 | 1112 | 203 | ||||
