Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2020-09-26 17:15:23.5 |
| Date & Time (Local) | 1399/7/5 20:45:23.5 |

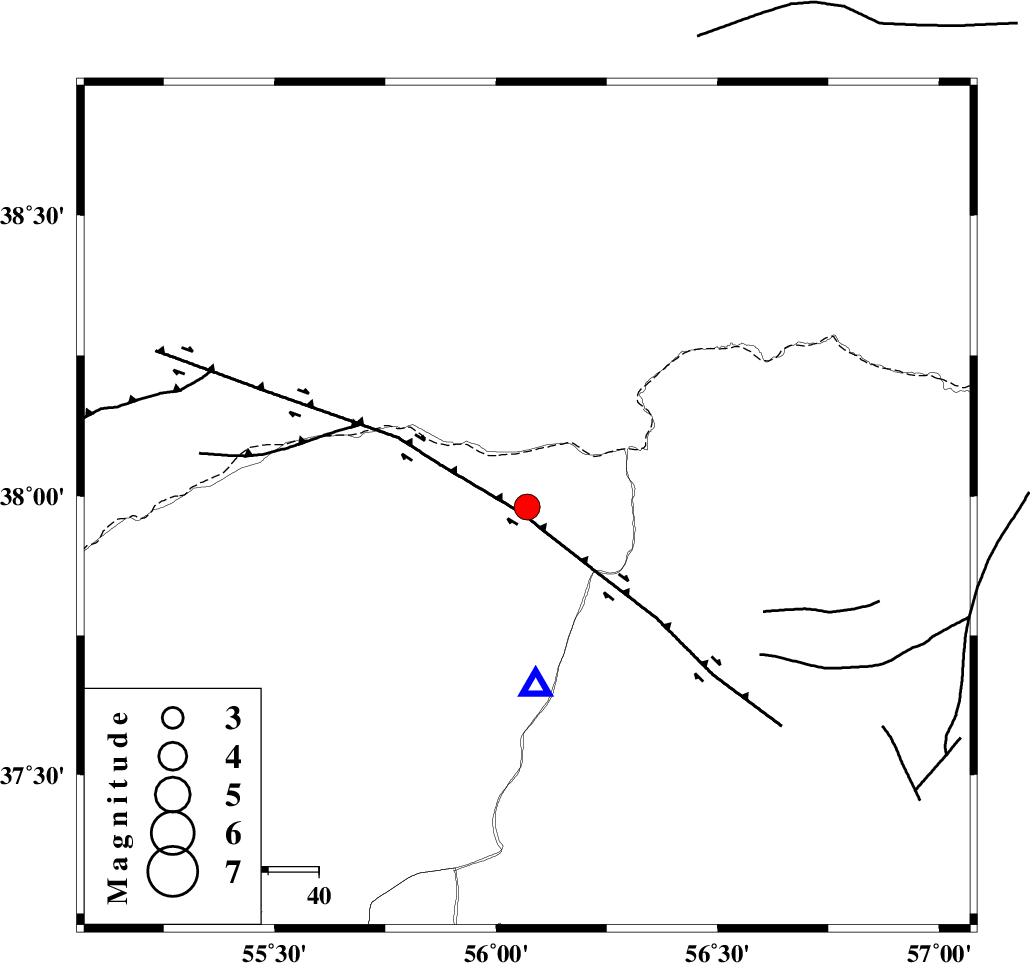

| Location | Lat:37.98 Lon: 56.07 |
| Region | Golestan Province, 84 km North-East of Kalaleh |
Nearest Cities |
|
| 13 km North East of Moravehtappeh, Golestan Province | |
| 18 km North West of Qazanqayeh, Golestan Province | |
| 35 km North West of Garmab, Khorasan(north) Province | |
| 40 km North East of Golidagh, Golestan Province | |
| 48 km North East of Karand, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 83 km | |
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 101 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 108 km | |
| Number of Phases | 23 |
| RMS | 0.6 |
| Number of Stations | 18 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157690 | IIEES SC | MRVT | Z | 7600 | 1 | 2020-09-26 17:15:37 | 2020-09-27 08:13:00 | n |
| 157691 | IIEES SC | BJRD | Z | 590 | 1 | 2020-09-26 17:16:09 | 2020-09-27 08:13:00 | n |
| 157692 | IIEES SC | ABGH | Z | 3.8 | 1 | 2020-09-26 17:16:23 | 2020-09-27 08:13:00 | n |
| 157693 | IIEES SC | SHRO | Z | 2.4 | 1 | 2020-09-26 17:17:20 | 2020-09-27 08:13:00 | n |
| 157694 | IIEES SC | SBZV | Z | 280 | 1 | 2020-09-26 17:16:47 | 2020-09-27 08:13:00 | n |
| 157695 | IIEES SC | GLO | Z | 1900 | 1 | 2020-09-26 17:16:44 | 2020-09-27 08:13:00 | n |
| 157696 | IIEES SC | ANJ | Z | 35 | 1 | 2020-09-26 17:17:04 | 2020-09-27 08:13:00 | n |
| 157697 | IIEES SC | KAGH | Z | 36 | 1 | 2020-09-26 17:17:26 | 2020-09-27 08:13:00 | n |
| 157698 | IIEES SC | DAMV | Z | 57 | 1 | 2020-09-26 17:17:29 | 2020-09-27 08:13:00 | n |
| 157699 | IIEES SC | TBJM | Z | 53 | 1 | 2020-09-26 17:17:54 | 2020-09-27 08:13:00 | n |
| 157700 | IIEES SC | TABS | Z | 35 | 1 | 2020-09-26 17:18:10 | 2020-09-27 08:13:00 | n |
| 157701 | IIEES SC | CHTH | Z | 20 | 1 | 2020-09-26 17:18:02 | 2020-09-27 08:13:00 | n |
| 157702 | IIEES SC | THKV | Z | 43 | 1 | 2020-09-26 17:18:03 | 2020-09-27 08:13:00 | n |
| 157703 | IIEES SC | SHRT | Z | 13 | 1 | 2020-09-26 17:18:53 | 2020-09-27 08:13:00 | n |
| 157704 | IIEES SC | SHRT | Z | 9.2 | 0.53 | 2020-09-26 17:17:03 | 2020-09-27 08:13:00 | n |
| 157705 | IIEES SC | YZKH | Z | 13 | 1 | 2020-09-26 17:18:53 | 2020-09-27 08:13:00 | n |
| 157706 | IIEES SC | YZKH | Z | 12 | 0.79 | 2020-09-26 17:17:19 | 2020-09-27 08:13:00 | n |
| 157707 | IIEES SC | GRMI | Z | 13 | 1 | 2020-09-26 17:18:13 | 2020-09-27 08:13:00 | n |
| 157708 | IIEES SC | GRMI | Z | 5 | 0.56 | 2020-09-26 17:17:00 | 2020-09-27 08:13:00 | n |
| 157709 | IIEES SC | BSRN | Z | 4.6 | 1 | 2020-09-26 17:19:22 | 2020-09-27 08:13:00 | n |
| 157710 | IIEES SC | BSRN | Z | 2.7 | 0.94 | 2020-09-26 17:17:13 | 2020-09-27 08:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | N | IS | I | 2020-09-26 17:15:36 | 1.5 | n | 4 | 33 | 178 | ||
| IIEES SC | MRVT | Z | IP | I | 2020-09-26 17:15:29 | -0.2 | y | 33 | 178 | |||
| IIEES SC | BJRD | N | IS | I | 2020-09-26 17:16:03 | 3.7 | n | 4 | 122 | 105 | ||
| IIEES SC | BJRD | Z | IP | I | 2020-09-26 17:15:43 | -0.6 | y | 122 | 105 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-09-26 17:15:52 | -0.8 | y | 177 | 219 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-26 17:15:58 | -0.5 | y | 222 | 181 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-09-26 17:15:59 | 0.3 | y | 222 | 142 | |||
| IIEES SC | GLO | Z | IP | I | 2020-09-26 17:16:04 | 0.3 | y | 255 | 231 | |||
| IIEES SC | AKL | Z | IP | I | 2020-09-26 17:16:07 | 0.6 | y | 278 | 123 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-09-26 17:16:15 | 1.1 | y | 344 | 215 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-09-26 17:16:16 | -0.5 | y | 366 | 109 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-09-26 17:16:27 | -0.1 | y | 444 | 235 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-09-26 17:16:32 | 0.8 | y | 489 | 128 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-26 17:16:33 | 0.4 | y | 489 | 169 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-09-26 17:16:33 | -0.5 | y | 500 | 242 | |||
| IIEES SC | THKV | Z | IP | I | 2020-09-26 17:16:36 | 0.8 | y | 511 | 244 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-09-26 17:16:47 | -0.4 | y | 611 | 142 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-09-26 17:16:50 | -0.1 | y | 633 | 192 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-09-26 17:17:00 | -0.4 | y | 722 | 277 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-09-26 17:17:02 | 0.5 | y | 722 | 157 | |||
| IIEES SC | AZR | Z | IP | I | 2020-09-26 17:17:19 | -3.2 | n | 4 | 889 | 268 | ||
| IIEES SC | MRD | Z | IP | I | 2020-09-26 17:17:20 | -4.1 | n | 4 | 911 | 275 | ||
| IIEES SC | GRMI | Z | IVmB_BB | 2020-09-26 17:17:38 | y | 1 | 722 | 277 | ||||
