Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2020-09-28 20:08:30.2 |
| Date & Time (Local) | 1399/7/7 23:38:30.2 |

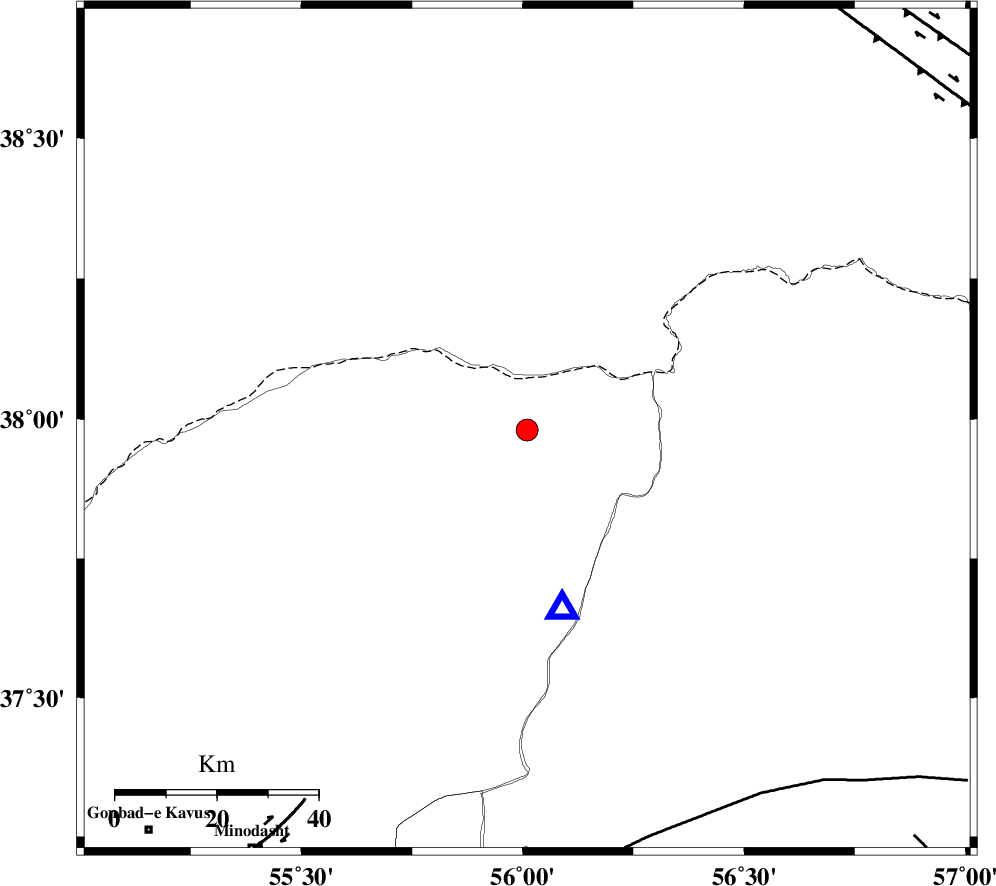

| Location | Lat:37.98 Lon: 56.01 |
| Region | Golestan Province, 81 km North-East of Kalaleh |
Nearest Cities |
|
| 10 km North of Moravehtappeh, Golestan Province | |
| 23 km North West of Qazanqayeh, Golestan Province | |
| 39 km North of Golidagh, Golestan Province | |
| 39 km North West of Garmab, Khorasan(north) Province | |
| 43 km North East of Karand, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 85 km | |
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 104 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 111 km | |
| Number of Phases | 9 |
| RMS | 0.7 |
| Number of Stations | 9 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 157966 | IIEES SC | MRVT | Z | 3800 | 1 | 2020-09-28 20:08:43 | 2020-09-29 09:40:00 | n |
| 157967 | IIEES SC | BJRD | Z | 140 | 1 | 2020-09-28 20:09:16 | 2020-09-29 09:40:00 | n |
| 157968 | IIEES SC | ABGH | Z | 7.5 | 1 | 2020-09-28 20:10:10 | 2020-09-29 09:40:00 | n |
| 157969 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-09-28 20:09:34 | 2020-09-29 09:40:00 | n |
| 157970 | IIEES SC | SBZV | Z | 85 | 1 | 2020-09-28 20:09:48 | 2020-09-29 09:40:00 | n |
| 157971 | IIEES SC | GLO | Z | 440 | 1 | 2020-09-28 20:09:55 | 2020-09-29 09:40:00 | n |
| 157972 | IIEES SC | KAGH | Z | 15 | 1 | 2020-09-28 20:10:35 | 2020-09-29 09:40:00 | n |
| 157973 | IIEES SC | TABS | Z | 11 | 1 | 2020-09-28 20:11:17 | 2020-09-29 09:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | IP | I | 2020-09-28 20:08:36 | -0.5 | y | 33 | 169 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-09-28 20:08:50 | -1.4 | y | 122 | 104 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-09-28 20:08:58 | -0.4 | y | 177 | 218 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-09-28 20:09:06 | 0.6 | y | 222 | 180 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-09-28 20:09:07 | 0.3 | y | 222 | 141 | |||
| IIEES SC | GLO | Z | IP | I | 2020-09-28 20:09:09 | -0.2 | y | 255 | 230 | |||
| IIEES SC | AKL | Z | IP | I | 2020-09-28 20:09:15 | 0.6 | y | 289 | 122 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-09-28 20:09:24 | 0.6 | y | 366 | 108 | |||
| IIEES SC | TABS | Z | IP | I | 2020-09-28 20:09:40 | 0.6 | y | 489 | 168 | |||
